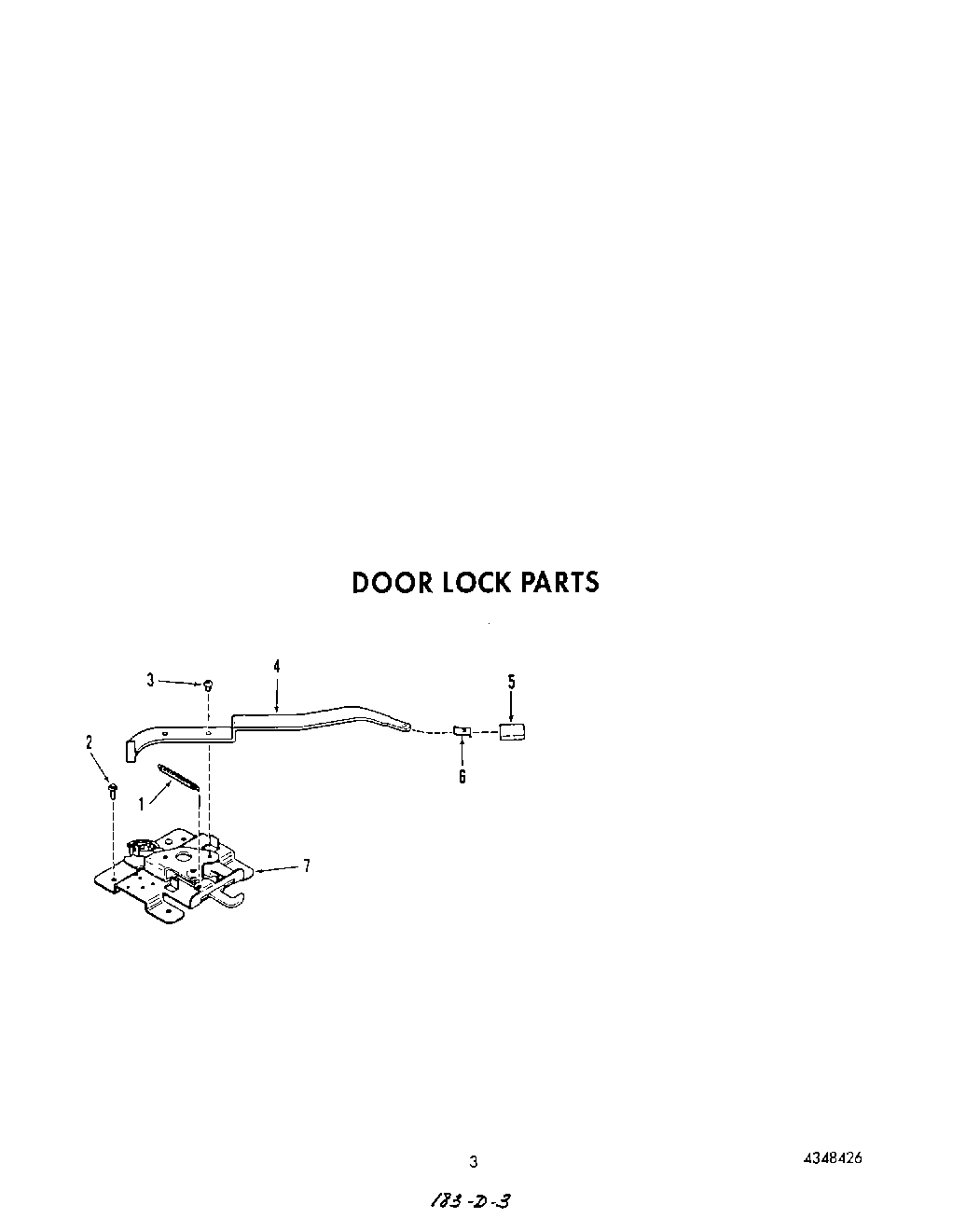

B9458B3 03 – DOOR LOCK
Products
| Position | Product |
|---|---|
| 1 | Spring |
| 2 | W10850756 Whirlpool Screw |
| 3 | Screw, No.10-24 x 1/4 |
| 4 | Handle, Lock |
| 5 | Knob, Lock |
| 6 | Clip |
| 7 | Lock Assembly, (Inc`s Illus. No.2) |
B9458B3 03 – DOOR LOCK
| Position | Product |
|---|---|
| 1 | Spring |
| 2 | W10850756 Whirlpool Screw |
| 3 | Screw, No.10-24 x 1/4 |
| 4 | Handle, Lock |
| 5 | Knob, Lock |
| 6 | Clip |
| 7 | Lock Assembly, (Inc`s Illus. No.2) |
