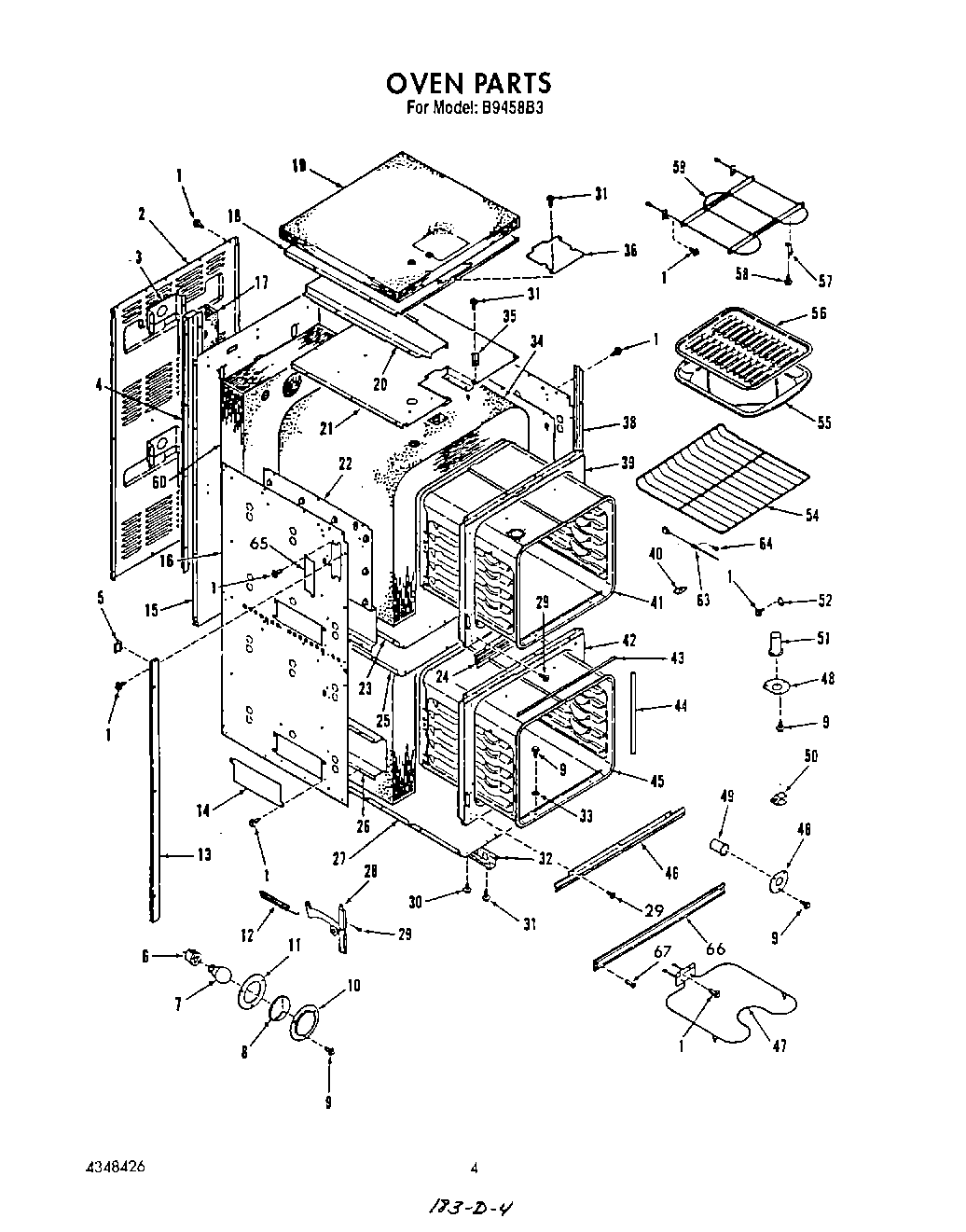

B9458B3 04 – LIT/OPTIONAL , OVEN

Products

Position	Product
1	SCREW
2	Back, Cabinet
3	Retainer, Light Insulation, Upper/Lower Ovens
4	Vent Box, Rear
5	Spacer (6)
6	W10856866 Whirlpool Light Socket
7	RANGE ONLY 40W 120V APPL BULB
8	Lens, Oven Light
9	Screw, No.10-32 x 17/32
10	Retainer, Lens
11	Gasket, Lens
12	Spring, Oven Door (Lt/Rt) (Lower Oven)
12	Spring, Oven Door (Lt/Rt) (Upper Oven)
13	Side Trim (Lt/Rt)
14	Cover Plate (4)
15	Back
16	Cabinet Side, (Lt/Rt)
17	Insulation, Lamp (Upper/Lower)
18	Retainer, Cabinet Top Insulation
19	Insulation, Cabinet Top
20	Vent Box
21	Retainer, Oven Top Insulation
22	Retainer, Oven Side Insulation
23	Retainer, Bottom Insulation (Upper Oven)
24	Trim, Center Front
25	Retainer, Oven Top Insulation, (Lower Oven)
26	Retainer, Door Spring Insulation (Lt/Rt)
27	Cabinet Bottom
28	Hinge (Left (2))
28	Hinge (Right (2))
29	Screw No.10-32×5/8
30	Screw No.10-32×1/4
31	W10850756 Whirlpool Screw
32	Channel, Lt/Rt
33	Washer
34	Insulation-Top & Sides (1 Pc)
35	Bracket (2)
36	Lock Cover Plate
38	Raceway
39	Front Frame (Upper Oven)
40	Cover
41	Oven Body (Upper Oven)
42	Frame, Front
43	Seal, Door Top (Lower Oven)
44	Seal, Door Sides (Lower) Rt/Lt
45	Oven Body, Lower
46	WPL 4337706
47	WPL 4335541
48	WPL 4335624
49	WPL 4327463
50	Clip, Thermostat Bulb
51	Vent Tube
52	WPL 4324951
54	WPL 4335557
56	4396923 Whirlpool Broil Pan Set Gray Porcelain
57	WPL 4334358
58	Screw, No.10 x 3/8
59	WPL 4335542
60	WPL 4354811
63	Sensor
64	Screw
65	WPL 4338202
66	WPL 4338255
67	WPL 4348175
67	WPL 4348176
67	Wire Harness (Sensor)
67	Flag Terminal
67	Wire Harness (3/16“)
67	WP285432 Whirlpool Terminal
67	Thermal Fuse
67	WPL 4337729
67	WPL 4337736
67	WPL 4348426
