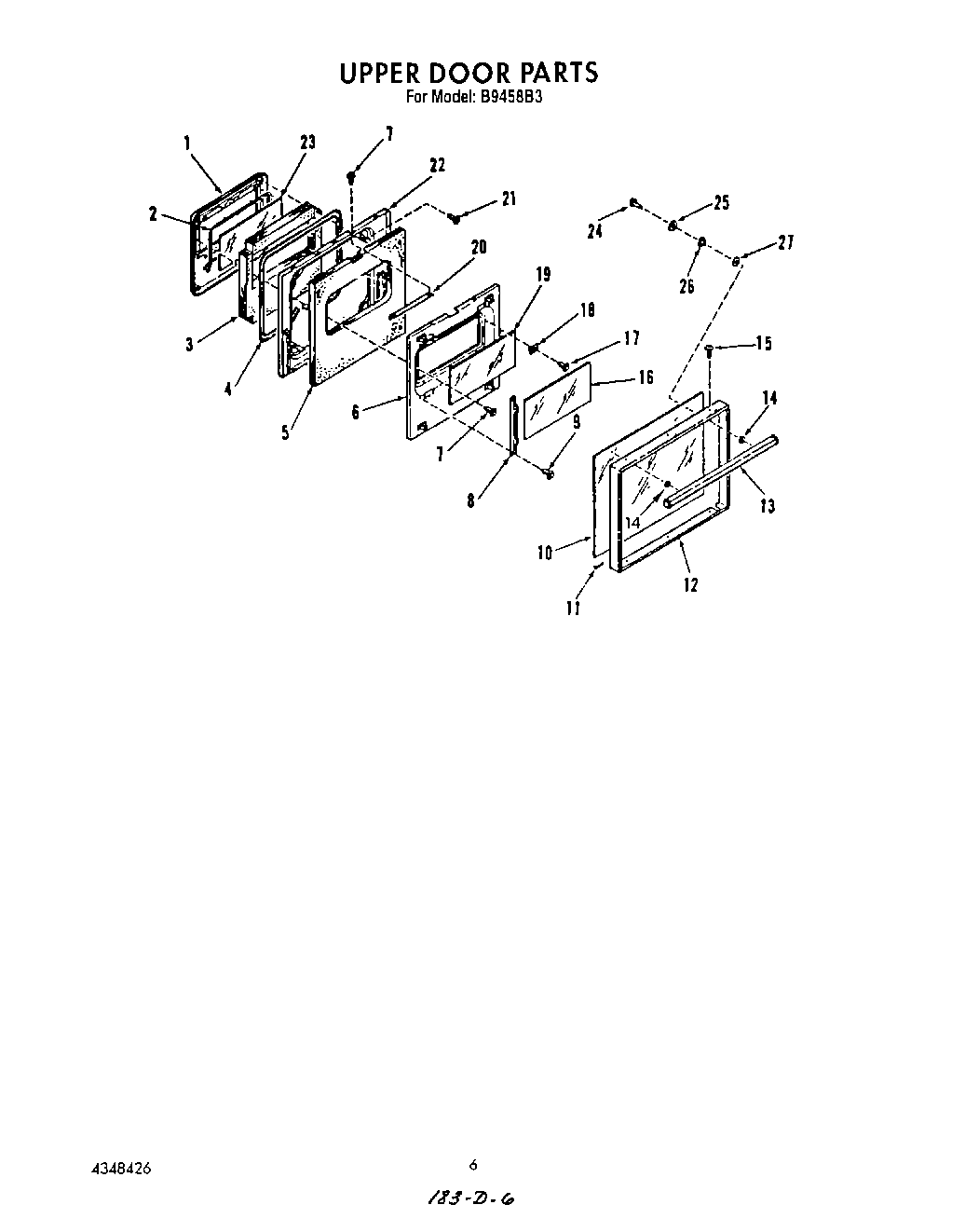

B9458B3 05 – UPPER DOOR

Products

Position	Product
1	Plug, Door Lining
2	Seal, Inner Glass
3	Insulation
4	Gasket, Oven Door
5	Insulation
6	Retainer, Insulation
8	Retainer, Door Glass (Lt/Rt)
9	SCREW
10	Door Glass, Outer
11	Cushion
12	Door Frame
13	Handle
14	Spacer, Dr. Handle
15	Screw 6-20×3/8
16	Glass, Intermediate
17	Screw, No.10-32 x 17/32
18	Retainer, Glass
19	Glass, Inner
20	Stiffener, Lining
21	W10850756 Whirlpool Screw
22	Lining
23	Glass-Inner Door
24	WP999367 Whirlpool Refrigerator Screw
25	Washer
26	Spacer, Glass Door
27	Washer, Fiber
