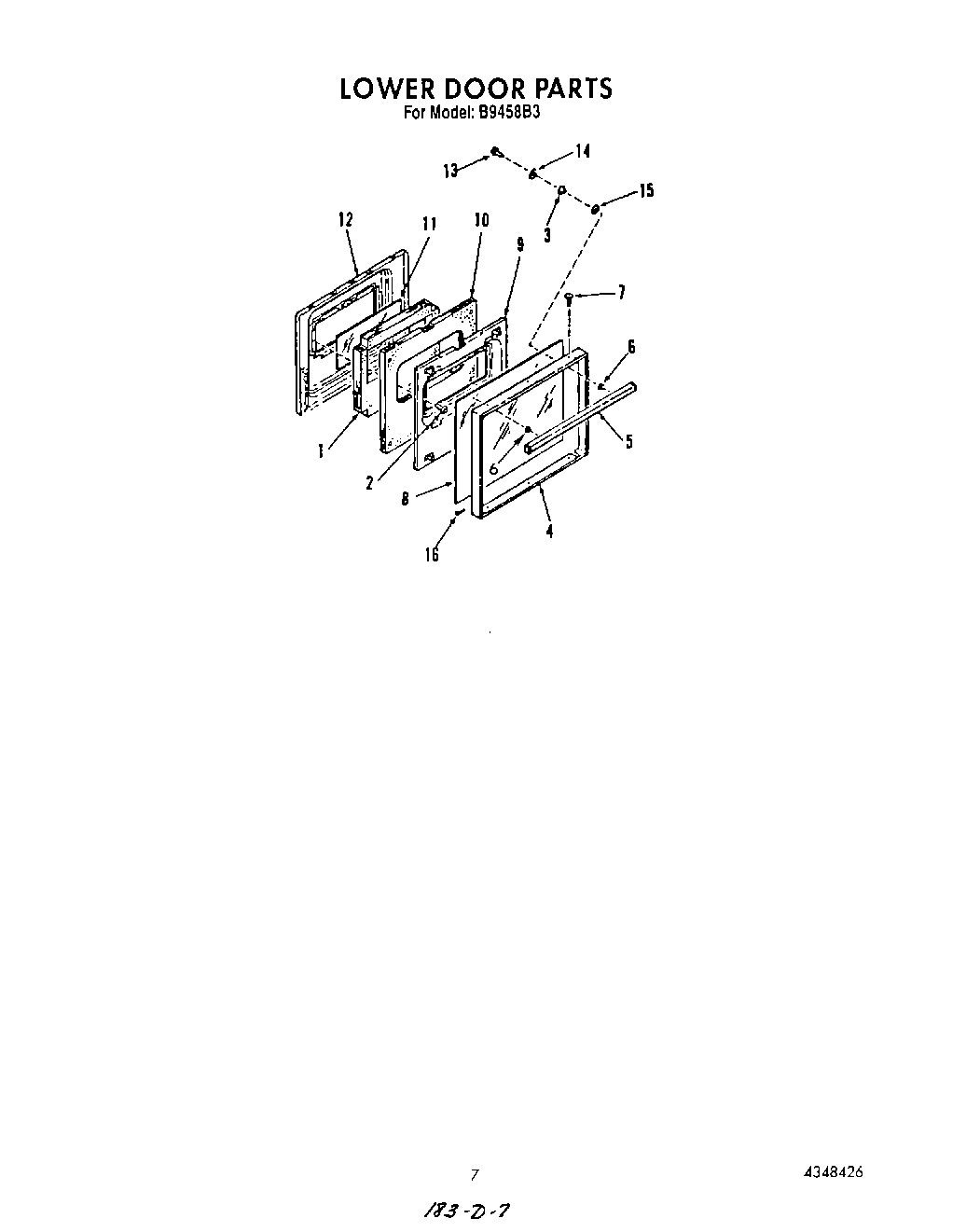

B9458B3 06 – LOWER DOOR

Written by

Products

Position	Product
1	Insulation
2	W10850756 Whirlpool Screw
3	Spacer, Glass Door
4	Door Frame
5	Handle
6	Spacer, Dr. Handle
7	Screw 6-20×3/8
8	Door Glass, Outer
9	Retainer, Insulation
10	Insulation
11	Glass, Inner
12	Lining
13	WP999367 Whirlpool Refrigerator Screw
14	Washer
15	Washer, Fiber
16	Cushion
