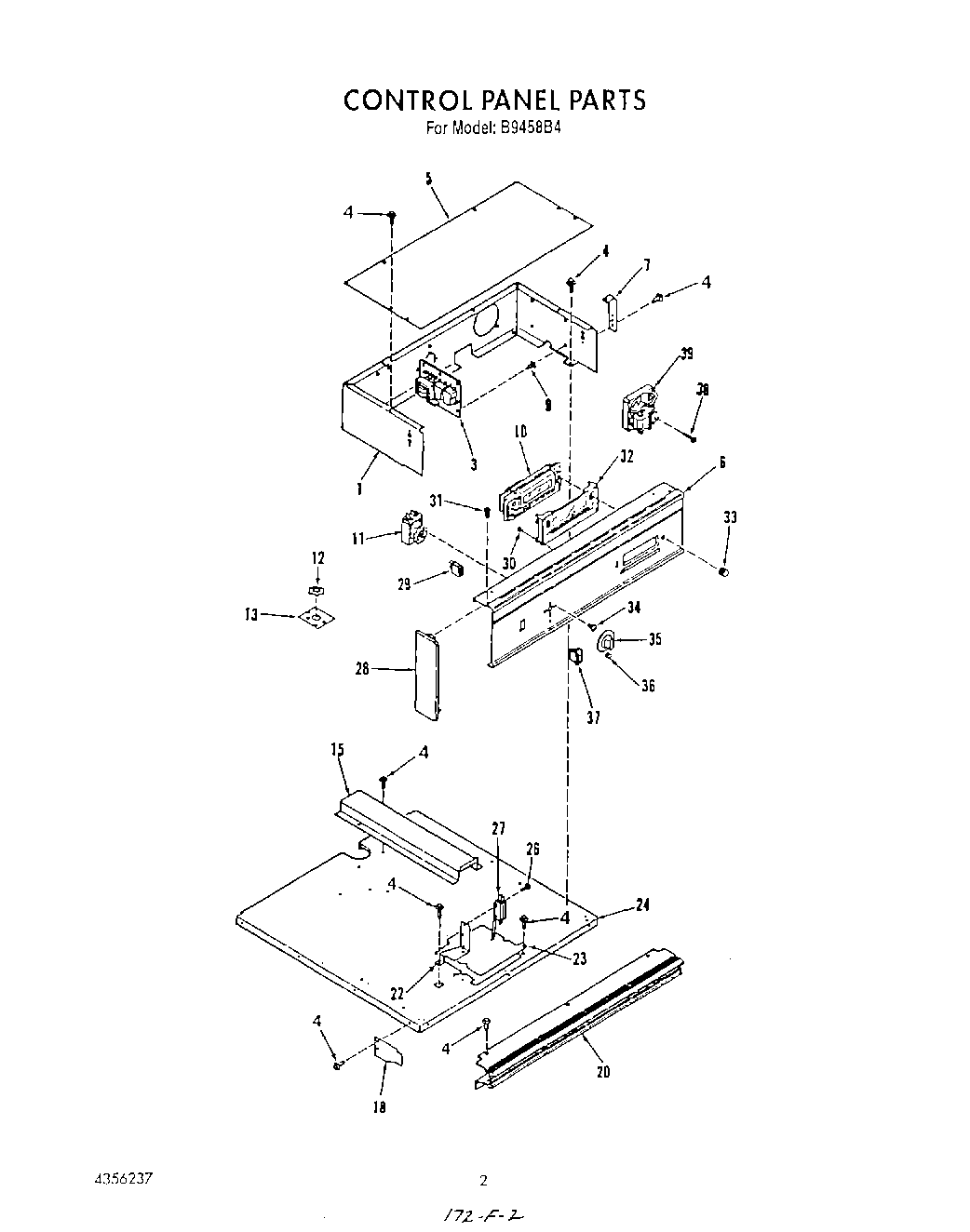

B9458B4 02 – CONTROL PANEL

B9458B4 02 – CONTROL PANEL

Written by

in

B9458B4 02 – CONTROL PANEL

Products

PositionProduct
1Control Housing
3Relay, Circuit Board
4W10850756 Whirlpool Screw
5Cover
6Control Panel
7Bracket
9Spacer
10Control, Clock/Oven
11Thermostat
12Nut, Lock
13Plate, Service
15Cover, Wire
18Heat Shield, (Lt/Rt)
20Trim, Control Panel
22Bracket, Micro Switch
23Lock Cover Plate
24Top, Cabinet
26Screw No.6-32×7/8
27Micro Switch, Lock
28End Cap (Right)
28End Cap (Left)
29Indicator Light (Oven Unit)
30Screw No.6-32×3/8
31Screw, No.10-32 x 1/2
32Clock Lens Asm.
33Knob, Clock
34Screw
35Knob, Thermostat
36WP9750343 Whirlpool Light Lens
37WP4314961 Whirlpool Lite Switch
38Screw No.10-32×1/4
39Fan Assembly
