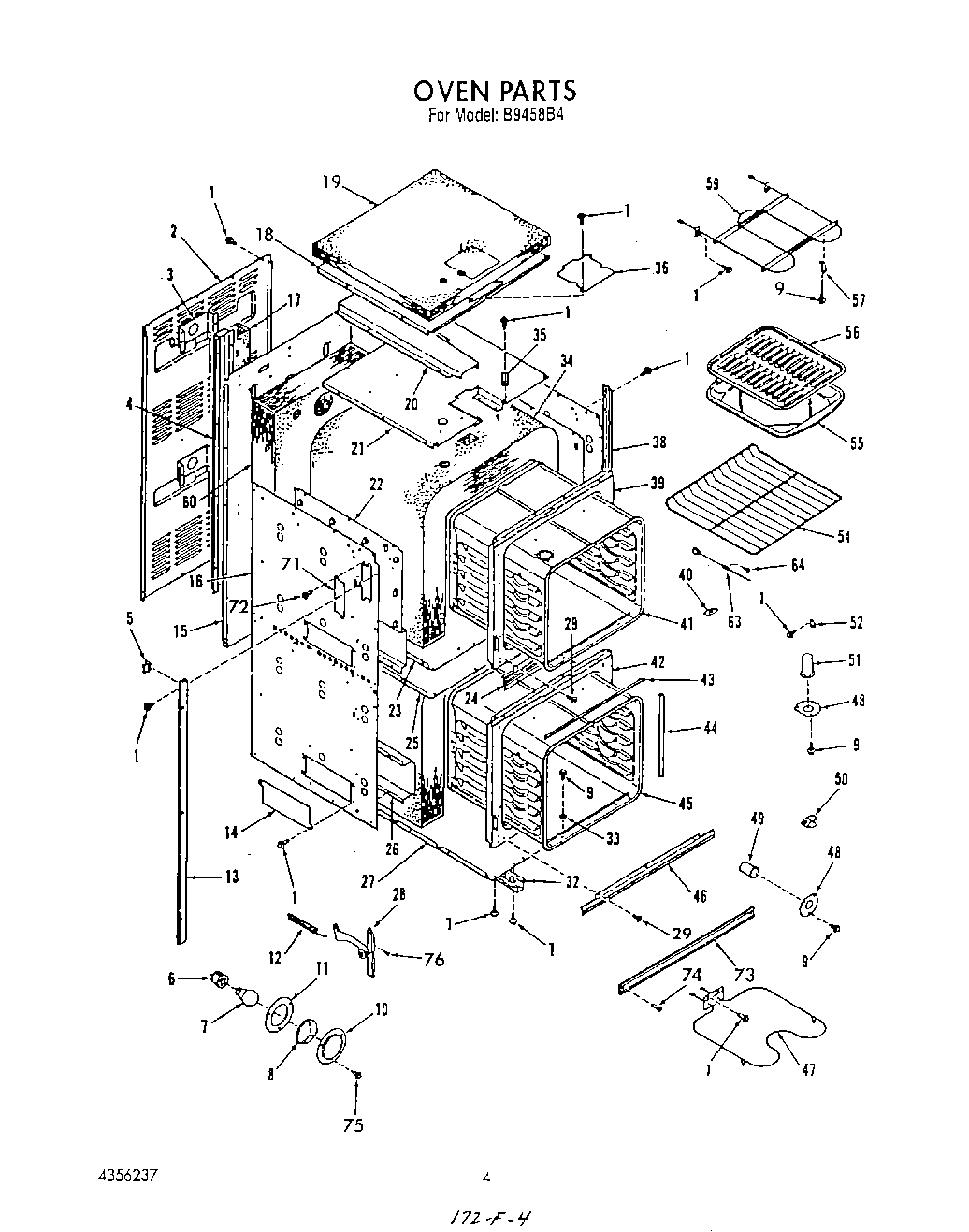

B9458B4 04 – OVEN

Products

Position	Product
3	Retainer, Light Insulation, Upper/Lower Ovens
4	Vent Box, Rear
5	Spacer (6)
6	W10856866 Whirlpool Light Socket
7	RANGE ONLY 40W 120V APPL BULB
8	Lens, Oven Light
9	WP308685 Whirlpool Microwave Screw
10	Retainer, Lens
11	Gasket, Lens
12	Spring, Oven Door (Lt/Rt) (Lower Oven)
12	Spring, Oven Door (Lt/Rt) (Upper Oven)
13	Side Trim (Lt/Rt)
14	Cover Plate (4)
15	Back
16	Cabinet Side, (Lt/Rt)
17	Insulation, Lamp (Upper/Lower)
18	Retainer, Cabinet Top Insulation
19	Insulation, Cabinet Top
20	Vent Box
21	Retainer, Oven Top Insulation
22	Retainer, Oven Side Insulation
23	Retainer, Bottom Insulation (Upper Oven)
24	Trim, Center Front
25	Retainer, Oven Top Insulation, (Lower Oven)
26	Retainer, Door Spring Insulation (Lt/Rt)
27	Cabinet Bottom
28	Hinge (Left (2))
28	Hinge (Right (2))
29	Screw, Trim
32	Channel, Bottom Cabinet (Lt/Rt)
33	Washer
34	Insulation, Top & Sides (1 Pc) (Upper/Lower)
35	Bracket (2)
36	Lock Cover Plate
38	Raceway
39	Front Frame (Upper Oven)
40	Cover
41	Oven Body (Upper Oven)
42	Front Frame (Lower Oven)
43	Seal, Door Top (Lower Oven)
44	Seal, Door Sides (Lower) Rt/Lt
45	Oven Body, Lower
46	Tr
47	WPL 4335541
48	WPL 4335624
49	WPL 4335954
50	Clip, Thermostat Bulb
51	Vent Tube
52	WPL 4324951
54	WPL 4335557
56	4396923 Whirlpool Broil Pan Set Gray Porcelain
57	WPL 4334358
59	WPL 4335542
60	WPL 4337724
63	Sensor
64	Screw
71	WPL 4338202
72	W10850756 Whirlpool Screw
73	WPL 4338255
74	WPL 4337729
75	Screw No.10 x 3/4
76	WPL 4337736
76	WPL 4342975
76	Screw
76	Wire Harness (Sensor)
