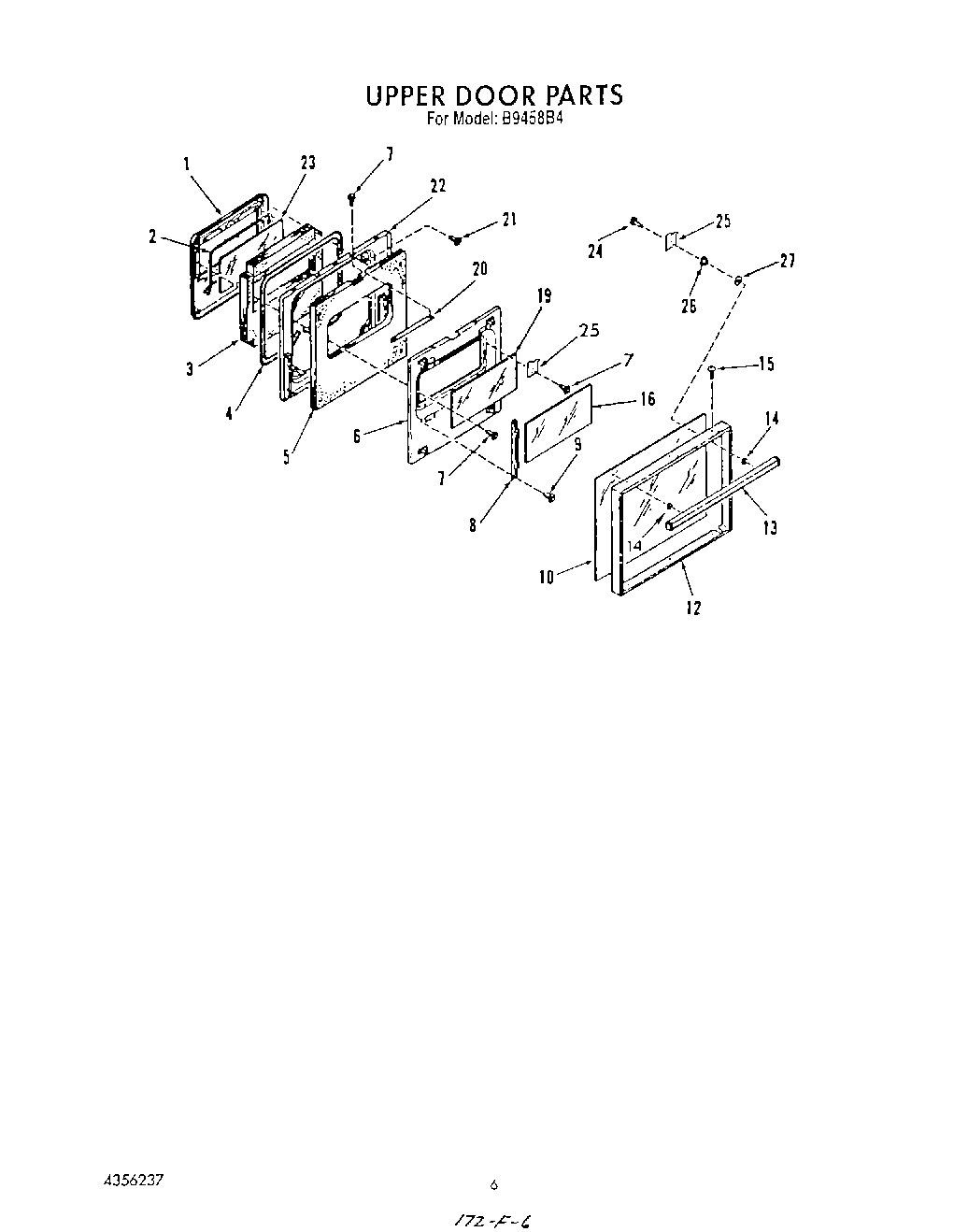

B9458B4 05 – UPPER DOOR

B9458B4 05 – UPPER DOOR

Written by

in

B9458B4 05 – UPPER DOOR

Products

Position	Product
1	Plug, Door Lining
2	Seal, Inner Glass
3	Insulation
4	Gasket, Oven Door
5	Insulation
6	Retainer, Insulation
7	Screw, No.10-32 x 17/32
8	Retainer, Door Glass (Lt/Rt)
10	Door Glass, Outer
12	Door Frame
13	Handle
14	Spacer, Dr. Handle
15	Screw No.6-20×5/16
16	Glass, Intermediate
19	Glass, Inner
20	Support, Lining
21	W10850756 Whirlpool Screw
22	Lining
23	Glass, Inner
24	Screw, No.10-32 x 3/4
25	Retainer
26	Spacer, Glass Door
27	Washer, Fiber
