B9607^0 02 – CONTROL PANEL

B9607^0 02 – CONTROL PANEL

Written by

in

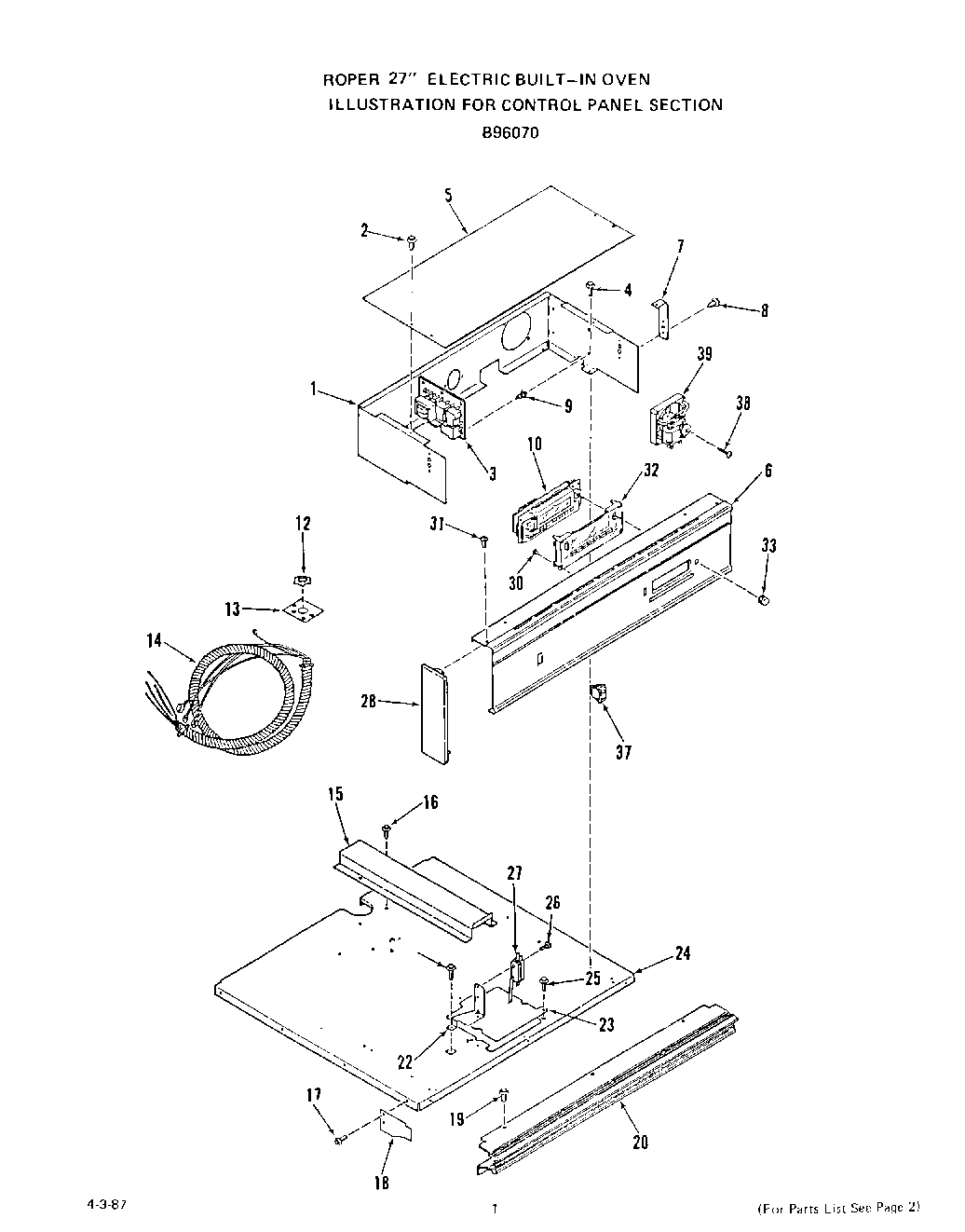

B9607^0 02 – CONTROL PANEL

Products

Position	Product
1	Trim Control Panel
3	Circuit Board w/Relay
5	Top Cover-Housing
6	Panel Control
7	Bracket
9	Spacer PCB
10	Clock/Oven Control
12	Nut (For Key 45)
13	Plate (For Key 45)
14	Harness Conduit Asm.
15	Wire Cover
16	Screw 10 – 32 x 7/16“
18	Heat Shield (Lt. or Rt.)
19	WP112432 Whirlpool Nut Assembly
20	Trim, Control Panel
21	Screw 10-16×7/16“
22	Bracket-Micro Switch
23	Cover Plate Lock
24	Cabinet Top
25	WPL 295850
26	Screw 6-32×7/8“
27	Micro Switch-Lock
28	Left
28	Right
28	End Cap
30	Screw 6-32×5/16“
31	Screw 10-32×1/2“
32	Clock Lens
33	Clock/Oven Control Knob
37	Switch-Oven Light
38	Screw 10-32×1“
39	Fan Asm
