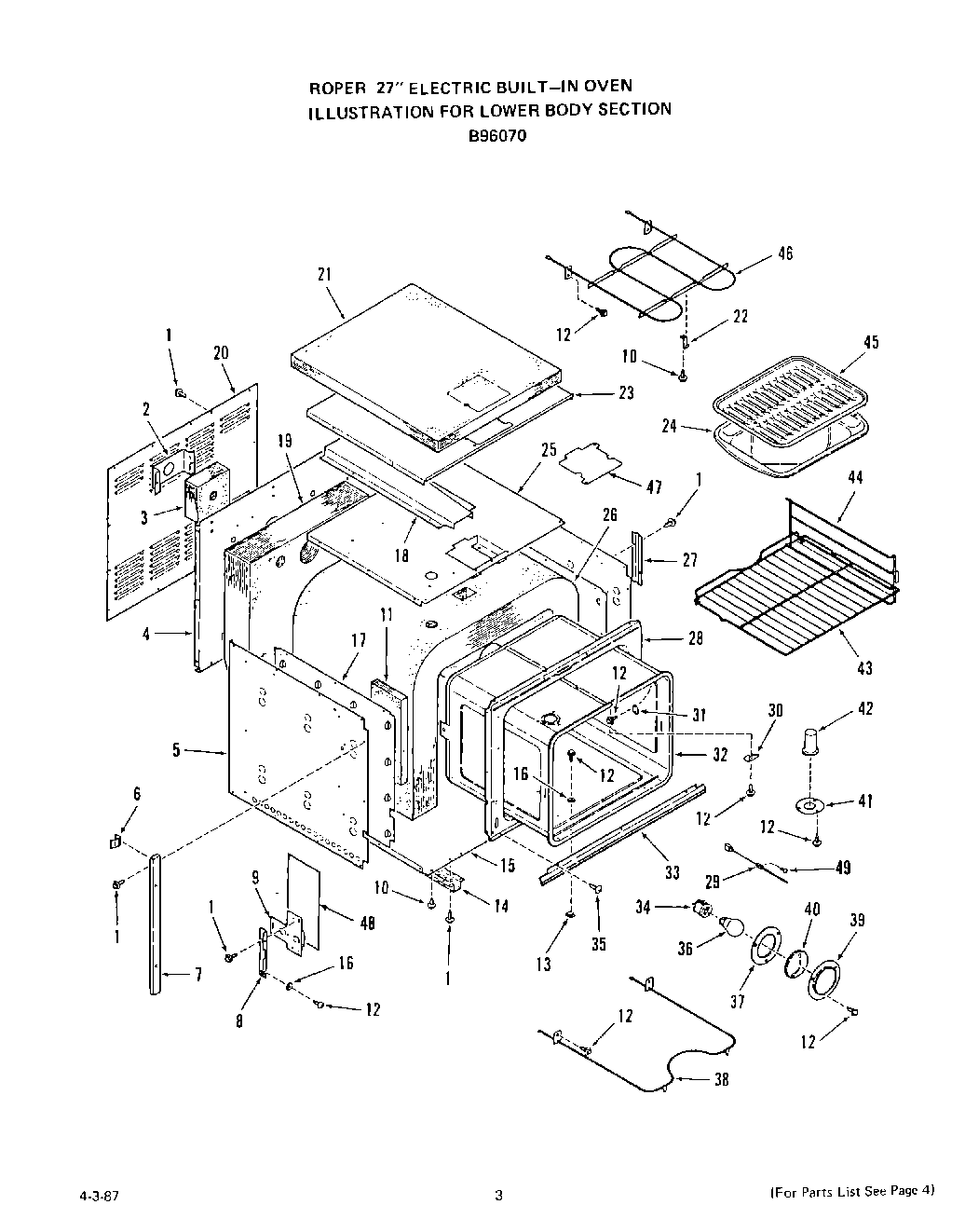

| 1 | WP112432 Whirlpool Nut Assembly |
| 2 | Insulation Retainer-Oven Light |
| 3 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 4 | Main Back |
| 5 | Right |
| 5 | Left |
| 5 | Cabinet Side |
| 6 | Spacer (4 Req) |
| 7 | Side Trim-Lt. or Rt. |
| 8 | Hinge Angle-Lt. or Rt. |
| 9 | Hinge Box Asm. Lt or Rt |
| 10 | Screw 10 - 32 x 1/4`` |
| 11 | Insulation (Lt. or Rt.) |
| 12 | Screw 10 - 32 x 17/32`` |
| 13 | Speed Nut 10-32 |
| 14 | Bottom Channel-Lt. or Rt. |
| 15 | Cabinet Bottom |
| 16 | Washer |
| 17 | Insulation Retainer-Oven Side (lt. or Rt.) |
| 18 | Top Oven Vent Box |
| 19 | Insulation-Oven Back & Bottom |
| 20 | Cabinet Back |
| 21 | Insulation-Cabinet Top |
| 22 | Broiler Element Support |
| 23 | Insulation Retainer-Cabinet Top |
| 24 | WPL 331592 |
| 25 | Insulation Retainer-Oven Top |
| 26 | Insulation Oven Top & Sides (1 Piece) |
| 27 | WPL 325532 |
| 28 | Front Frame |
| 29 | Sensor |
| 30 | Cover |
| 31 | Cover Plate-Thermostat Bulb |
| 32 | Oven Body |
| 33 | Lower Trim |
| 34 | Holder-Oven Light Bulb |
| 35 | Screw 10-32 x 5/8`` |
| 36 | Oven Lamp Bulb |
| 37 | Gasket-Lens |
| 38 | Bake Element |
| 39 | Retainer-Oven Light Lens |
| 40 | Lens-Oven Light |
| 41 | Oven Vent Clamp |
| 43 | Oven Rack (2 Req) |
| 44 | Oven Rack Guide-Rt. or Lt. |
| 45 | WPL 326297 |
| 46 | Broiler Element |
| 47 | Cover Plat |
| 48 | WPL 114300 |
| 49 | Screw |
