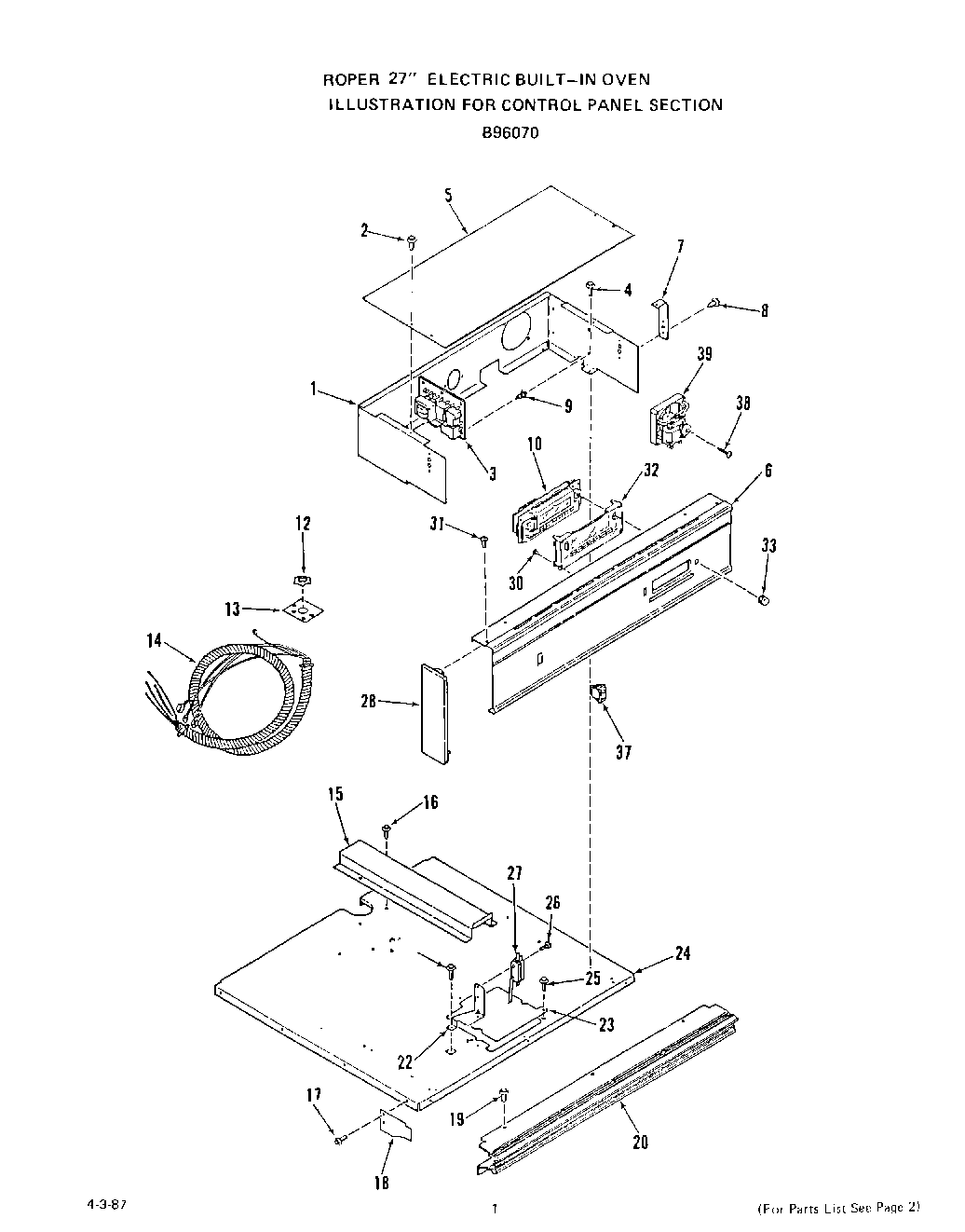

B9607X0 02 – CONTROL PANEL

B9607X0 02 – CONTROL PANEL

Written by

in

B9607X0 02 – CONTROL PANEL

Products

PositionProduct
1Trim Control Panel
3Circuit Board w/Relay
5Top Cover-Housing
6Panel Control
7Bracket
9Spacer PCB
10Clock/Oven Control
12Nut (For Key 45)
13Plate (For Key 45)
14Harness Conduit Asm.
15Wire Cover
16Screw 10 – 32 x 7/16“
18Heat Shield (Lt. or Rt.)
19WP112432 Whirlpool Nut Assembly
20Trim, Control Panel
21Screw 10-16×7/16“
22Bracket-Micro Switch
23Cover Plate Lock
24Cabinet Top
25WPL 295850
26Screw 6-32×7/8“
27Micro Switch-Lock
28Right
28Left
28End Cap
30Screw 6-32×5/16“
31Screw 10-32×1/2“
32Clock Lens
33Clock/Oven Control Knob
37Switch-Oven Light
38Screw 10-32×1“
39Fan Asm
