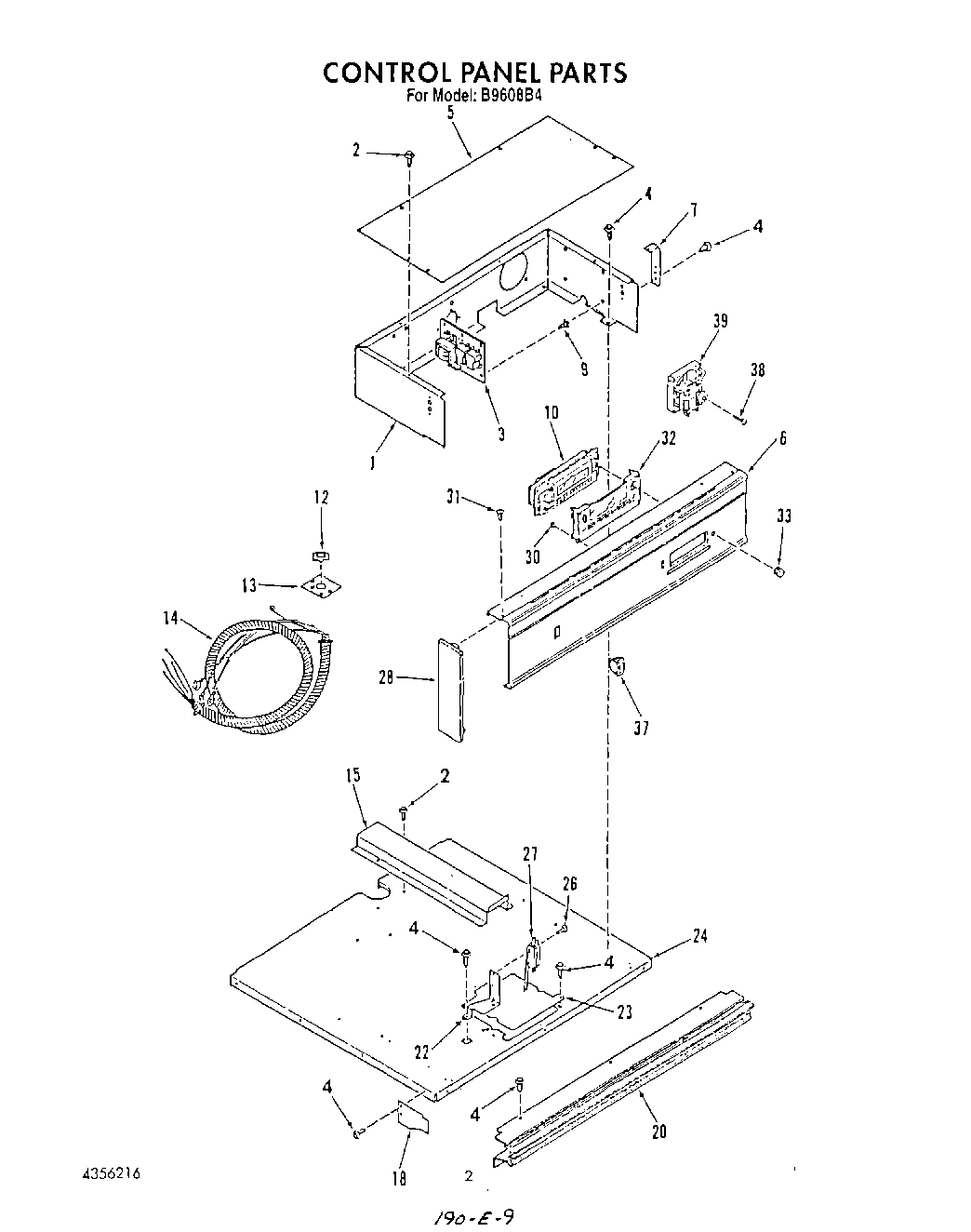

B9608B4 02 – CONTROL PANEL

Products

Position	Product
1	Housing, Control
2	W10850756 Whirlpool Screw
3	Relay, Circuit Board
5	Cover
6	Control Panel (White Model)
6	Control Panel (Black Model)
7	Bracket
9	Spacer
10	Control, Clock/Oven
12	Nut, Lock
13	Plate, Service
14	Harness-Conduit
15	Cover, Wire
18	Heat Shield, (Lt/Rt)
20	Trim-Control Panel (White Model)
20	Trim-Control Panel (Black Model)
22	Bracket, Micro Switch
23	Cover Plate, Lock
24	Top, Cabinet
26	Screw No.6-32x7/8
27	Micro Switch, Lock
28	End Cap (Right)
28	End Cap (Left)
28	End Cap (Left-White)
28	End Cap (Right-White)
30	Screw
31	Screw, No.10-32 x 1/2
31	Screw (White Model)
32	Clock Lens Asm.
33	Knob, Clock
33	Knob, Clock (White Model)
37	WP4314961 Whirlpool Lite Switch
37	Switch (White Model)
38	Screw No.10-32x1/4
39	Fan Assembly
