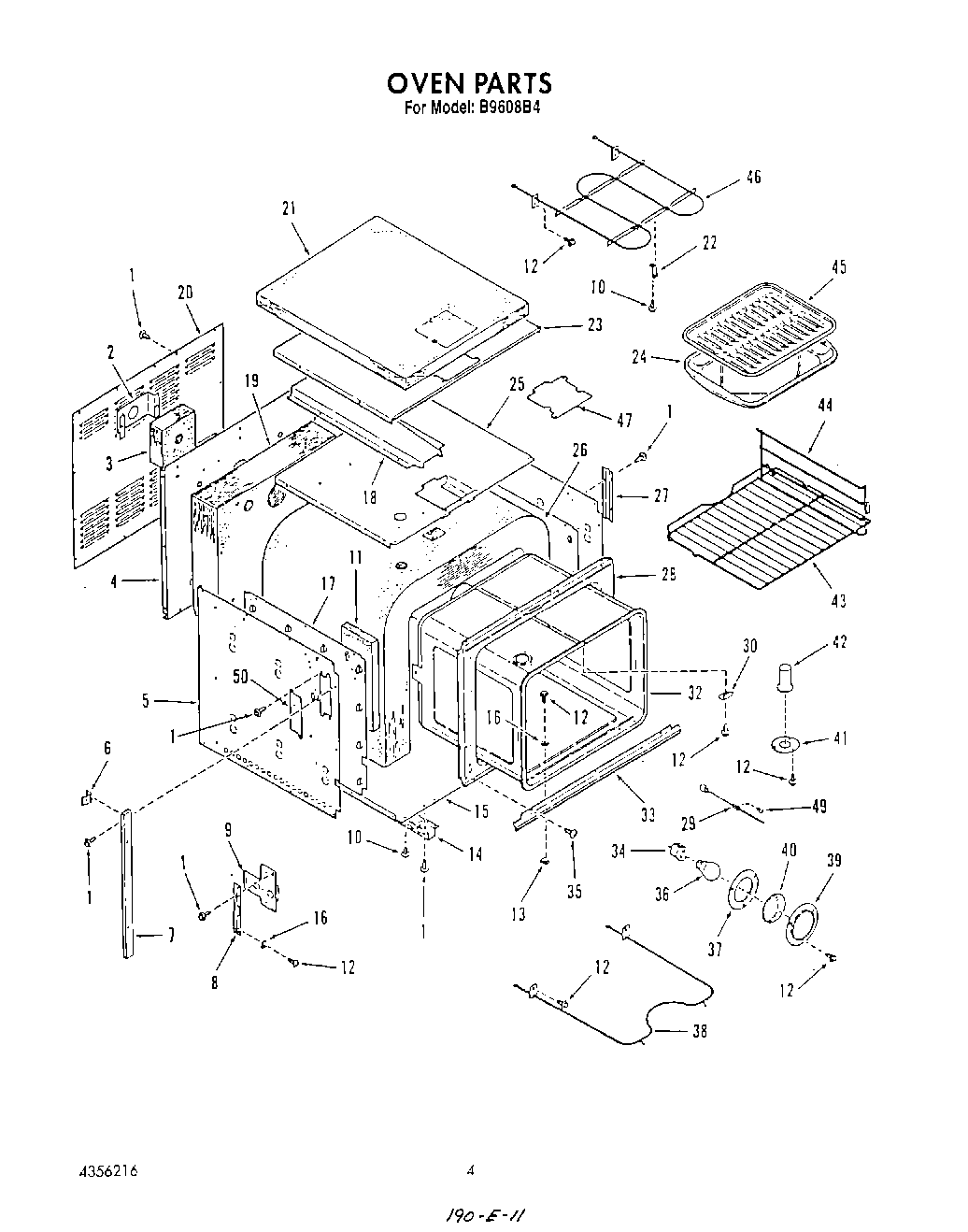

B9608B4 04 – OVEN

Products

Position	Product
1	W10850756 Whirlpool Screw
2	Retainer, Light Insulation, Upper/Lower Ovens
3	Insulation, Lamp (Upper/Lower)
4	Back, Main
5	Side, Cabinet (Right)
5	Side, Cabinet (Left)
6	Spacer (4)
7	Side Trim, Lt/Rt (Black Model)
7	Side Trim, Lt/Rt (White Model)
8	Angle, Hinge (Lt/Rt)
9	Hinge Box Assembly Lt/Rt
10	Screw, No.10 x 3/8
11	WPL 4352036
12	Screw, No.10-32 x 17/32
13	Speed Nut No.10-32
14	Channel, Lt/Rt
15	Bottom, Cabinet
16	Washer
17	Retainer, Insul.-Side (Lt/Rt)
18	Vent, Oven Top
19	Insulation, Back and Bottom
20	Back, Cabinet
21	Insulation Cabinet Top
22	WPL 4334358
23	Retainer, Top Insulation
25	Retainer, Oven Top Insulation
26	Insulation, Top & Sides (1 Pc) (Upper/Lower)
27	Bracket (2)
28	Frame, Front
29	Sensor
30	Cover
32	Oven Body
33	Lower Trim (Black Model)
33	Lower Trim (White Model)
34	W10856866 Whirlpool Light Socket
35	Screw, Trim
36	RANGE ONLY 40W 120V APPL BULB
37	Gasket, Lens
38	Element, Bake
39	Retainer, Lens
40	Lens, Oven Light
41	WPL 4335624
42	Vent Tube
43	Oven Rack (2)
44	Guide-Oven Rack (Lt/Rt)
45	4396923 Whirlpool Broil Pan Set Gray Porcelain
46	WP4334925 Whirlpool Broil Element
47	Lock Cover Plate
49	Screw
50	WPL 4338202
