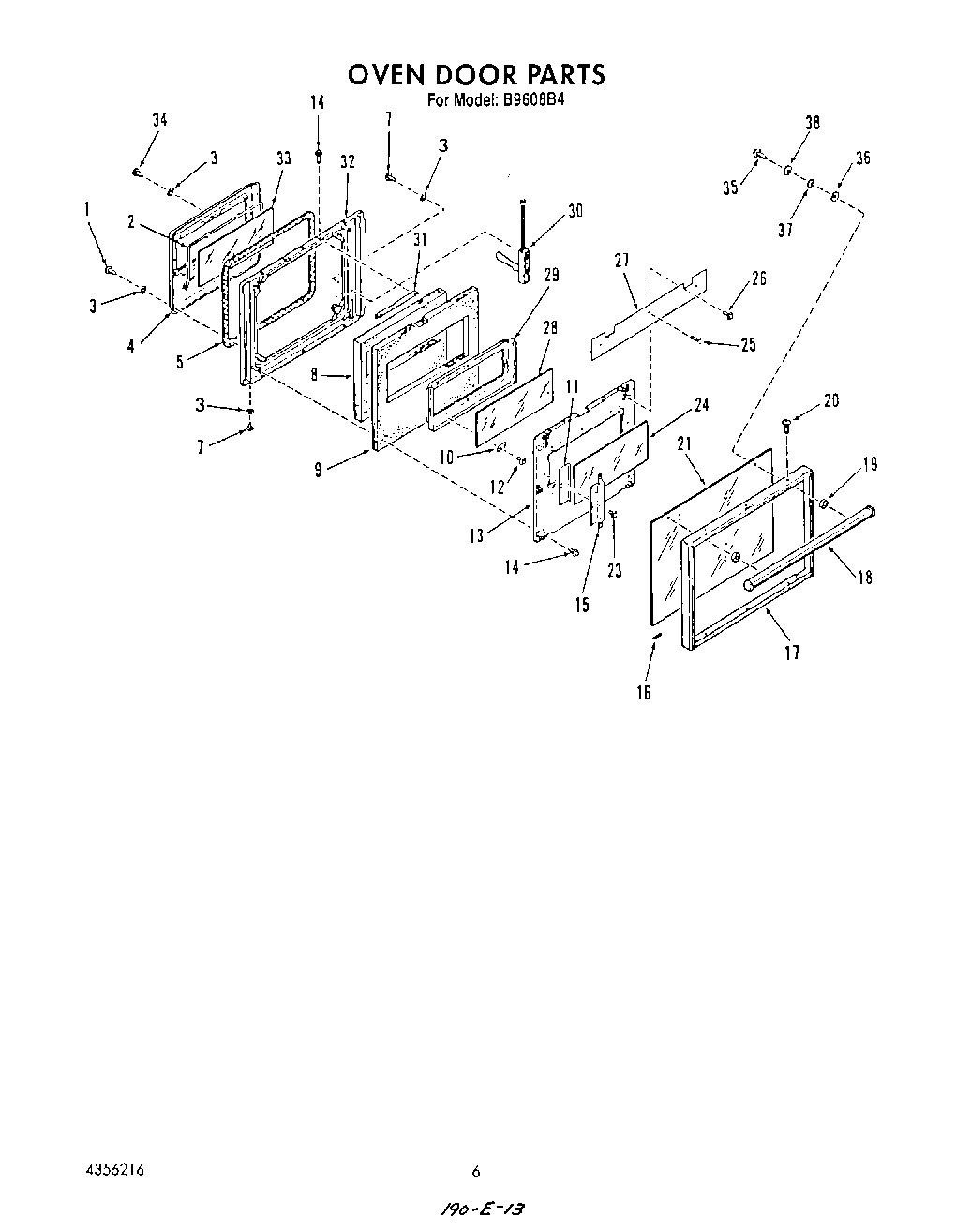

B9608B4 06 – OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
1	WP308685 Whirlpool Microwave Screw
2	Seal, Inner Glass
3	Washer
4	Plug-Oven Door
5	Seal-Oven Door
7	Screw No.10-32×3/8
8	Insulation-Oven Door Plug
9	Insulation-Oven Door Lining
10	Retainer
11	Spacer, Glass (Lt/Rt)
12	Screw, No.10-32 x 17/32
13	Retainer-Insul. Oven Door
14	W10850756 Whirlpool Screw
15	Clamp, Glass (Lt/Rt)
16	Cushion
17	Frame, Black
17	Frame, White
18	Handle, White
18	Handle, Black
19	Spacer, White
19	Spacer, Dr. Handle
20	Screw 6-20×3/8 (White Model)
20	Screw No.6-20×5/16
21	Glass, Outer Door (Black Model)
21	Glass, Outer Door (White Model)
23	Screw No.10 x 3/4
24	Glass-Intermediate
26	Screw No.6-32×3/16“
27	Baffle-Door Lining
28	Glass, Inner Door
29	Retainer, Glass
30	Hinge-Door (Lt/Rt)
31	Support, Lining
32	Lining-Oven Door
33	Glass-Inner
34	Screw, No.10 x 1
35	Screw, No.10-32 x 3/4
36	Washer, Fiber
37	Spacer, Glass Door
38	Retainer
