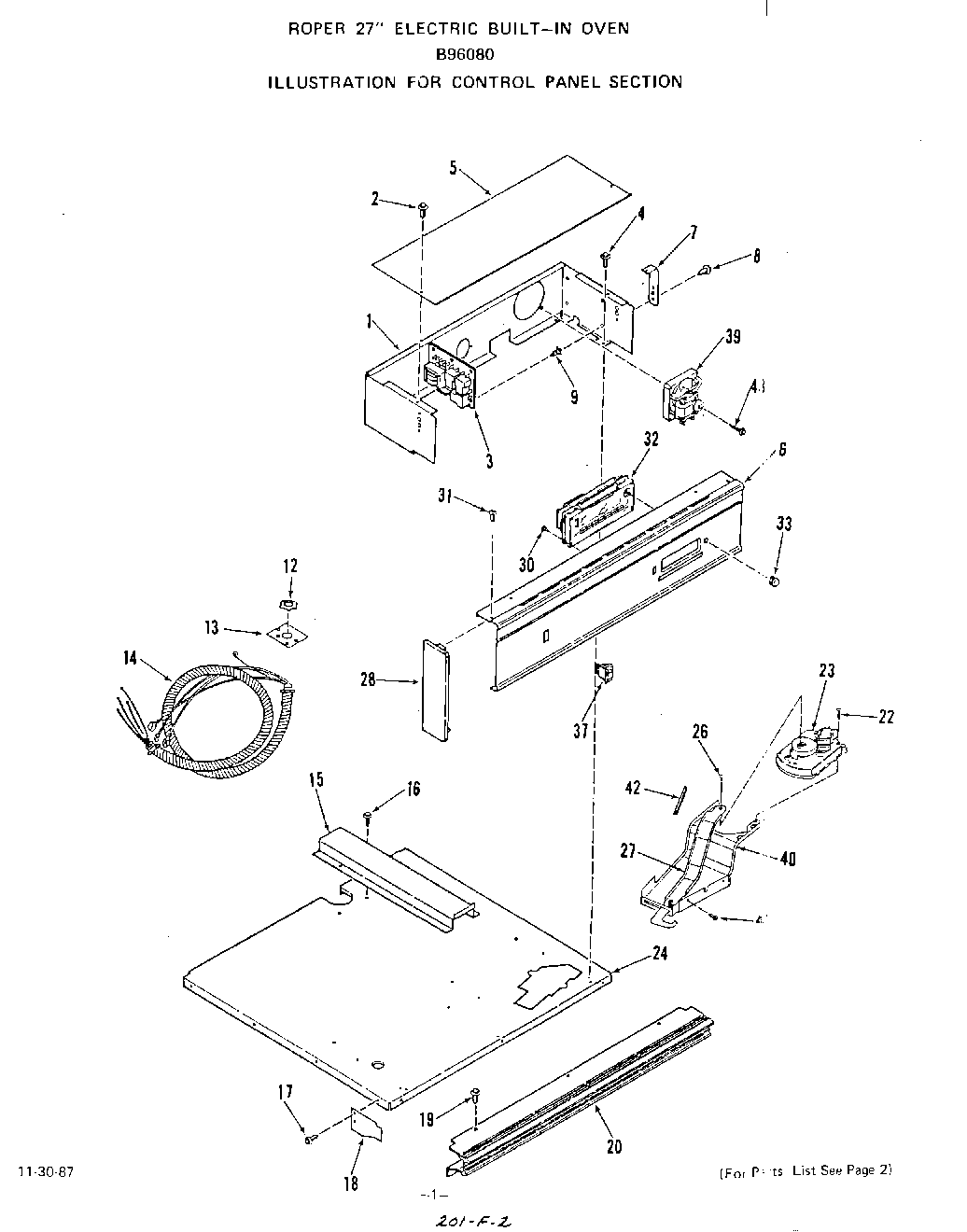

B9608W0 02 – CONTROL PANEL , LIT/OPTIONAL

B9608W0 02 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

B9608W0 02 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	xClock Lens
1	Control Housing
3	D97570
5	Top Cover-Housing
6	Model B9608WO
6	Panel Control
6	Control Panel
7	Bracket
9	Spacer PCB
12	Nut (For Key 45)
13	Plate (For Key 45)
14	Harness Conduit Asm.
15	Wire Cover
16	Screw 10 – 32 x 7/16“
17	Screw 10-16×7/16“
18	Heat Shield (Lt. or Rt.)
19	WP112432 Whirlpool Nut Assembly
20	Model B9608BO
20	Model B9608WO
20	Trim
22	WPL 232183
23	Lock Motor Asm
24	Cabinet Top
26	Screw 8 – 32 x 850
27	Lock Lever Asm
28	End Cap
28	Left (Model B9608WO)
28	Right (Model B9608WO)
28	Right
28	Left
30	Screw 6-32×5/16“
31	Screw
31	Screw 10-16×1/2“
31	Model B9608WO
32	Clock/Oven Control w/Lens
33	Model B9608WO
33	Clock Knob
33	Clock Knob
37	Rocker Switch
37	Model B9608WO
37	Switch-Oven Light
39	Fan Asm
40	Door Lock Plate
41	Screw-10-32×1/2“
42	Lock Spring
43	Screw 10 – 32 x 1/4“
