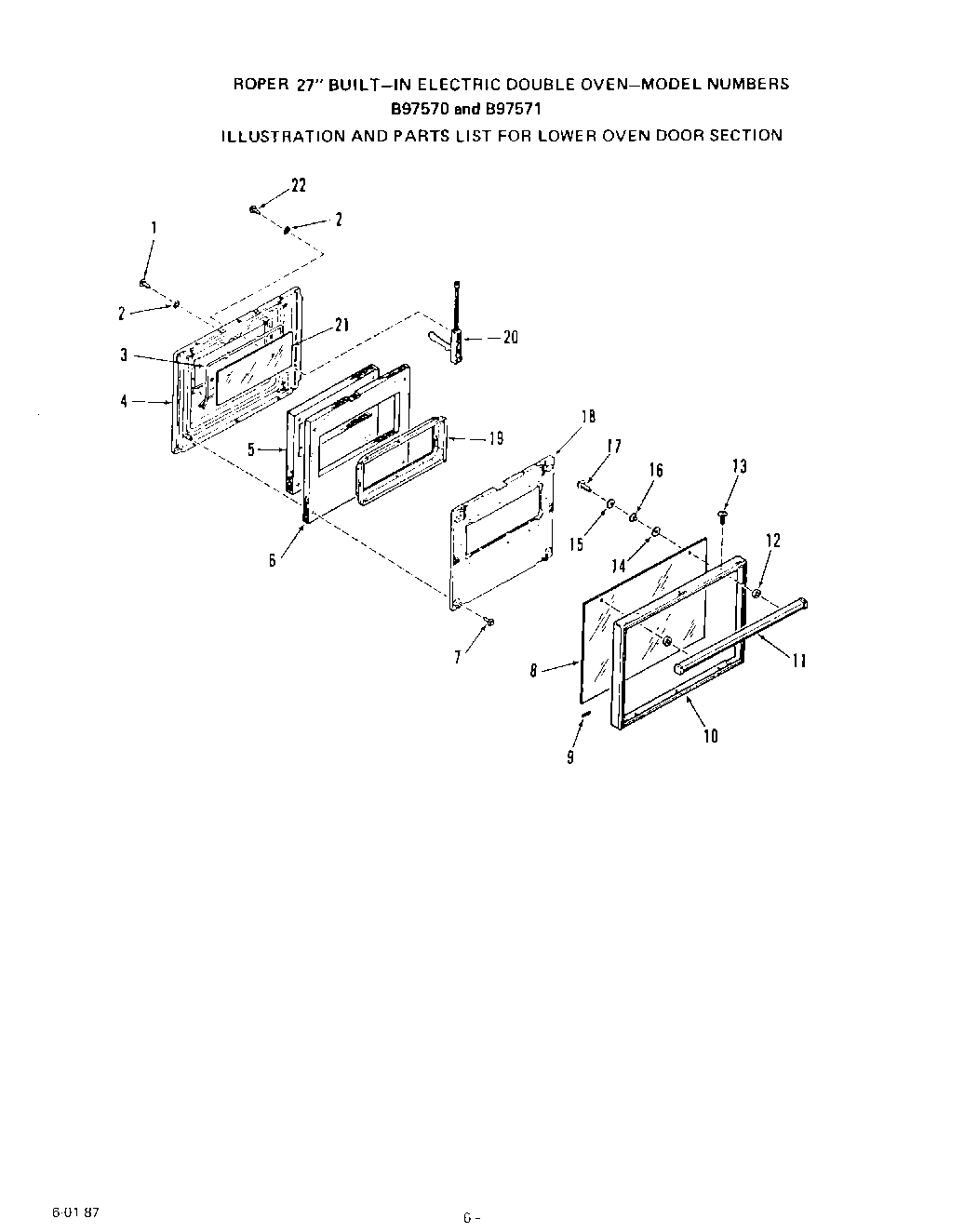

B9757^0 06 – LOWER OVEN DOOR

Products

Position	Product
1	Screw 10ABx1
2	WPL 21067
3	Seal-Inner Glass
4	Lining-Oven Door
5	Insulation-Oven Door Plug
6	Insulation-Oven Door Lining
7	WP112432 Whirlpool Nut Assembly
8	Oven Door Glass-Outer
9	Cushion-Door Glass
10	Frame-Oven Door
11	Oven Door Handle
12	Spacer
13	Screw 6-20×3/8“
14	Washer
15	Washer
16	Spacer-Glass
17	Screw 10-32×3/4“
18	Retainer-Oven Door Insulation
19	Retainer-Oven Door Glass
20	Hinge-Oven Door (Rt. or Lt.)
21	Inner Glass-Oven Door
22	Screw 10-32×3/8“
