B9757X1 02 – CONTROL PANEL – Aparts

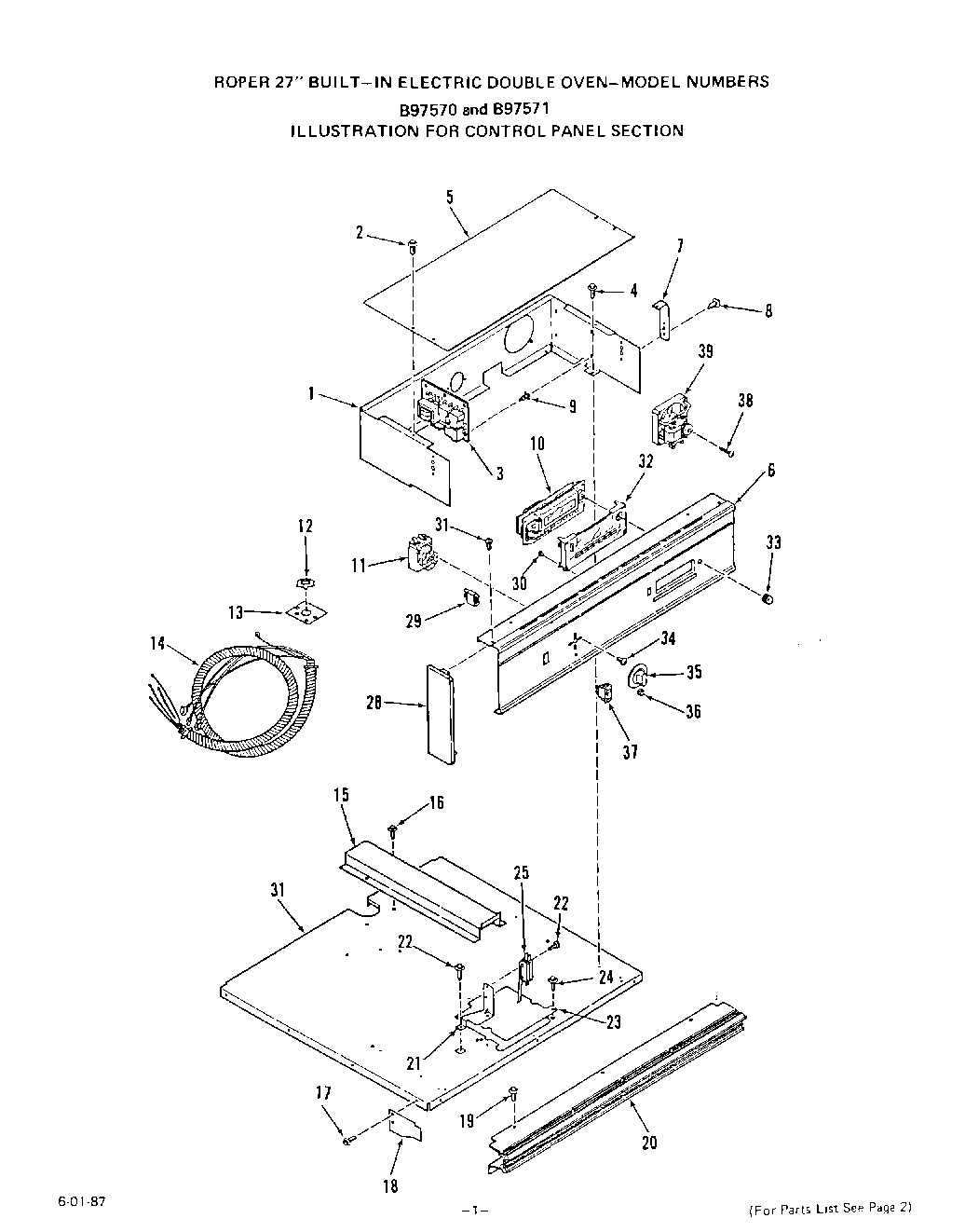

B9757X1 02 – CONTROL PANEL

Products

Position	Product
1	Trim Control Panel
3	D97571
3	Relay Circuit Board
3	D97570
5	Top Cover-Housing
6	Control Panel
7	Bracket
9	Spacer PCB
10	D97571
10	Clock/Oven Control
10	D97570
11	Lower Oven Thermostat
12	Nut (For Key 45)
13	Plate (For Key 45)
14	Harness Conduit Asm.
15	Wire Cover
16	Screw 10 - 32 x 7/16``
17	Screw 10-16x7/16``
18	Heat Shield (Lt. or Rt.)
19	WP112432 Whirlpool Nut Assembly
20	Trim, Control Panel
21	Bracket-Micro Switch
22	Screw 6-32x7/8``
23	Cover Plate Lock
24	WPL 295850
25	Micro Switch-Lock
28	End Cap
28	Left
28	Right
29	Light-Indicator (Surface)
30	Screw 6-32x5/16``
31	Screw 10-32x1/2``
32	Clock Lens Asm.
32	D97570
32	Clock Lens Asm
33	Knob-Clock
34	WPL 78565
35	Thermostat Knob
36	Lens-Indicator Light
37	Switch-Oven Light
38	Screw 10-32x1``
39	Fan Asm
