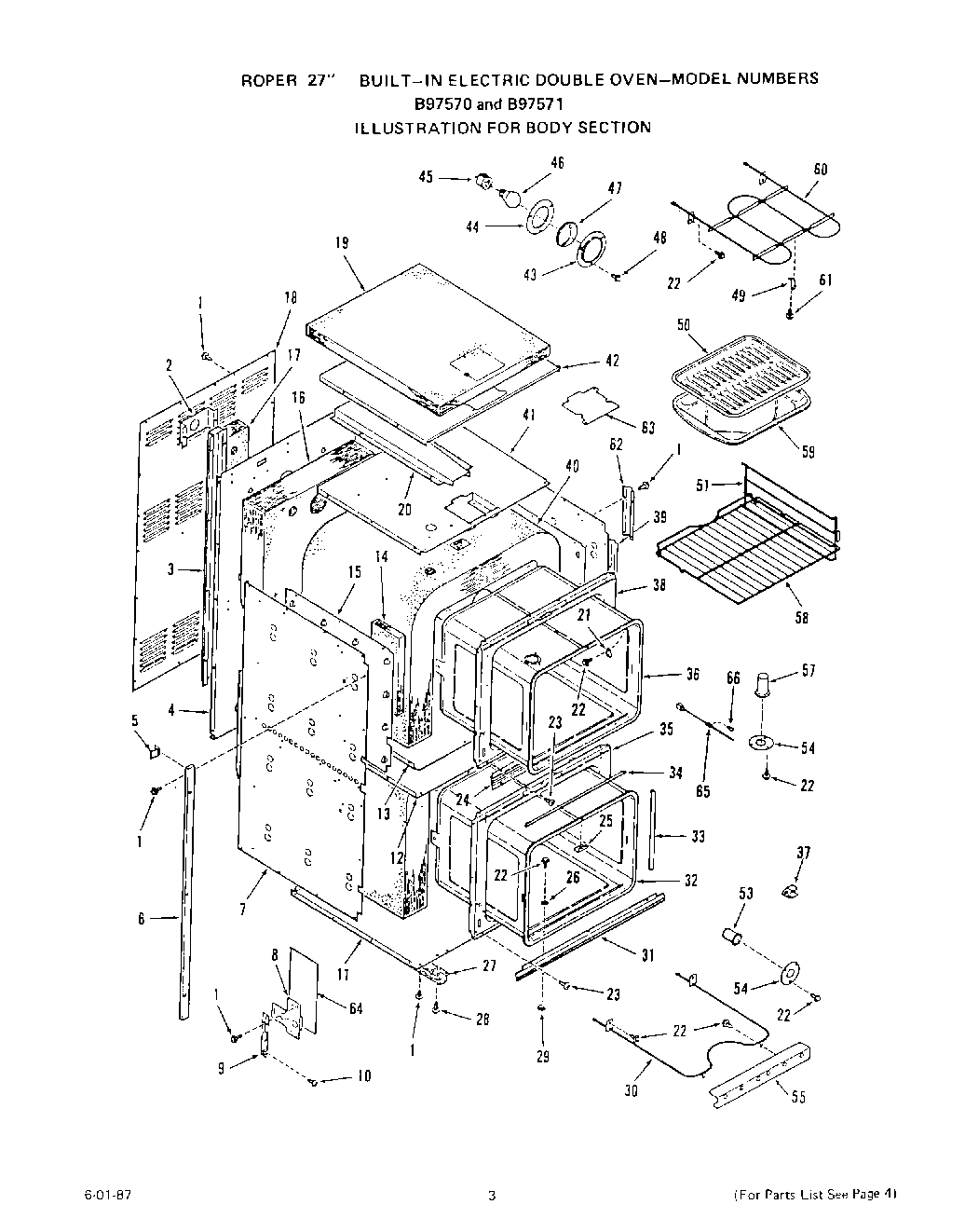

B9757X1 04 – BODY

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Insulation Retainer-Oven Light
3	Rear Oven Vent Box
4	Main Back
5	Spacer (4 Req)
6	Side Trim (Lt. or Rt.)
7	Left
7	Right
7	Cabinet Side
8	Hinge Box Asm. Lt or Rt
9	Hinge Angle-Lt. or Rt.
11	Cabinet Bottom
12	Insulation Retainer-Ov. Top (Lo)
13	Insulation Retainer-Btm. (Up.)
14	Insulation (Lt. or Rt.)
15	Insulation Retainer-Oven Side (Lt. or Rt.)
16	Insulation-Oven Back & Bottom
17	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
18	Cabinet Back
19	Insulation-Cabinet Top
20	Top Oven Vent Box
23	Screw
24	Center Front Trim
25	Cover
26	WPL 21067
27	Bottom Channel-Lt. or Rt.
28	Screw 10 – 32 x 1/4“
29	Speed Nut 10 – 32
30	Bake Element
30	Bake Element
30	Bake Element
31	Lower Trim
32	2075B1A Model
33	Lower Oven Door
34	Lower Oven Seal Lt or Rt
35	2075B1A Model
36	Oven Body
37	Clip-Thermostat Bulb (2 Req)
38	Front Frame
39	Raceway
40	Insulation Oven Top & Sides (1 Piece)
41	Insulation Retainer-Oven Top
42	Insulation Retainer-Cabinet Top
43	Retainer-Oven Light Lens
44	Gasket-Lens
45	Holder-Oven Light Bulb
46	Oven Lamp Bulb
47	Lens-Oven Light
48	Screw 10 – 32 x 17/32“
49	Broiler Element Support
50	WPL 326297
51	Oven Rack Guide-Rt. or Lt.
53	WPL 294679
54	Oven Vent Clamp
55	WPL 331670
58	Oven Rack (2 Req)
59	WPL 331592
60	Broiler Element
61	Screw 10ABx3/8“
62	WPL 323665
63	Cover Plate-Thermostat Bulb
64	WPL 114300
65	Sensor
66	Screw
