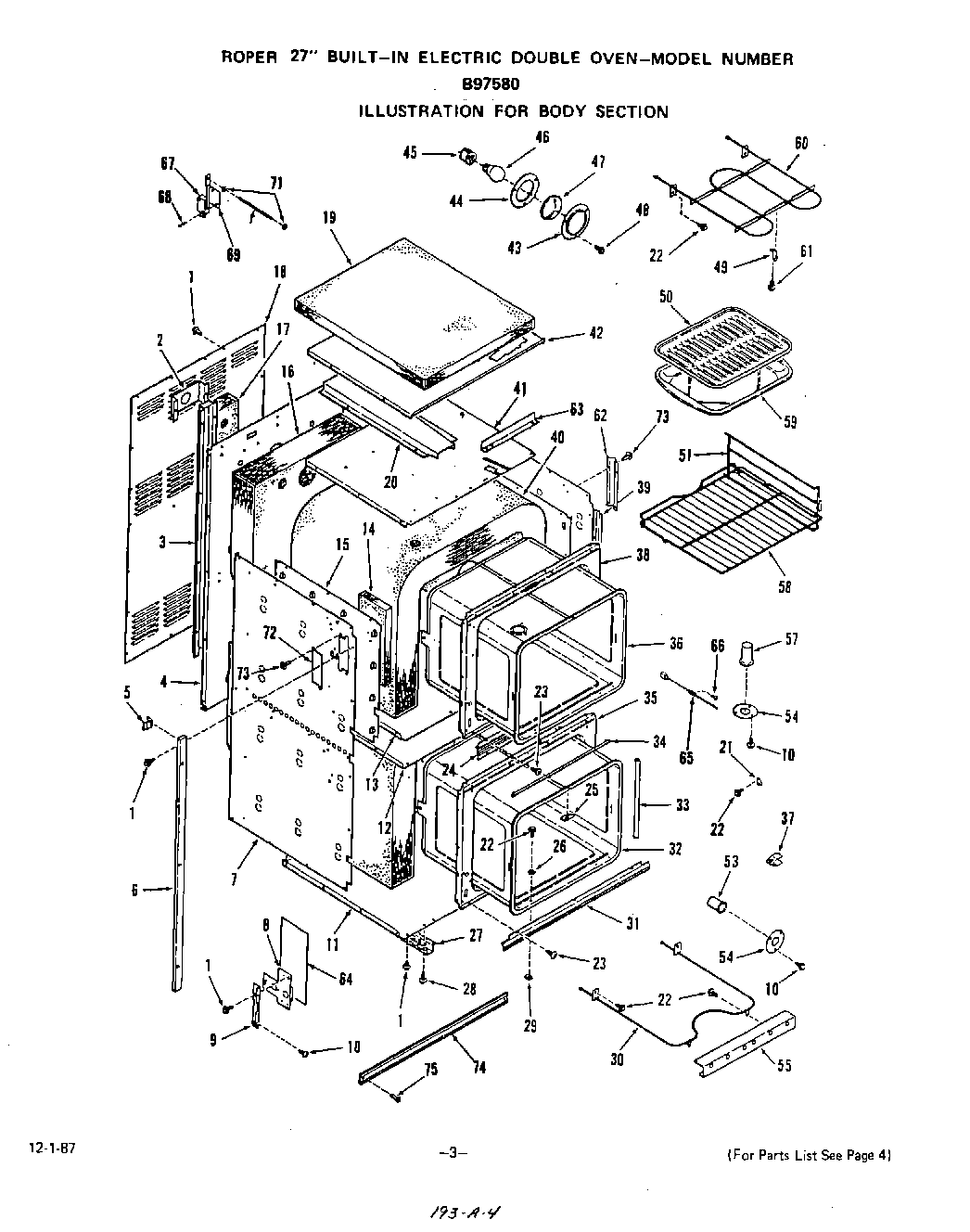

B9758B0 04 – BODY

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Insulation Retainer-Oven Light
3	Rear Oven Vent Box
4	Main Back
5	Spacer (4 Req)
6	Side Trim (Lt. or Rt.)
7	Cabinet Side (Left)
7	Right
8	Hinge Box Asm. Lt or Rt
9	Hinge Angle-Lt. or Rt.
11	Cabinet Bottom
12	Insulation Retainer-Ov. Top (Lo)
13	Insulation Retainer-Btm. (Up.)
14	Insulation (Lt. or Rt.)
15	Insulation Retainer-Oven Side (Lt. or Rt.)
16	Insulation-Oven Back & Bottom
17	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
18	Cabinet Back
19	Insulation-Cabinet Top
20	Top Oven Vent Box
21	Cover Plate-Thermostat Bulb
23	Screw
24	Center Front Trim
25	Cover
26	WPL 21067
27	Bottom Cabinet Channel (Lt. or Rt.)
28	Screw 10 – 32 x 1/4“
29	Speed Nut 10 – 32
30	Bake Element
30	Bake Element
31	Lower Trim
32	2075B1A Model
33	Lower Oven Door
34	Lower Oven Seal Lt or Rt
35	2075B1A Model
36	Oven Body
37	Clip-Thermostat Bulb (2 Req)
38	Front Frame
39	Raceway
40	Insulation Oven Top & Sides (1 Piece)
41	Insulation Retainer-Oven Top
42	Insulation Retainer-Cabinet Top
43	Retainer-Oven Light Lens
44	Gasket-Lens
45	Holder-Oven Light Bulb
46	Oven Lamp Bulb
47	Lens-Oven Light
48	Screw 10 – 32 x 17/32“
49	Broiler Element Support
50	WPL 326297
51	Oven Rack Guide-Rt. or Lt.
53	Vent Tube-Upper Oven
54	Oven Vent Clamp
55	WPL 331670
58	Oven Rack (2 Req)
59	WPL 331592
60	Broiler Element
61	Screw 10ABx3/8“
62	WPL 323665
63	WPL 337922
64	WPL 114300
65	Sensor
66	Screw
67	WPL 337711
68	Screw 4-40×11/16“
69	Insulator
70	WPL 337723
71	WPL 335039
72	WPL 337907
73	Screw 10-16×7/16“
