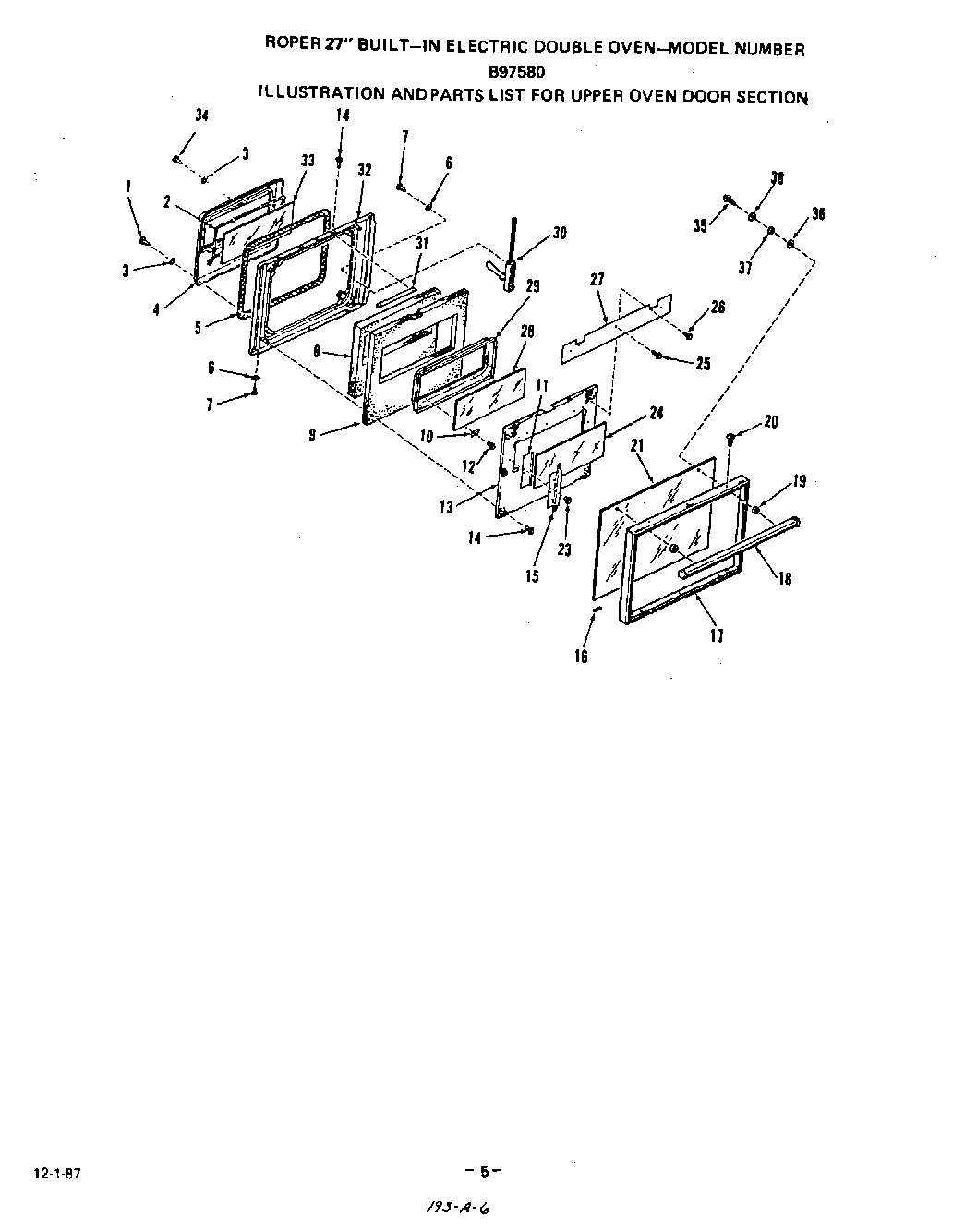

B9758B0 05 – UPPER OVEN DOOR

Products

Position	Product
1	Screw 10ABx1/2``
2	Seal-Inner Glass
4	Plug-Oven Door
5	Oven Door Gasket
6	WPL 21067
7	Screw 10-32x3/8``
8	Insulation-Oven Door Plug
9	Insulation-Oven Door Lining
10	Door Glass Retainer (4 Req)
11	Spacer-Oven Door Glass (Lt. or Rt.)
12	Screw 10-32x17/32``
13	Retainer-Oven Door Insulation
14	WP112432 Whirlpool Nut Assembly
15	WP487353 Whirlpool Refrigerator Screw
16	Cushion-Door Glass
17	Frame-Oven Door
18	Oven Door Handle
19	Spacer
20	Screw 6-20x3/8``
21	Oven Door Glass-Outer
23	Screw 10ABx3/4``
24	Oven Door Glass-Intermediate
25	WPL 295850
26	Screw 6-32x1/4``
27	Baffle-Oven Door Lining
28	Inner Glass-Oven Door
29	Retainer-Oven Door Glass
30	Oven Door Hinge-Rt. or Lt.
31	Stiffener-Oven Door Lining
32	2055B1A Model
33	Inner Door Glass
34	Screw 10ABx1
35	Screw 10-32x3/4``
36	Washer
37	Spacer-Glass
38	Washer
