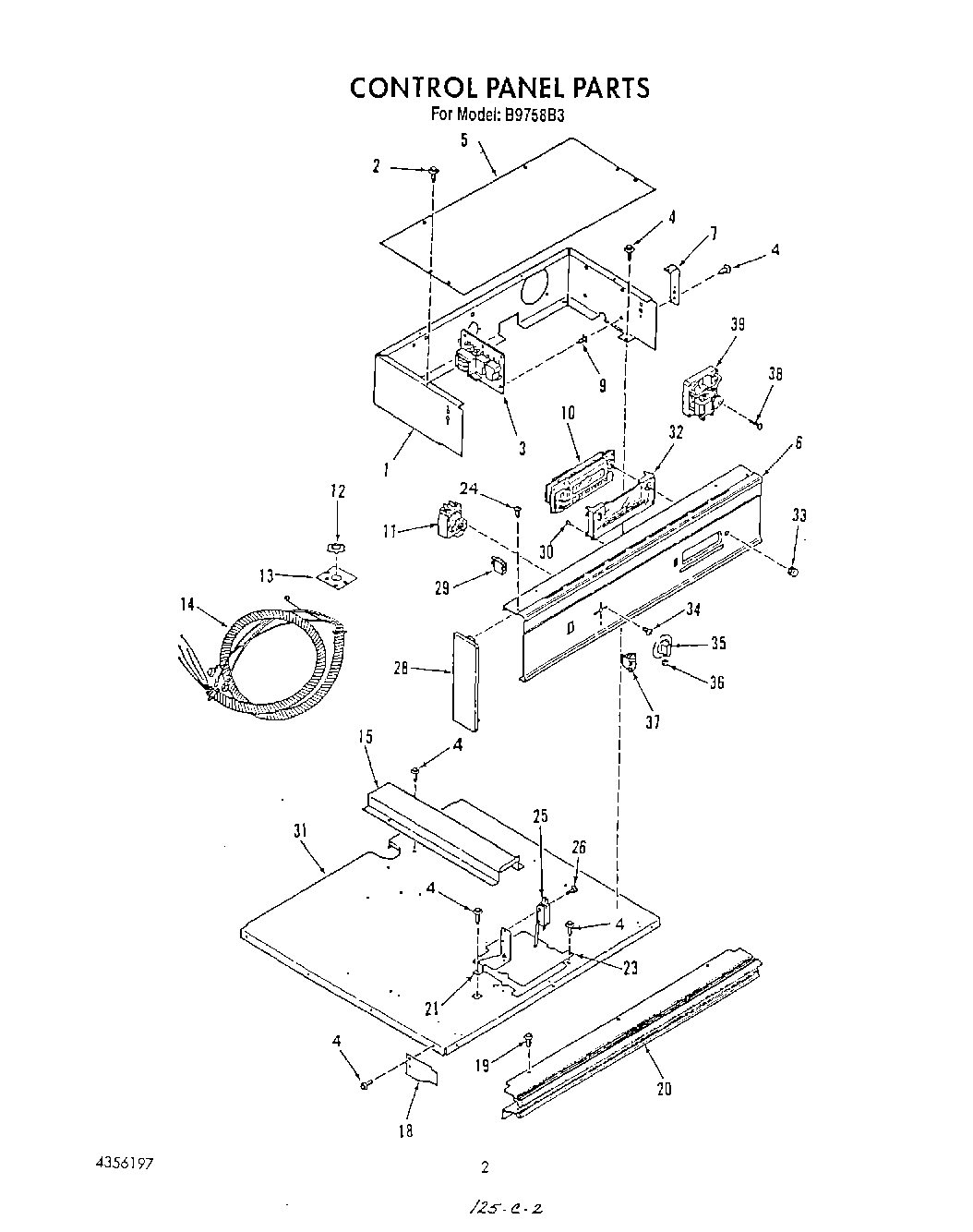

B9758B3 02 – CONTROL PANEL

Products

Position	Product
1	Housing, Control
2	W10850756 Whirlpool Screw
3	Relay, Circuit Board
4	SCREW
5	Cover
6	Panel, Control
7	Bracket
9	Spacer
10	Control, Clock/Oven
11	Thermostat
12	Nut, Lock
13	Plate, Service
14	Conduit, Harness
15	Cover, Wire
18	Heat Shield, (Lt/Rt)
20	Trim-Control Panel (Black Model)
21	Bracket, Micro Switch
23	Cover Plate, Lock
24	Screw, No.10-32 x 1/2
25	Micro Switch, Lock
26	Screw No.6-32×7/8
28	End Cap (Right)
28	End Cap (Left)
29	Indicator Light (Oven Unit)
30	Screw
31	Top, Cabinet
32	Lens, Clock/Oven Control
33	Knob, Clock
34	Screw
35	Knob, Thermostat
36	WP9750343 Whirlpool Light Lens
37	WP4314961 Whirlpool Lite Switch
38	Screw No.10-32×1/4
39	Fan Assembly
