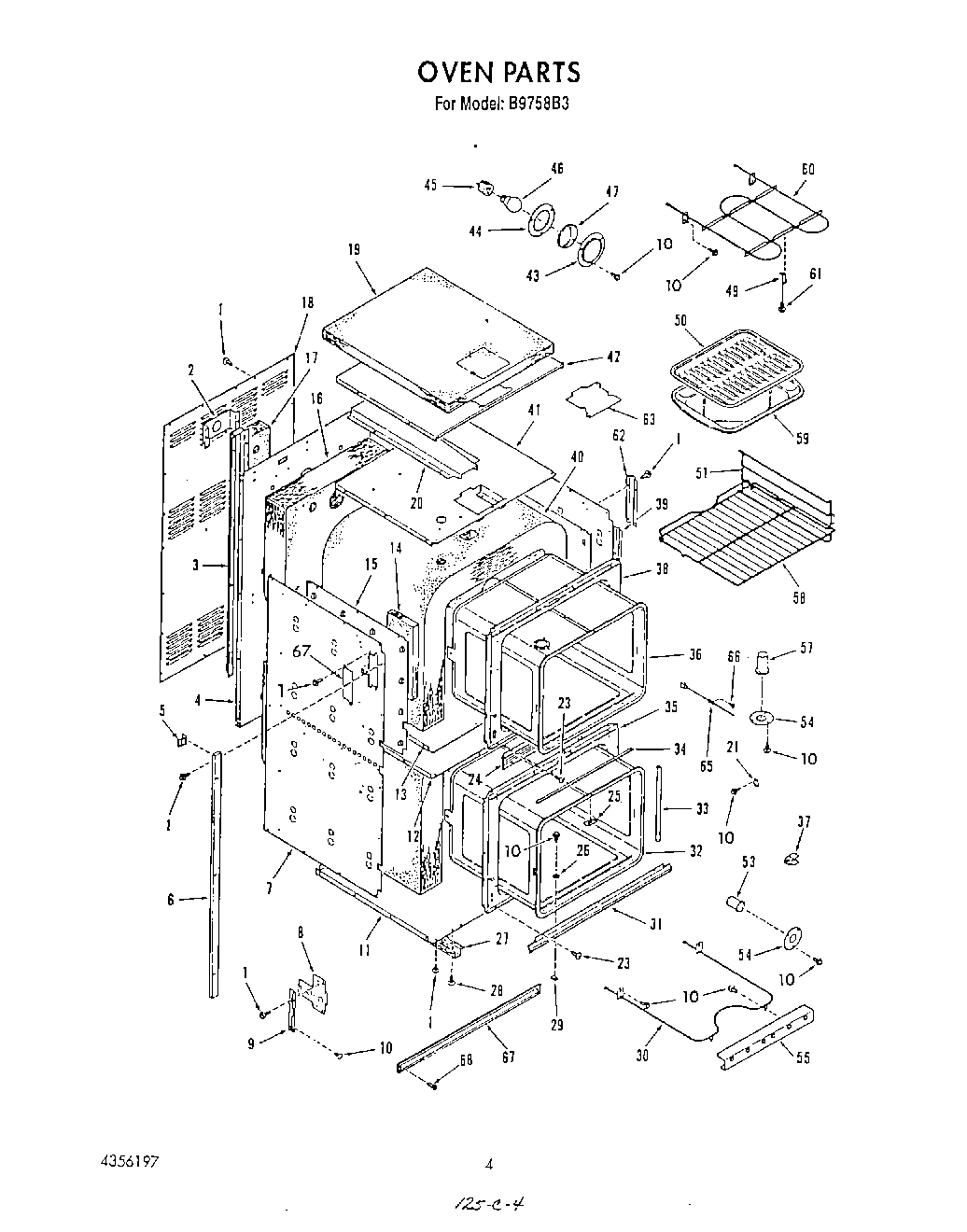

B9758B3 04 – OVEN

Products

Position	Product
1	SCREW
2	Retainer, Light Insulation, Upper/Lower Ovens
3	Vent Box, Rear
4	Back Cover
5	Spacer (4)
6	Side Trim, Lt/Rt
7	Cabinet Side (Left)
7	Cabinet Side (Right)
8	Hinge Box Assembly Lt/Rt
9	Angle, Hinge (Lt/Rt)
10	Screw, No.10-32 x 17/32
11	Bottom, Cabinet
12	Insul. Retainer Oven Top (Lower)
13	Insul. Retainer Oven Bottom (Upper)
14	WPL 4352036
15	Retainer, Insul.-Side (Lt/Rt)
16	Insulation, Back and Bottom
17	Insulation, Lamp (Upper/Lower)
18	Back, CAbinet
19	Insulation Cabinet Top
20	Vent, Oven Top
21	WPL 4324951
23	Screw, Trim
24	Trim, Center Front
25	Cover
26	Washer
27	Channel, Bottom Cabinet (Lt/Rt)
28	Screw No.10-32×1/4
29	Nut, Speed No.10-32
30	Element, Bake
30	Element, Bake (Lower Oven)
31	Lower Trim (Black Model)
32	Oven, Lower
33	Side Seal, Lower
34	Top Seal, Lower
35	Front Frame, Lower
36	Oven Body
37	Clip
38	Frame, Front
39	Raceway
40	Insulation, Top & Sides (1 Pc) (Upper/Lower)
41	Retainer, Oven Top Insulation
42	Retainer, Top Insulation
43	Retainer, Lens
44	Gasket, Lens
45	W10856866 Whirlpool Light Socket
46	RANGE ONLY 40W 120V APPL BULB
47	Lens, Oven Light
49	WPL 4334358
50	4396923 Whirlpool Broil Pan Set Gray Porcelain
51	Guide-Oven Rack (Lt/Rt)
53	WPL 4335954
54	WPL 4335624
55	WPL 4336620
57	Vent Tube
58	Oven Rack (2)
60	WP4334925 Whirlpool Broil Element
61	Screw, No.10 x 3/8
62	Raceway
63	Lock Cover Plate
65	Sensor
66	Screw
67	WPL 4338202
