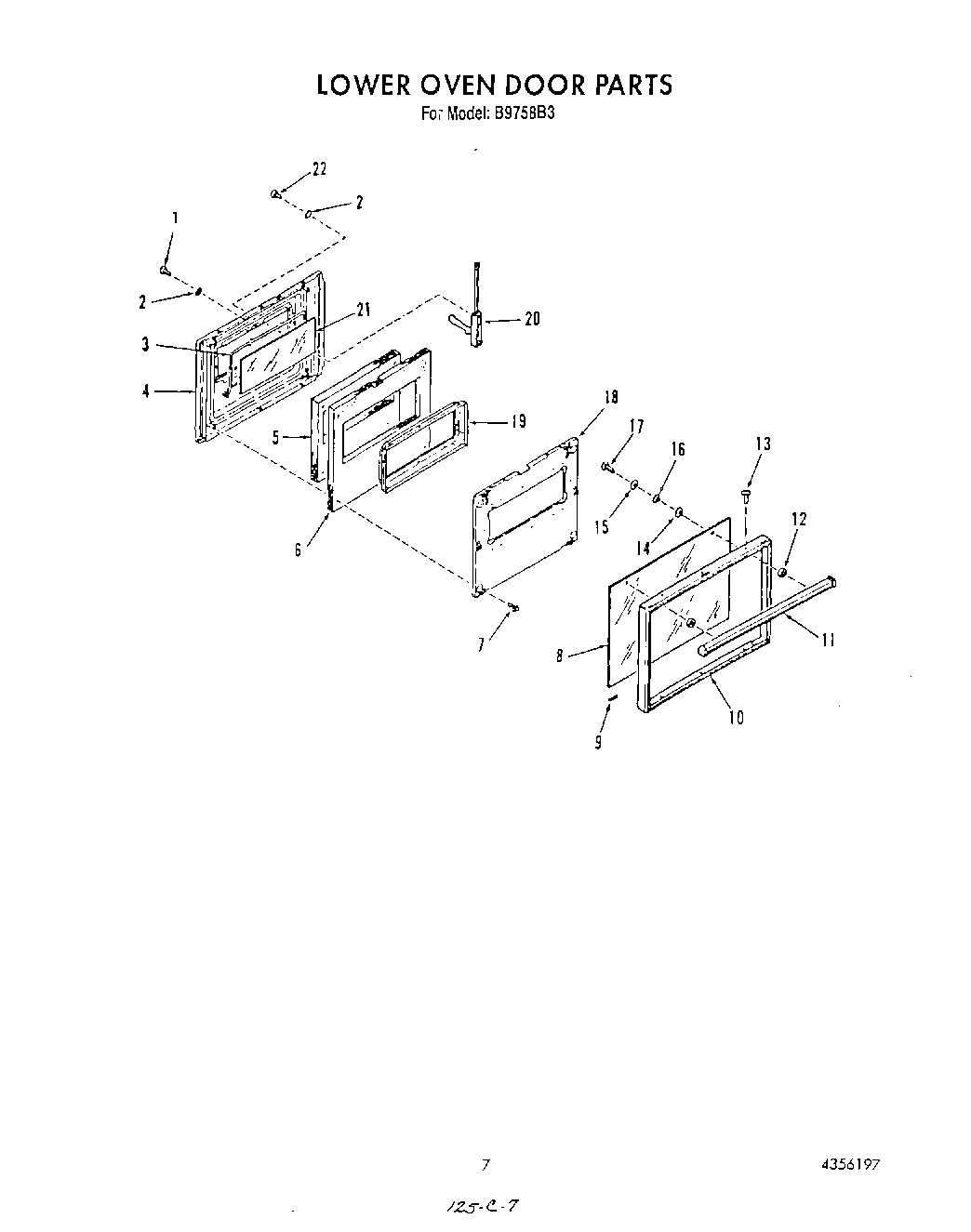

B9758B3 06 – LOWER OVEN DOOR

B9758B3 06 – LOWER OVEN DOOR

Written by

in

B9758B3 06 – LOWER OVEN DOOR

Products

Position	Product
1	Screw, No.10 x 1
2	Washer
3	Seal, Inner Glass
4	Lining
5	Insulation-Oven Door Plug
6	Insulation-Oven Door Lining
7	SCREW
8	Glass, Outer Door (Black Model)
9	Cushion
10	Frame, Black
11	Handle, Black
12	Spacer, Dr. Handle
13	Screw No.6-20×5/16
14	Washer, Fiber
15	Retainer
16	Spacer, Glass Door
17	Screw, No.10-32 x 3/4
18	Retainer-Insul. Oven Door
19	Retainer, Glass
20	Hinge, Lt/Rt
21	Glass, Inner Door
22	Screw No.10-32×3/8
