B9907^0 04 – CONTROL PANEL

B9907^0 04 – CONTROL PANEL

Written by

in

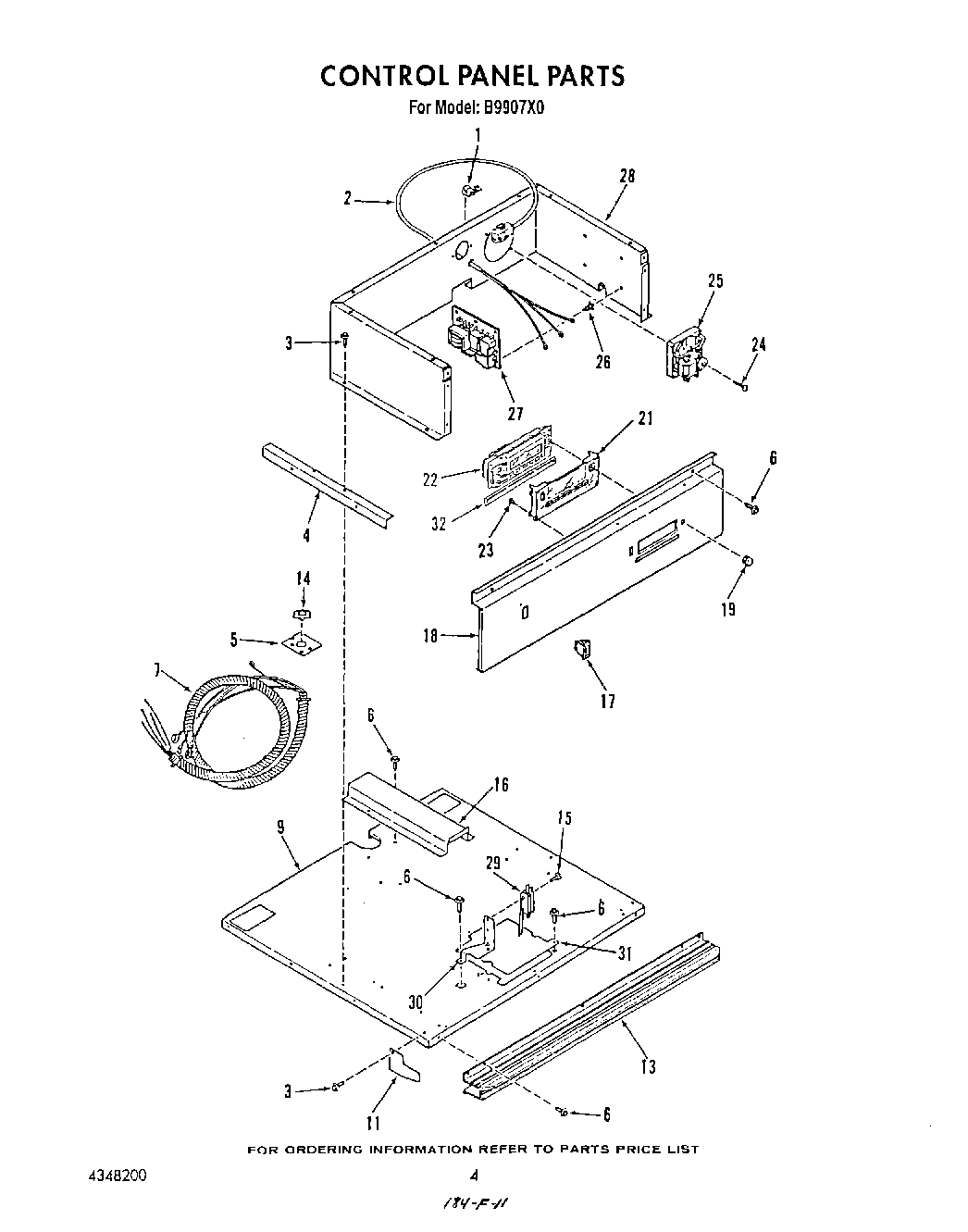

B9907^0 04 – CONTROL PANEL

Products

PositionProduct
1Relief, Strain
2Cord W/Plug
3SCREW
4Stiffener (Lt/Rt)
5Plate, Service
6W10850756 Whirlpool Screw
7Conduit, Harness
9Top-Cabinet
11Shield-Heat (Lt/Rt)
13Trim, Lower
14Nut, Lock
15Screw No.6-32×7/8
16Cover, Wire
17WP4314961 Whirlpool Lite Switch
18Panel, Control
19Knob, Clock
21Lens, Clock/Oven Control
22Clock/Oven Control
23Screw
24Screw No.10-32×1/4
25Fan Assembly
26Spacer
27Board, Circuit
28Housing, Control
29Micro Switch, Lock
30Bracket, Micro Switch
31Lock Cover Plate
32Clock Support
