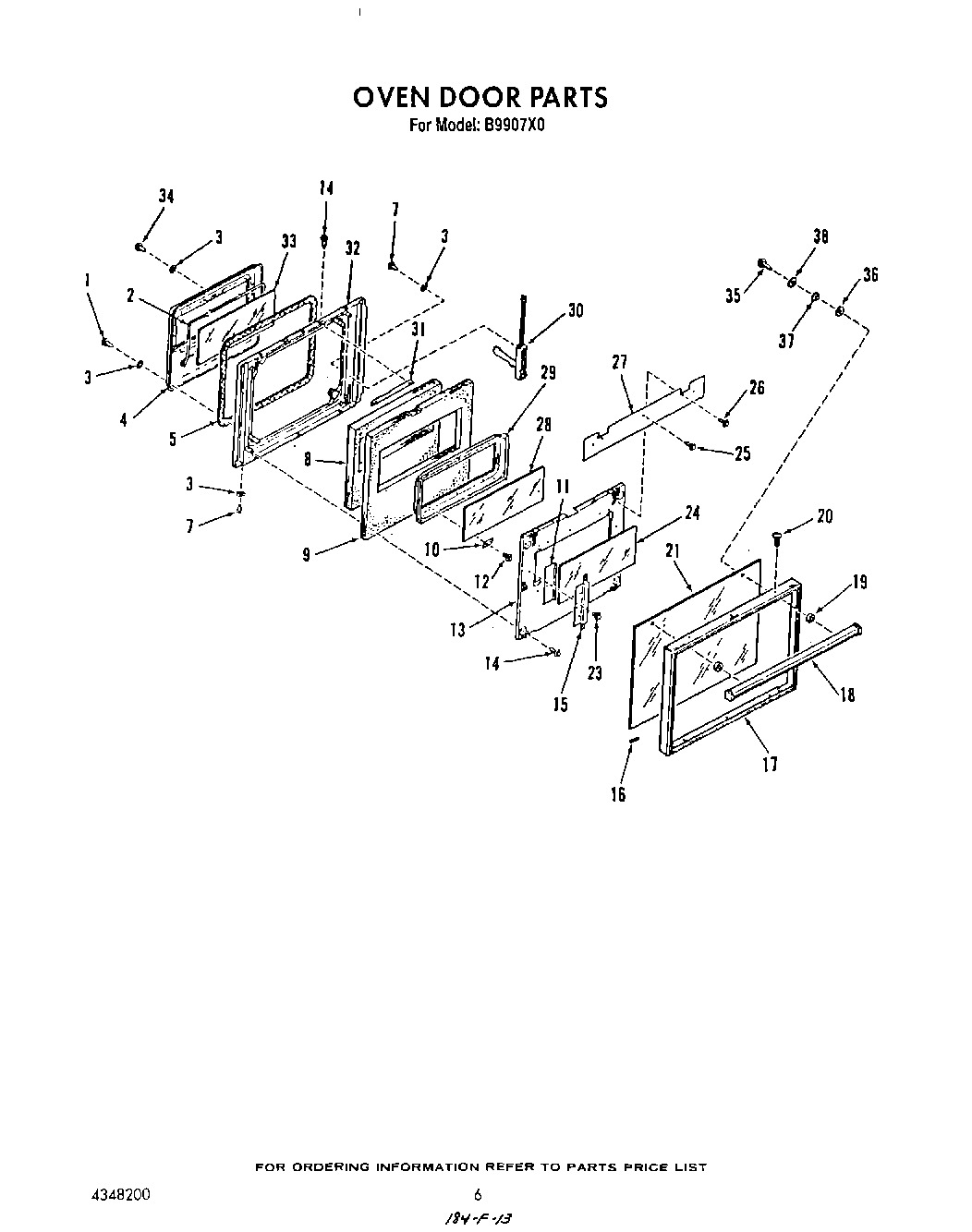

B9907^0 06 – OVEN DOOR, LIT/OPTIONALadmin2025-04-26T12:03:15+00:00B9907^0 06 – OVEN DOOR, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | WP308685 Whirlpool Microwave Screw |
| 2 | Seal, Inner Glass |
| 3 | Washer |
| 4 | Plug-Oven Door |
| 5 | Seal-Oven Door |
| 7 | Screw No.10-32x3/8 |
| 8 | Insulation-Oven Door Plug |
| 9 | Insulation-Oven Door Lining |
| 10 | Retainer |
| 11 | Spacer, Glass (Lt/Rt) |
| 12 | Screw, No.10-32 x 17/32 |
| 13 | Retainer-Insul. Oven Door |
| 14 | W10850756 Whirlpool Screw |
| 15 | Clamp, Glass (Lt/Rt) |
| 16 | Cushion |
| 17 | Frame, Black |
| 18 | Handle, Black |
| 19 | Spacer, Dr. Handle |
| 20 | Screw 6-20x3/8 |
| 21 | Glass, Outer Door (Black Model) |
| 23 | Screw No.10 x 3/4 |
| 24 | Glass-Intermediate |
| 26 | Screw No.6-32x3/16`` |
| 27 | Baffle-Door Lining |
| 28 | Glass, Inner Door |
| 30 | Hinge-Door (Lt/Rt) |
| 31 | Support, Lining |
| 32 | Lining-Oven Door |
| 33 | Glass-Inner |
| 34 | Screw, No.10 x 1 |
| 35 | WP999367 Whirlpool Refrigerator Screw |
| 36 | Washer, Fiber |
| 37 | Spacer, Glass Door |
| 38 | WPL 4337736 |
| 38 | Washer |
| 38 | Wire Harness (Sensor) |
| 38 | Main |
| 38 | Installation Guide Wire Harness |
| 38 | Use & Care Manual |
| 38 | Repair Parts List |
