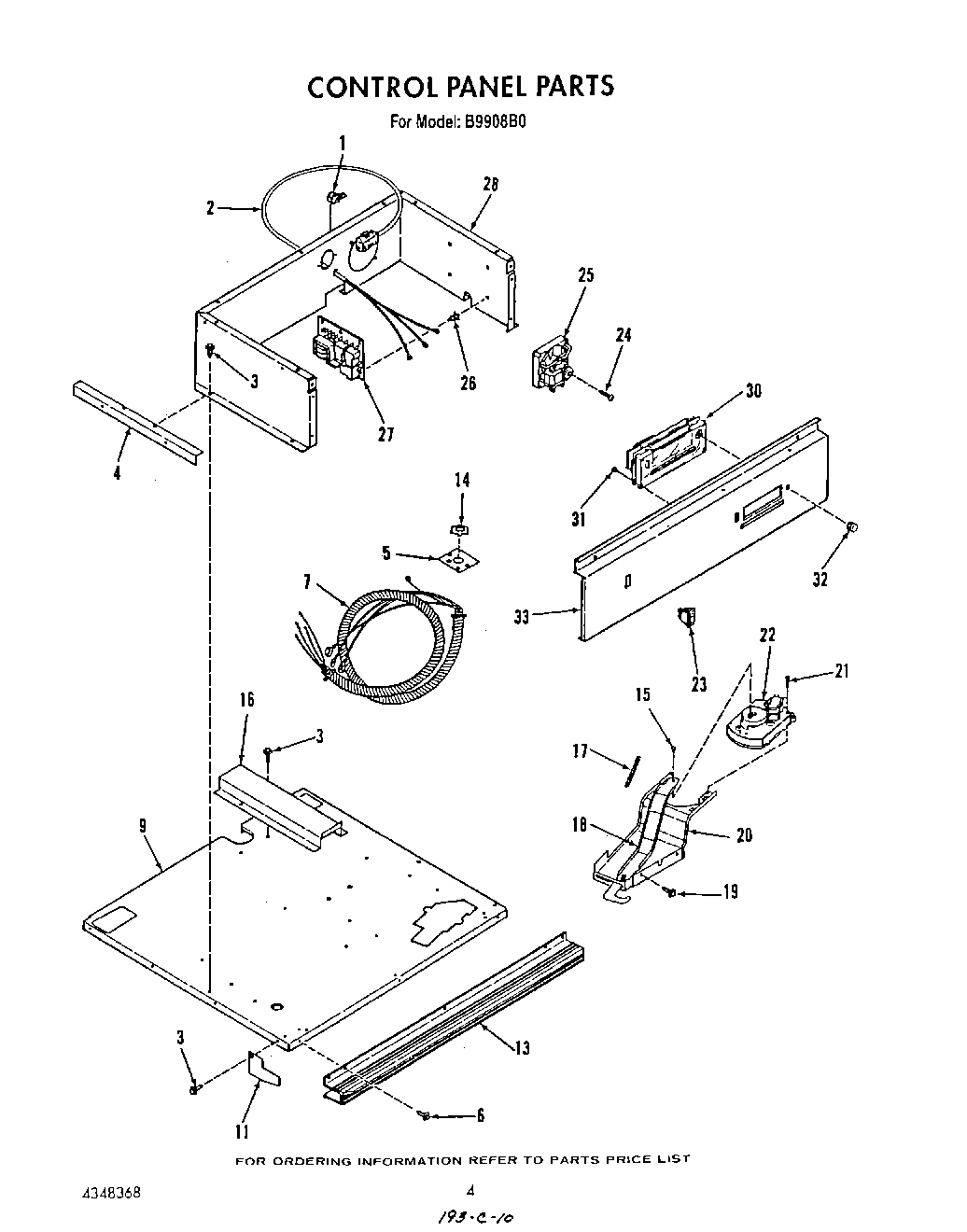

B9908B0 03 – CONTROL PANEL

B9908B0 03 – CONTROL PANEL

Written by

in

B9908B0 03 – CONTROL PANEL

Products

PositionProduct
xLens, Clock/Oven Control
1Relief, Strain
2Cord W/Plug
3SCREW
4Stiffener (Lt/Rt)
5Plate, Service
6W10850756 Whirlpool Screw
7Conduit, Harness
9Top-Cabinet
11Shield-Heat (Lt/Rt)
13Trim, Lower
14Nut, Lock
15Screw No.8-32×55/64
16Cover, Wire
17Spring, Lock
18Lock Lever Asm.
19Screw No.10-32×1/2
20Plate, Door Lock
21Screw, No.8-32 x 3/8
22Lock Motor Asm.
23WP4314961 Whirlpool Lite Switch
24Screw, No.10-32×1
25Fan Assembly
26Spacer
27Circuit Board (B8758X0 Model)
28Housing
30Control, Oven-Clock W/Lens
31Screw
32Knob, Clock
33Panel, Control
