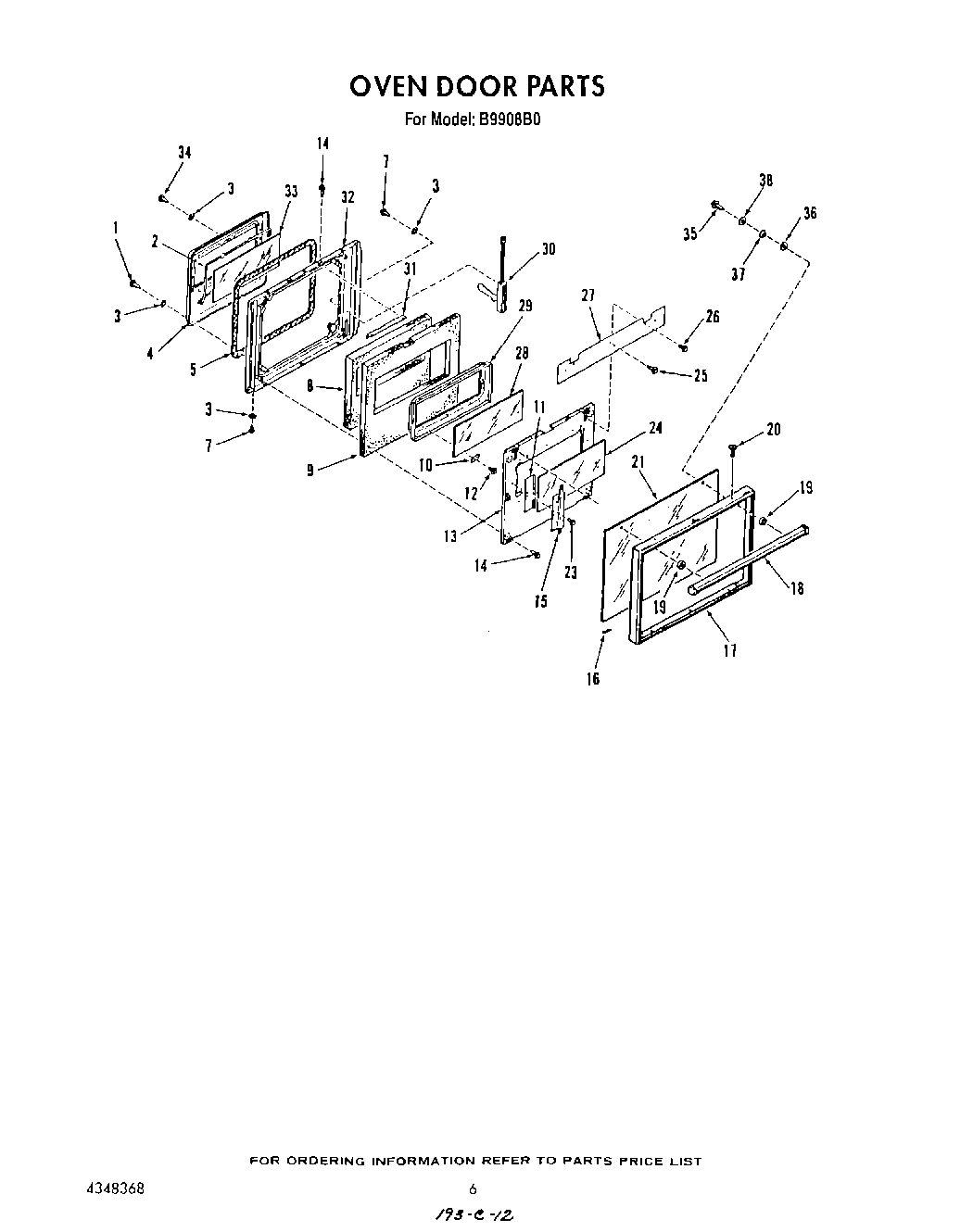

B9908B0 04 – OVEN DOOR
Written by
in
B9908B0 04 – OVEN DOOR
Products
Position
Product
xRepair Parts List
Installation Guide Wire Harness
xUse & Care Manual
1
WP308685 Whirlpool Microwave Screw
2
Seal, Inner Glass
3
Washer
4
Plug-Oven Door
5
Seal-Oven Door
7
Screw No.10-32×3/8
8
Insulation-Oven Door Plug
9
Insulation-Oven Door Lining
10
Retainer
11
Spacer, Glass (Lt/Rt)
12
Screw, No.10-32 x 17/32
13
Retainer-Insul. Oven Door
14
W10850756 Whirlpool Screw
15
Clamp, Glass (Lt/Rt)
16
Cushion
17
Frame, Black
18
Handle, Black
19
Spacer, Dr. Handle
20
Screw 6-20×3/8
21
Glass, Outer Door (Black Model)
23
Screw No.10 x 3/4
24
Glass-Intermediate
26
Screw No.6-32×3/16“
27
Baffle-Door Lining
28
Glass, Inner Door
29
Retainer, Glass
30
Hinge-Door (Lt/Rt)
31
Stiffener, Lining
32
Lining-Oven Door
33
Glass-Inner
34
Screw, No.10 x 1
35
WP999367 Whirlpool Refrigerator Screw
36
Washer, Fiber
37
Spacer, Glass Door
38
WPL 4337736
38
Washer
38
Wire Harness (Lock)
38
Wire Harness (Main)
38
Wire Harness (Sensor)
38
Sensor Limiter
←
