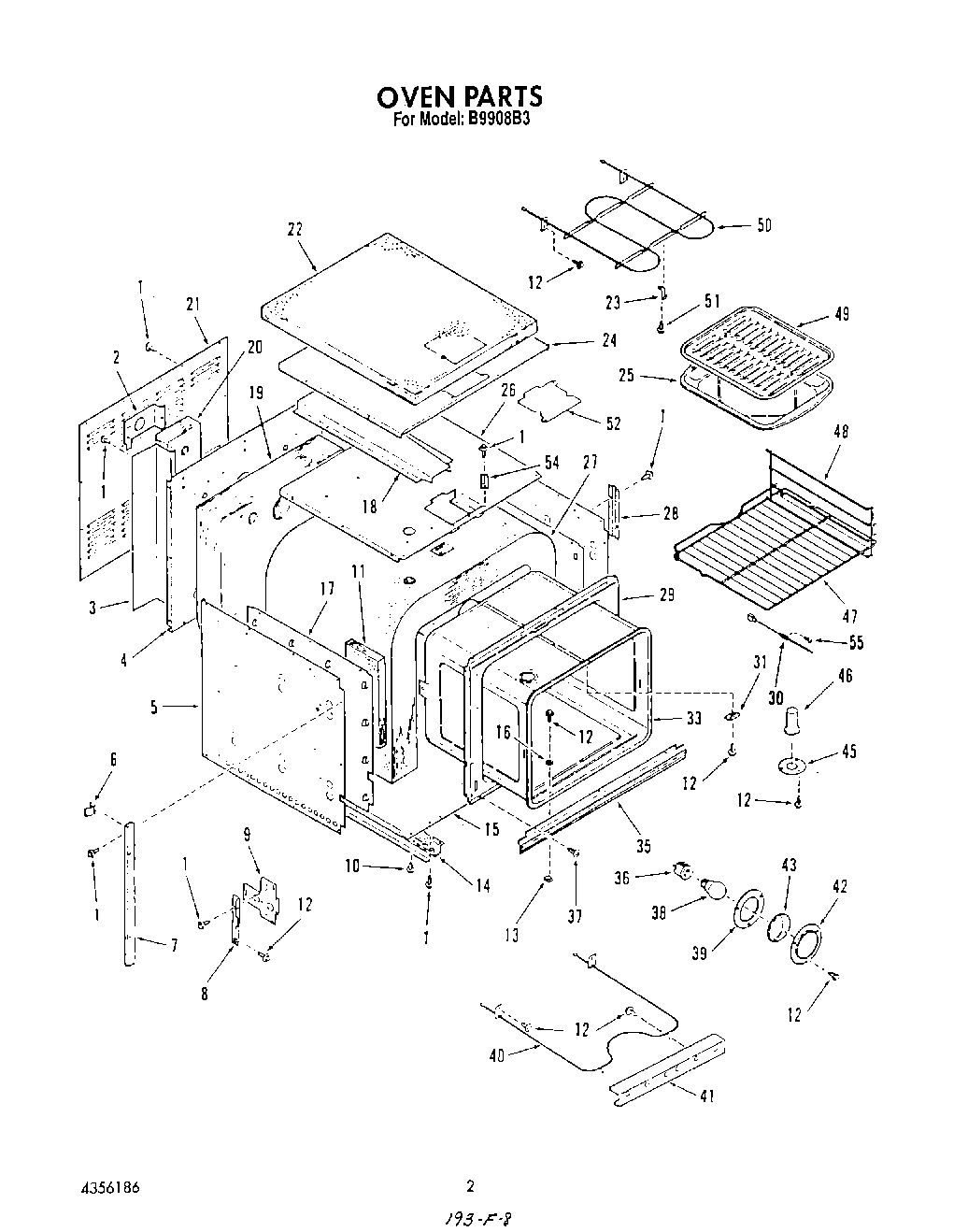

B9908B3 02 – OVEN

Products

Position	Product
1	W10850756 Whirlpool Screw
2	Retainer, Light Insulation, Upper/Lower Ovens
3	Side-Air Channel (Lt or Rt)
4	Back, Main
5	Side, Cabinet (Left)
5	Side, Cabinet (Right)
6	Spacer (4)
7	Side Trim, Lt/Rt (Black Model)
8	Angle, Hinge (Lt/Rt)
9	Hinge Box Assembly Lt/Rt
10	Screw No.10-32×1/4
11	WPL 4352036
12	Screw, No.10-32 x 17/32
13	Nut, Speed No.10-32
14	Base (Lt/Rt)
15	Bottom, Cabinet
16	Washer
17	Retainer, Insul.-Side (Lt/Rt)
18	Vent, Oven Top
19	Insulation, Back and Bottom
20	Insulation, Lamp (Upper/Lower)
21	Back, Cabinet
22	Insulation Cabinet Top
23	WPL 4334358
24	Retainer, Top Insulation
26	Retainer, Oven Top Insulation
27	Insulation, Top & Sides (1 Pc) (Upper/Lower)
28	Raceway
29	Frame, Front
30	Sensor
31	Cover
33	Oven Body
35	Trim, Lower
36	W10856866 Whirlpool Light Socket
37	Screw, Trim
38	RANGE ONLY 40W 120V APPL BULB
39	Gasket, Lens
40	Element, Bake (Lower Oven)
41	WPL 4336620
42	Retainer, Lens
43	Lens, Oven Light
45	WPL 4335624
46	Vent Tube
47	Oven Rack (2)
48	Guide-Oven Rack (Lt/Rt)
49	4396923 Whirlpool Broil Pan Set Gray Porcelain
50	WP4334925 Whirlpool Broil Element
51	Screw, No.10 x 3/8
52	Lock Cover Plate
54	Bracket (2)
55	Screw
