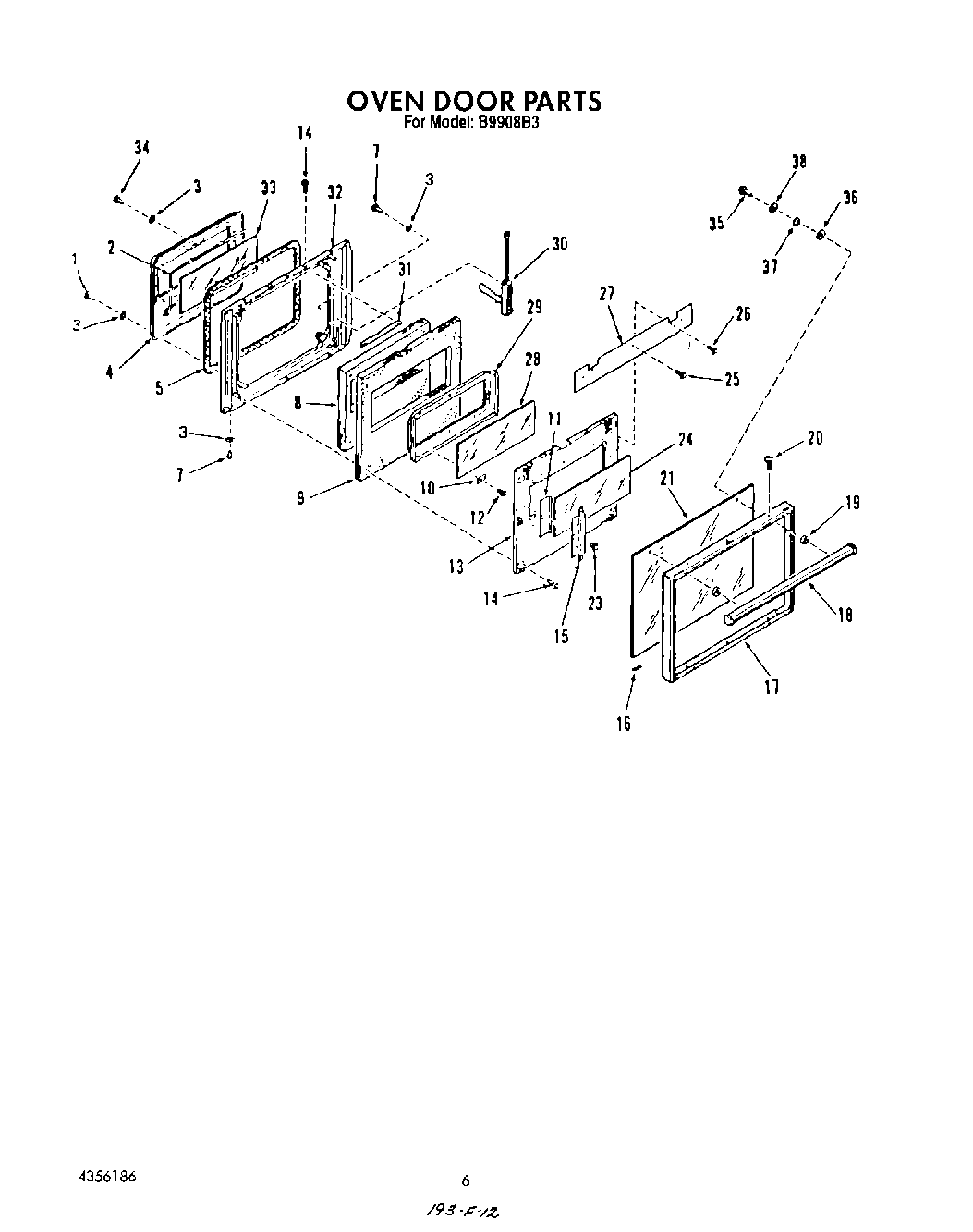

B9908B3 05 – OVEN DOOR , LIT/OPTIONAL
Written by
in
B9908B3 05 – OVEN DOOR , LIT/OPTIONAL
Products
Position
Product
1
WP308685 Whirlpool Microwave Screw
2
Seal, Inner Glass
3
Washer
4
Plug-Oven Door
5
Seal-Oven Door
7
Screw No.10-32×3/8
8
Insulation-Oven Door Plug
9
Insulation-Oven Door Lining
10
Retainer
11
Spacer, Glass (Lt/Rt)
12
Screw, No.10-32 x 17/32
13
Retainer-Insul. Oven Door
14
W10850756 Whirlpool Screw
15
Clamp, Glass (Lt/Rt)
16
Cushion
17
Frame, Black
18
Handle, Black
19
Spacer, Dr. Handle
20
Screw 6-20×3/8
21
Glass, Outer Door (Black Model)
23
Screw No.10 x 3/4
24
Glass-Intermediate
26
Screw No.6-32×3/16“
27
Baffle-Door Lining
28
Glass, Inner Door
30
Hinge-Door (Lt/Rt)
31
Support, Lining
32
Lining-Oven Door
33
Glass-Inner
34
Screw, No.10 x 1
35
WP999367 Whirlpool Refrigerator Screw
36
Washer, Fiber
37
Spacer, Glass Door
38
Washer
←
