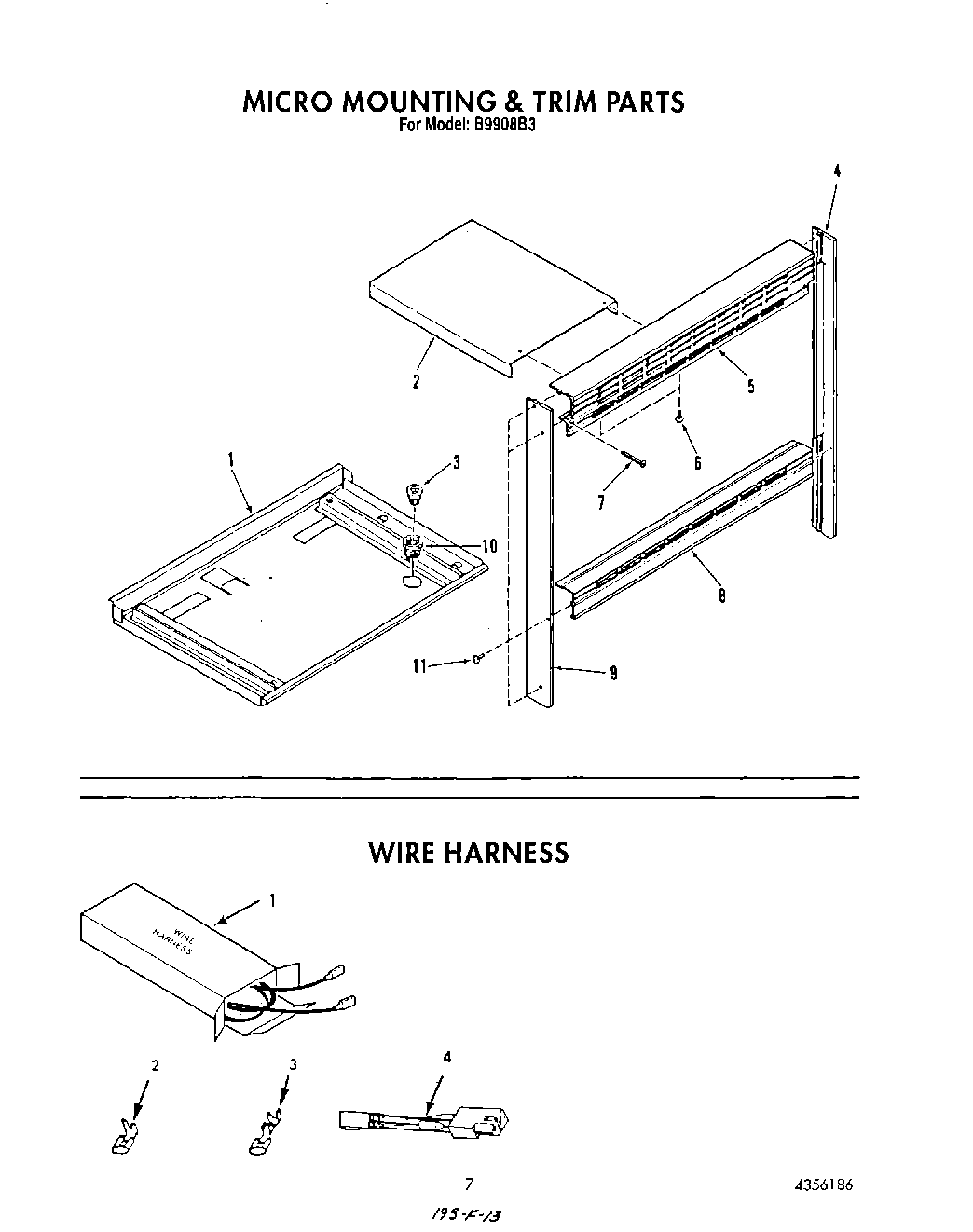

B9908B3 06 – MICRO MOUNTING AND TRIM , WIRE HARNESS

Products

PositionProduct
1Wire Harness (Main)
1Wire Harness (Lock)
1Bottom Support, Module
1WPL 4337736
1Wire Harness (Sensor)
2Flag Terminal
2Extension, Vent
3WP285432 Whirlpool Terminal
3Wire Harness (3/16“)
3Fuse
4Trim-Right Side
4Faston Terminal, (Thermal Fuse)
5Trim-Top
6W10850756 Whirlpool Screw
7Screw, No.10-2 x 1/2
8Trim, Lower
9Trim-Left Side
10Holder, Fuse
11Screw No.6-32×1/2
