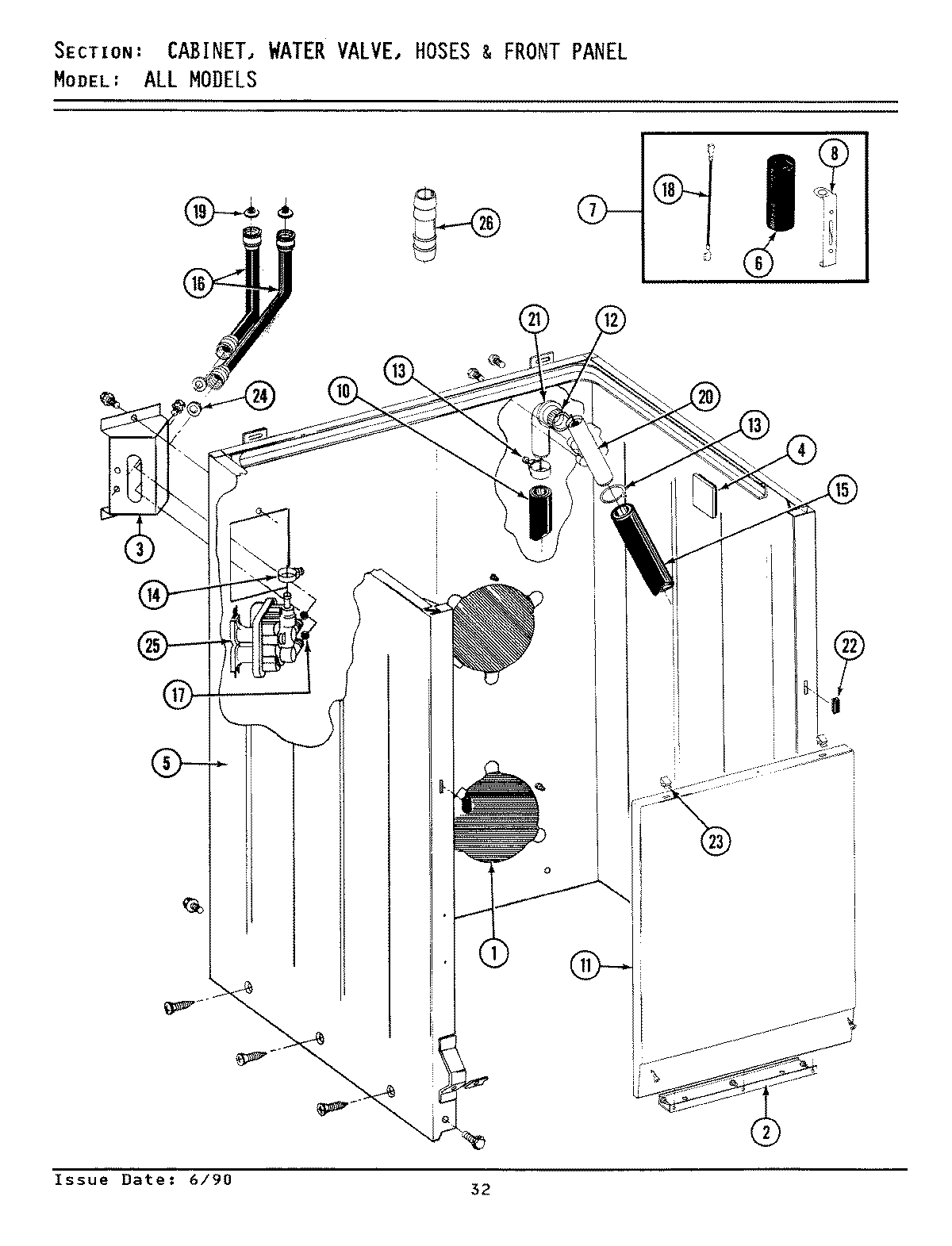

BA8100 01 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Products

PositionProduct
NIMAY 202861
1MAY 211878
2WP90767 Whirlpool Screw
2MAY 213846
3MAY 214812
4MAY 215058
5WP27001200 Whirlpool Screw
5SCREW & FSTNER ASSY (FT. PNL)
5WPW10346892 Whirlpool Screw
5213007 Whirlpool Screw #12
6MAY Y200832
7MAY 206103
8MAY 211149
10MAY Y059149
10WP22003410 Whirlpool Drain Hose
10MAY 216017
12WP214765 Whirlpool Gasket
13MAY 200908
13MAY 200461
14WP596669 Whirlpool Hose Clamp
15MAY 214767
16202860 Whirlpool Inlet Hose 5 FT
16WP76314 Whirlpool Fill Hose
16MAY 200681
16MAY 205828
17WP96160 Whirlpool Washer Inlet Valve Screen
18MAY 203237
19MAY 200961
20WPY014874 Whirlpool Screw
20206638 Whirlpool Break Siphon Connector Kit
21MAY 214764
21WPW10116738 Whirlpool Elbow Connector
22MAY 214376
23MAY 212982
24MAY Y013783
25MAY 212276
25205613 Whirlpool Washer Water Inlet Valve
26MAY Y216015
