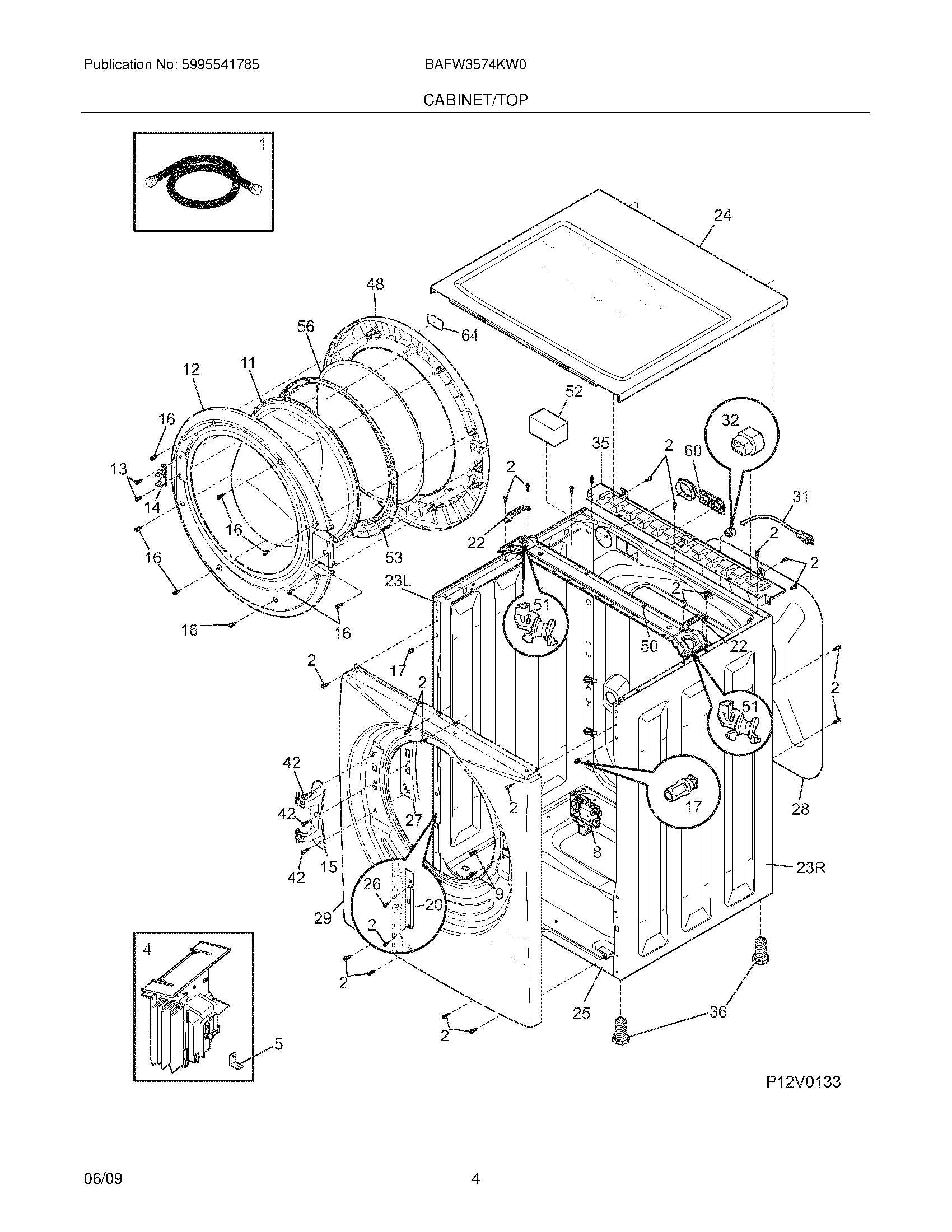

BAFW3574KW0 05 – CABINET/TOP

Products

Position	Product
NI	WCI 134434900
NI	WCI 134606800
NI	134591500 Frigidaire Transport Plug Kit
NI	WCI 134547600
NI	134629400 Frigidaire Screw
NI	134178901 Frigidaire Screw
NI	WCI 134554500
NI	WCI 137021610
NI	WCI 134889700
NI	WCI 137021600
NI	134876501 Frigidaire Clip
1	5303912532 Frigidaire Hose Inlet 60"
2	131168200 Frigidaire Dryer Screw
4	134743500 Frigidaire Washer Electronic Control Board Motor
5	134522900 Frigidaire Bracket
8	DOOR LOCK/SWITCH ASSY
9	131302800 Frigidaire Drum Vane Screw
11	134366400 Frigidaire Panel
12	134550702 Frigidaire Frame
13	131302901 Frigidaire Screw
14	131763302 Frigidaire Washer Door Strike
15	WCI 134550800
16	131205300 Frigidaire Screw
17	134638700 Frigidaire Clip
20	WCI 134434901
22	134648500 Frigidaire Spring Bracket
23L	WCI 134775310
23R	WCI 134775210
24	137371700 Frigidaire Panel
25	WCI 134775500
26	WCI 134521600
27	134550900 Frigidaire Hinge Bracket
28	WCI 134364300
29	WCI 137021811
31	5304505407 Frigidaire Cord
32	5303209428 Frigidaire Serv.Cord Bushing
35	WCI 134365100
36	134548800 Frigidaire Washer Leg Levelling
42	137380600 Frigidaire Screw – M5 x 0.8
48	WCI 134601525
50	WCI 134645600
51	134655800 Frigidaire Protector
52	131931202 Frigidaire Dampener
53	134551300 Frigidaire Ring
56	137577700 Frigidaire Glass
60	134372000 Frigidaire Grommet
64	WCI 137166825
