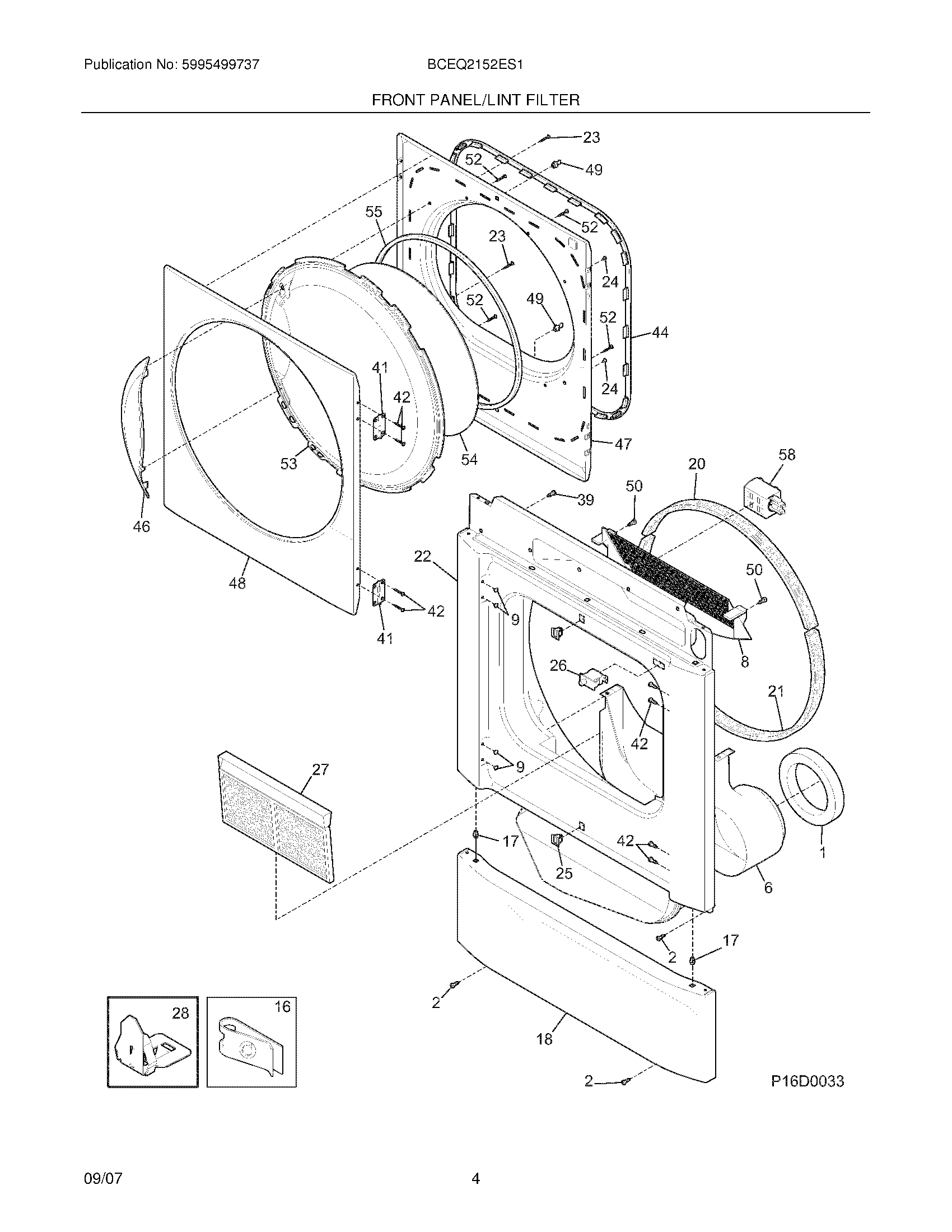

BCEQ2152ES1 05 – FRONT PANEL/LINT FILTER

Products

Position	Product
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
NI	134430300 Frigidaire Screw
1	134417000 Frigidaire Seal
2	131168200 Frigidaire Dryer Screw
6	WCI 134382900
8	WCI 131845802
9	131633200 Frigidaire Plug
17	WCI 134408700
18	134321702 Frigidaire Toe Panel
20	134440200 Frigidaire Seal Felt Drum
21	5303937183 Frigidaire Dryer Lower Front Felt Seal
22	WCI 134915502
23	131382300 Frigidaire Screw-VANE
24	WCI 134465100
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813601 Frigidaire Dryer Door Switch 3-Wire
27	131450300 Frigidaire Dryer Lint Screen Filter
28	WCI 134440000
39	131205100 Frigidaire Screw
41	134412400 Frigidaire Hinge Assembly
42	134156200 Frigidaire Screw
44	WCI 134413300
46	WCI 134472203
47	WCI 134913304
48	WCI 134913103
49	5303207102 Frigidaire Door Strike
50	131302800 Frigidaire Drum Vane Screw
52	131243700 Frigidaire Screw
53	WCI 134443203
54	WCI 134611800
55	134580300 Frigidaire Gasket
