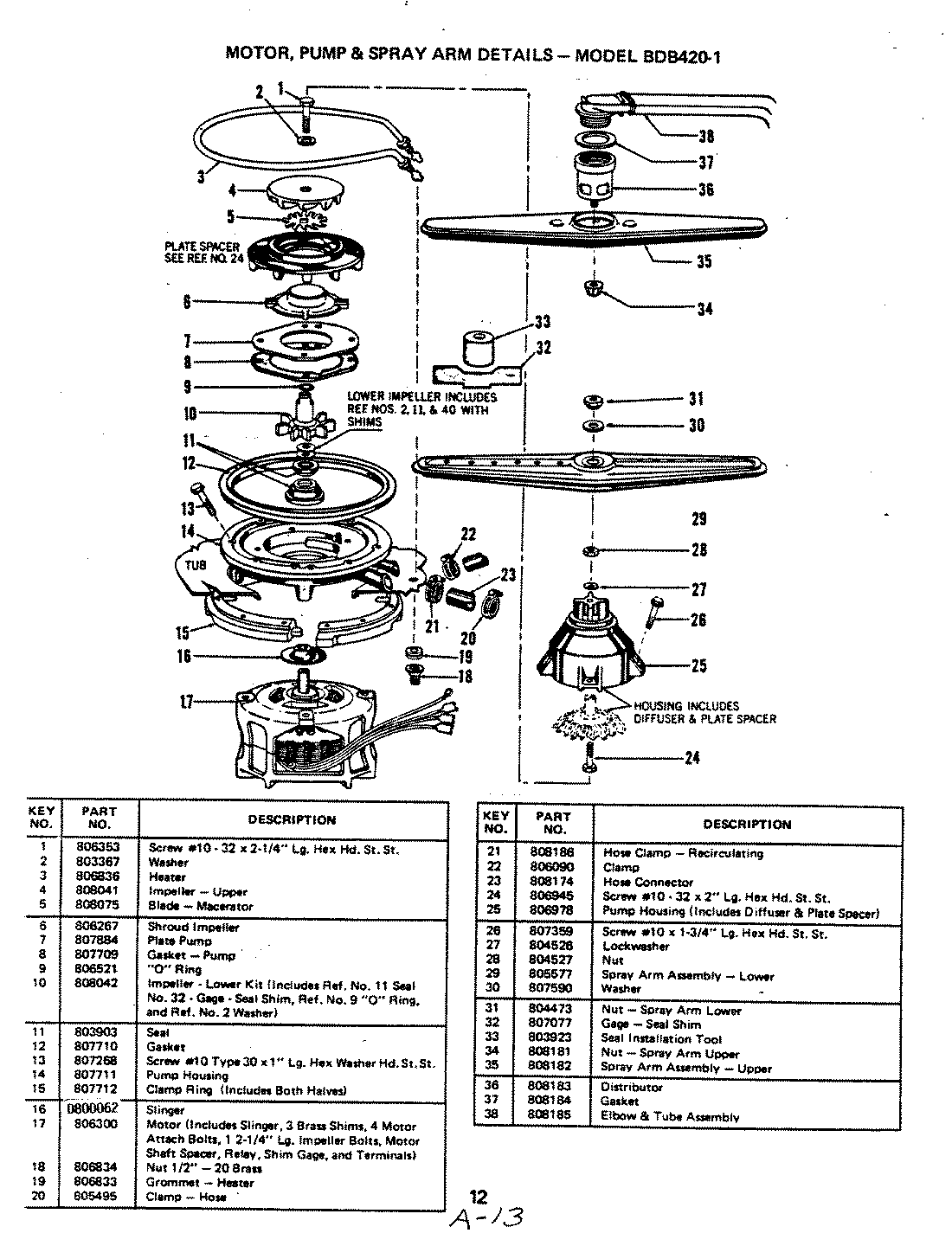

BDB420-1 07 – MOTOR, PUMP & SPRAY ARM (BDB420-1)

Products

Position	Product
1	MAY 806353
2	MAY 803367
3	HEATER KIT
4	UPPER IMPELLER
5	MACERATOR BLADE
6	SHROUD
7	PUMP PLATE
8	GASKET
9	O RING
10	IMPELLER KIT
11	GASKET
12	MAY 807710
13	MAY 807268
14	PUMP HOUSING
15	CLAMP RING
16	MAY 800062
17	MOTOR
18	NUT
19	GROMMET
20	CLAMP
21	MAY 808186
22	CLAMP
23	HOSE CONNECTOR
24	MAY 806945
25	PUMPHOUSING KIT
26	SCREW
27	MAY 804526
28	MAY 804527
29	LWR SPRAY ARM
30	WASHER
31	MAY 804473
32	SHIM GAUGE
33	SEAL TOOL
34	MAY 808181
35	MAY 808182
36	MAY 808183
37	MAY 808184
38	ELBOW & TUBE
