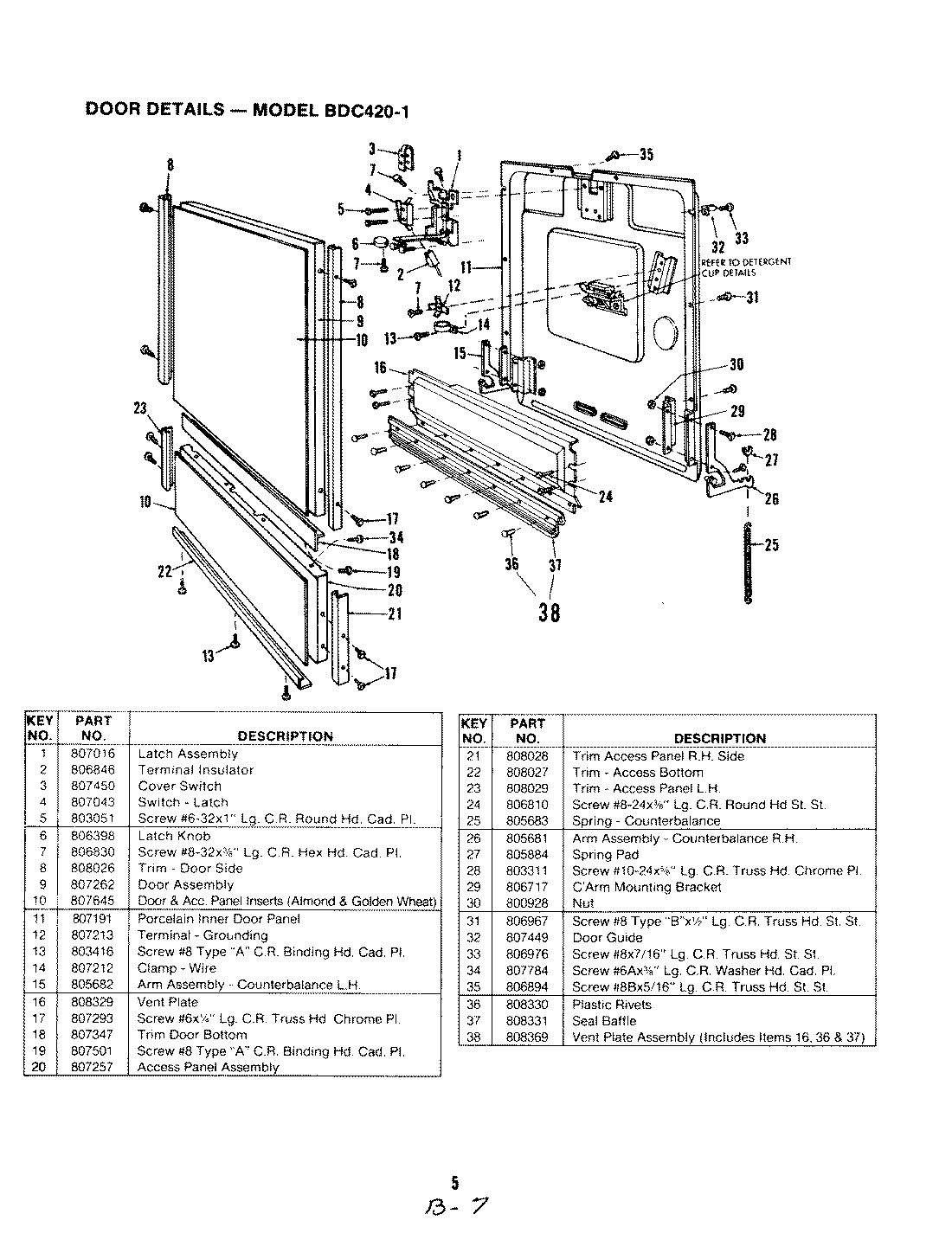

BDC420-1 04 – DOOR DETAILS (BDC420-1)

Products

Position	Product
1	LATCH ASM
2	INSULATOR
3	SWITCH COVER
4	MAY 807043
5	MAY 803051–
6	MAY 806398
7	SCREW
8	DOOR TRIM
9	OUTER PANEL
10	INSERT, DOOR PANEL
11	INNER PANEL
12	GROUND TERMINAL
13	SCREW
14	MAY 807212
15	LH ARM
16	MAY 808329
17	MAY 807293
18	DOOR TRIM
19	MAY 807501
20	PANEL
21	RH TRIM
22	BOTTOM TRIM
23	LH TRIM
24	SCREW
25	DOOR SPRING
26	RH ARM
27	SPRING PAD
28	MAY 803311
29	ARM BRACKET
30	MAY 800928
31	SCREW
32	DOOR GUIDE
33	MAY 806976
34	MAY 807784
35	SCREW
36	MAY 808330
37	MAY 808331
38	VENT BAFFLE
