BDC420-1 06 – FRAME DETAILS – Aparts

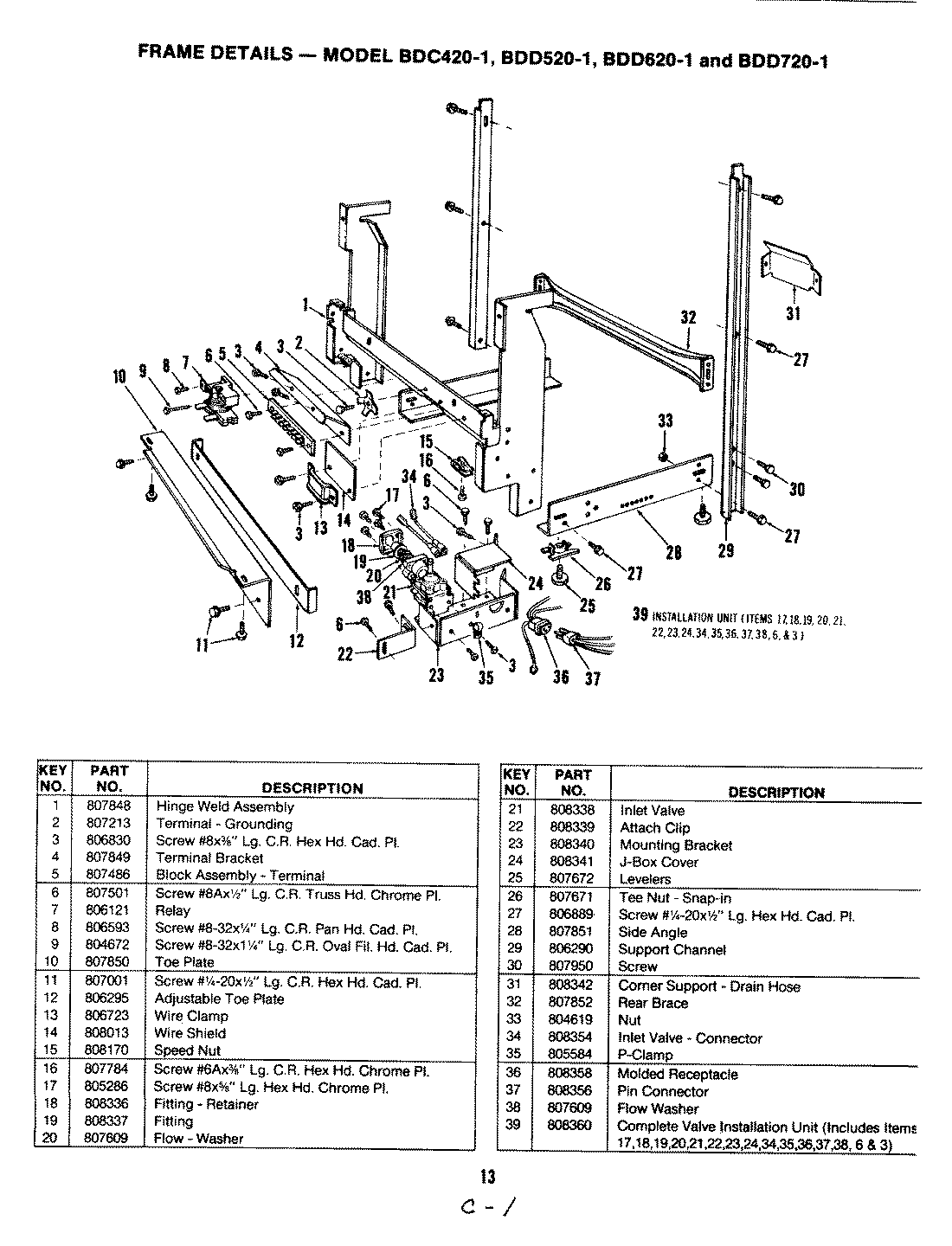

BDC420-1 06 – FRAME DETAILS

Products

Position	Product
1	MAY 807848
2	GROUND TERMINAL
3	SCREW
4	MAY 807849
5	MAY 807486
6	MAY 807501
7	SUB 805255
8	MAY 806593
9	MAY 804672
10	TOE PLATE
11	SCREW
12	TOE PLATE
13	CLAMP
14	WIRE SHIELD
15	MAY 808170
16	MAY 807784
17	MAY 805286
18	FITTING RETAINR
19	FITTING
21	MAY 808338
22	MAY 808339
23	MAY 808340
24	MAY 808341
25	MAY 807672
26	TEENUT
27	MAY 806889
28	SIDE CHANNEL
29	CHANNEL
30	MAY 807950
31	MAY 808342
32	MAY 807852
33	MAY 804619
34	MAY 808354
35	MAY 805584
36	MAY 808358
37	MAY 808356
38	MAY 807609
39	MAY 808360
