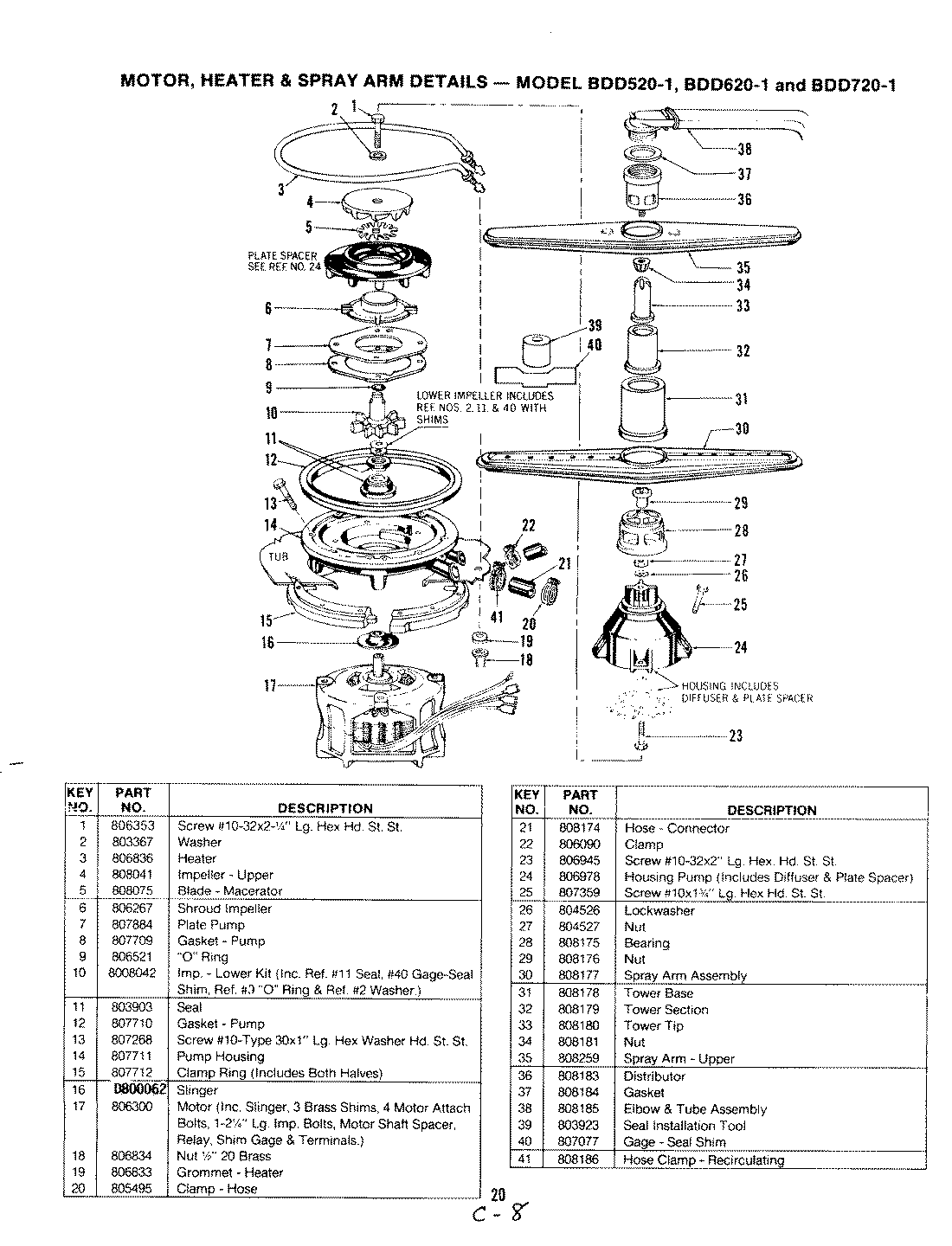

BDC420-1 07 – MOTOR, HEATER & SPRAY ARM (BDD520-1)

BDC420-1 07 – MOTOR, HEATER & SPRAY ARM (BDD520-1)

Written by

in

BDC420-1 07 – MOTOR, HEATER & SPRAY ARM (BDD520-1)

Products

PositionProduct
2MAY 803367
3HEATER KIT
4UPPER IMPELLER
5MACERATOR BLADE
6SHROUD
7PUMP PLATE
8GASKET
9O RING
10IMPELLER KIT
11GASKET
12MAY 807710
13MAY 807268
14PUMP HOUSING
15CLAMP RING
16MAY 800062
17MOTOR
18NUT
19GROMMET
20CLAMP
21HOSE CONNECTOR
22CLAMP
23MAY 806945
24PUMPHOUSING KIT
25SCREW
26MAY 804526
27MAY 804527
28LOWER BEARING
29NUT
30MAY 808177
31TOWER BASE
32MAY 808179
33MAY 808180
34MAY 808181
35UPR SPRAY ARM
36MAY 808183
37MAY 808184
38ELBOW & TUBE
39SEAL TOOL
40SHIM GAUGE
41MAY 808186
