BDC620-1 09 – TUB (BDC720-1) – Aparts

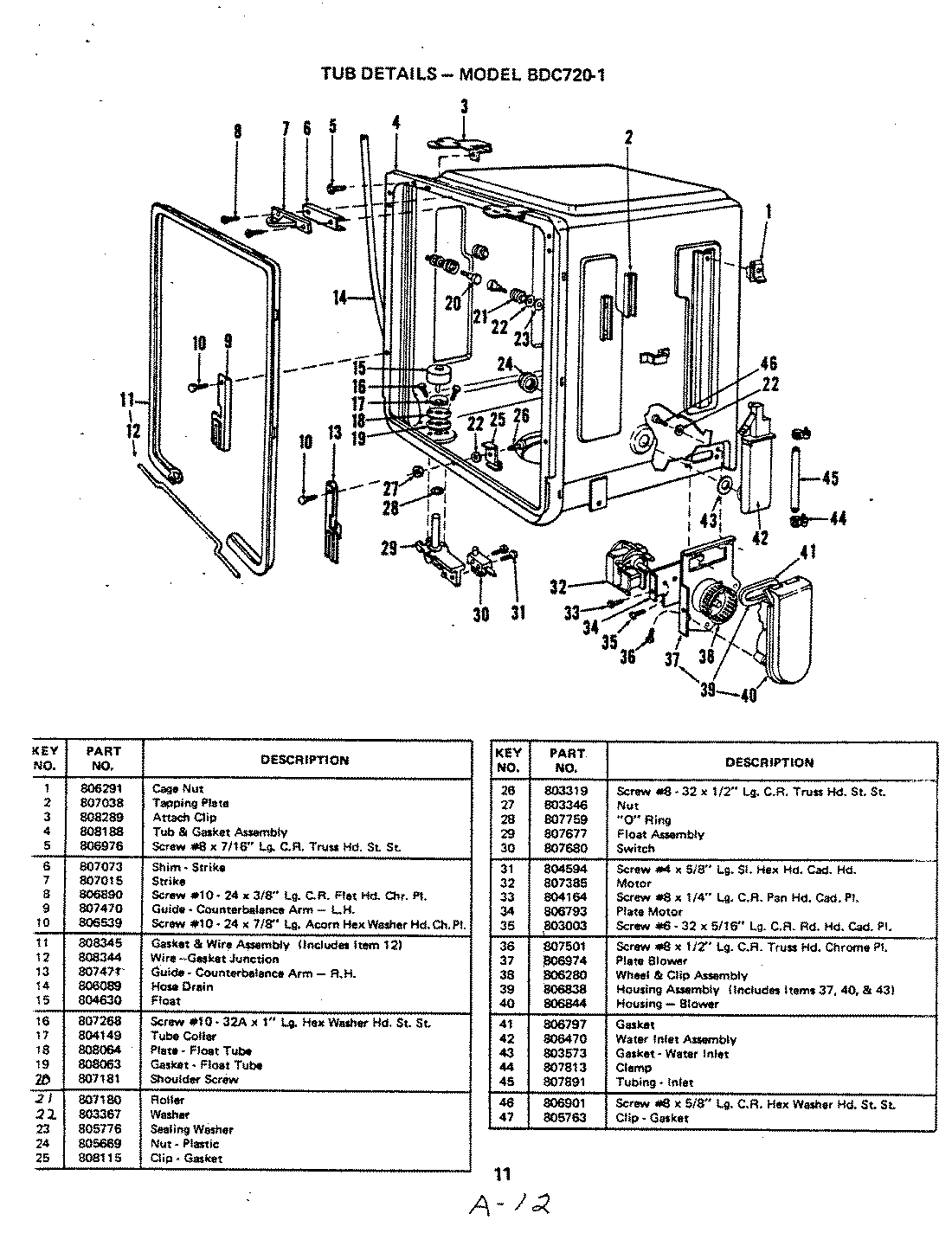

BDC620-1 09 – TUB (BDC720-1)

Products

Position	Product
NI	CLIP KIT (TUB GASKET)
2	TAPPING PLATE
3	CLIP
4	MAY 808188
5	MAY 806976
6	STRIKE SHIM
7	STRIKE
8	MAY 806890
9	LH GUIDE
10	MAY 806539
11	DOOR GASKET
12	WIRE,GASKT JUNC
13	RH GUIDE
14	MAY 806089
15	MAY 804630
16	MAY 807268
17	MAY 804149
18	PLATE, FLOAT TUBE
19	GASKET
20	SCREW
21	ROLLER
22	MAY 803367
23	SEALER
24	MAY 805669
25	MAY 808115
26	MAY 803319
27	MAY 803346
28	O RING
29	FLOAT ASM
30	FLOAT SWITCH
31	BOLT
32	BLOWER MOTOR
33	SCREW
34	PLATE
35	SCREW
36	MAY 807501
37	MAY 806974
38	MAY 806280
39	MAY 806838
40	MAY 806844
41	GASKET
42	MAY 806470
43	WASHER
44	MAY 807813
45	INLET TUBE
46	SCREW
