BDD520-1 11 – TUB (BDC420-1) – Aparts

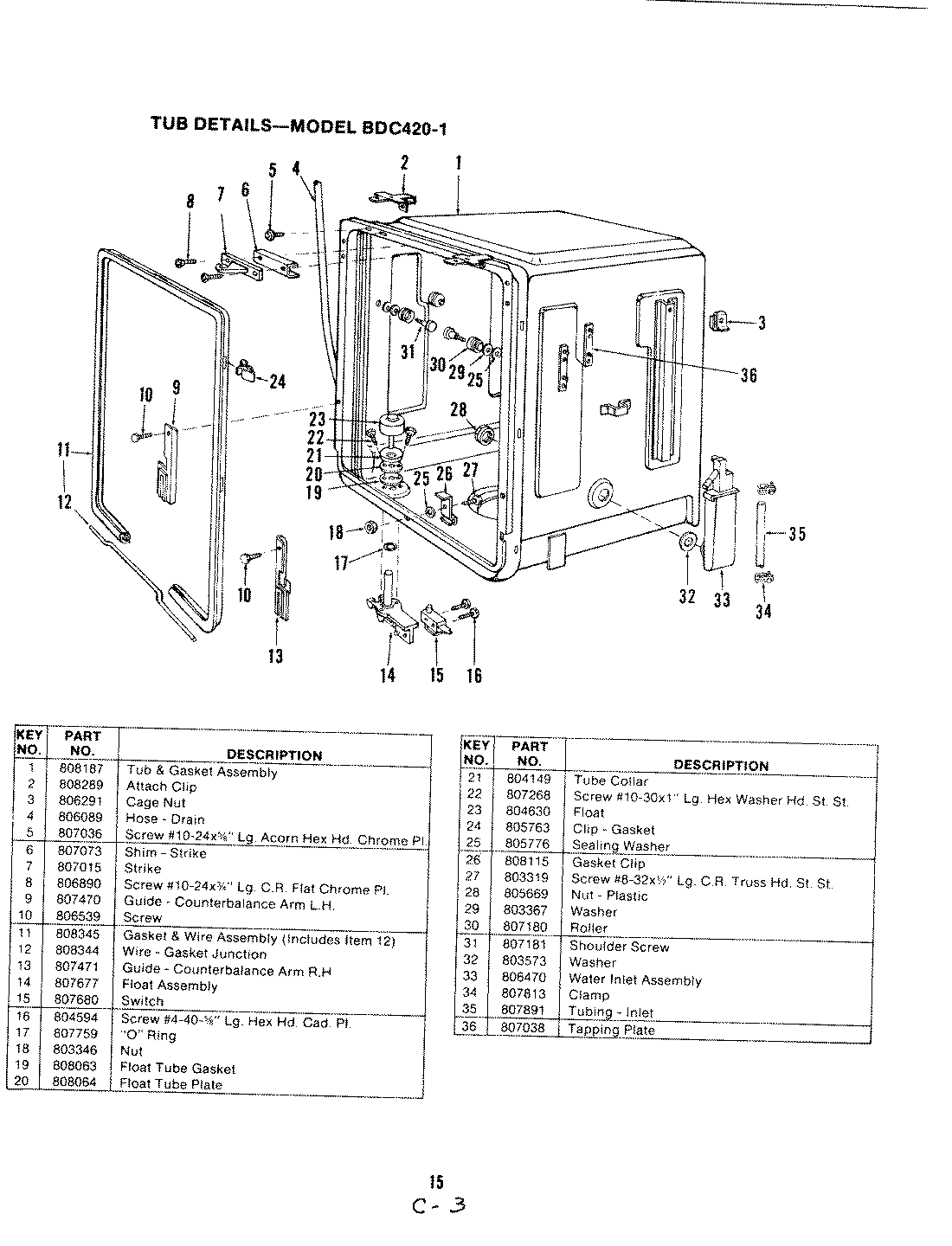

BDD520-1 11 – TUB (BDC420-1)

Products

Position	Product
2	CLIP
3	MAY 806291
4	MAY 806089
5	SCREW
6	STRIKE SHIM
7	STRIKE
8	MAY 806890
9	LH GUIDE
10	MAY 806539
11	DOOR GASKET
12	WIRE,GASKT JUNC
13	RH GUIDE
14	FLOAT ASM
15	FLOAT SWITCH
16	BOLT
17	O RING
18	MAY 803346
19	GASKET
20	PLATE, FLOAT TUBE
21	MAY 804149
22	MAY 807268
23	MAY 804630
24	CLIP KIT (TUB GASKET)
25	SEALER
26	MAY 808115
27	MAY 803319
28	MAY 805669
29	MAY 803367
30	ROLLER
31	SCREW
32	WASHER
33	MAY 806470
34	MAY 807813
35	INLET TUBE
36	TAPPING PLATE
