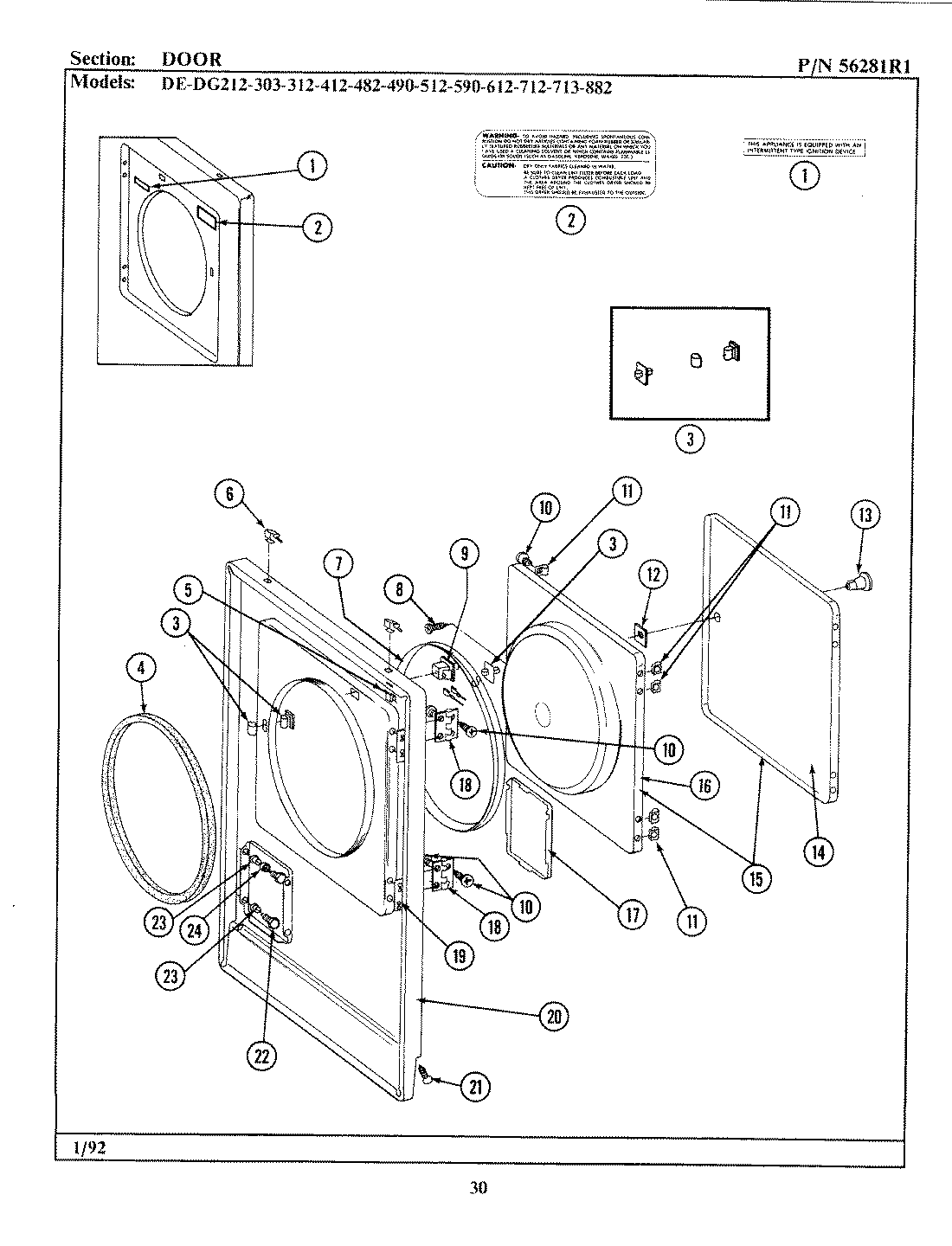

BDE590 01 – DOOR

Written by

BDE590 01 – DOOR

Products

Position	Product
2	MAY Y313927
3	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
5	MAY Y310376
6	MAY 212982
7	MAY 314077
8	WP400021-1 Whirlpool Screw
9	W10169313 Whirlpool Door Switch Kit
11	CLIP, DOOR LINER
12	MAY Y313911
13	MAY 303942
16	MAY 305835
16	MAY 306676
18	MAY Y304577
19	MAY Y313907
21	SCREW & FSTNER ASSY (FT. PNL)
