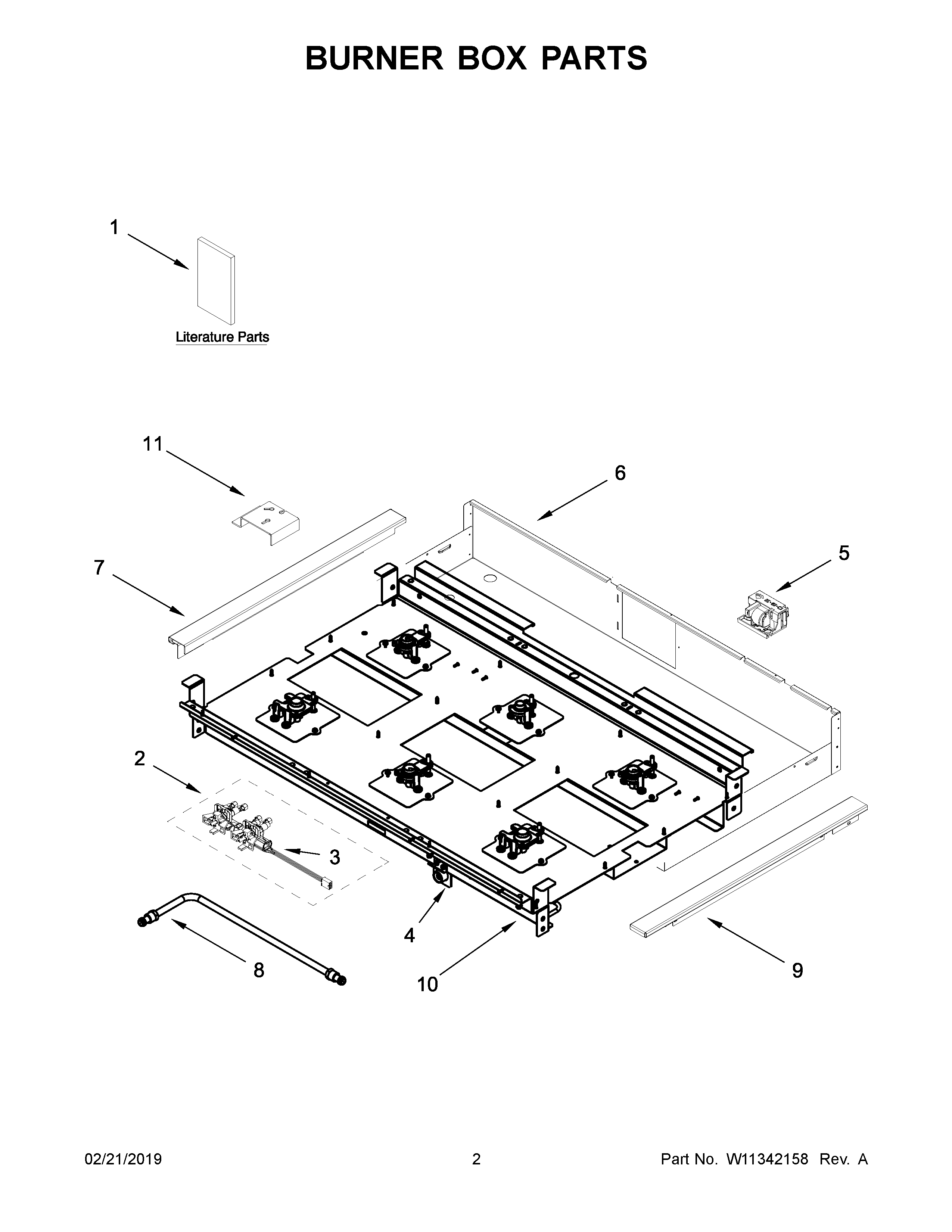

BDR90ARNNA00 02 – BURNER BOX PARTS

BDR90ARNNA00 02 – BURNER BOX PARTS

Written by

in

BDR90ARNNA00 02 – BURNER BOX PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11213527 Whirlpool Wire Harness Assembly
NIW11038934 Whirlpool Wire Harness
NICORD, POWER
1ADIAGRAM, WIRING (COOKTOP)
1GUIDE, USE AND CARE
2BASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
2AASSEMBLY, VALVE MANIFOLD (CENTER FRONT AND CENTER REAR)
2ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
3W11344433 Whirlpool Wire Harness
4BRACKET, MANIFOLD
5W11319687 Whirlpool Spark Module
7W11339740 Whirlpool Trim
8BTUBE, MANIFOLD SUPPLY (RIGHT)
8ATUBE, MANIFOLD SUPPLY (CENTER)
8TUBE, MANIFOLD SUPPLY (LEFT)
9W11339741 Whirlpool Trim
11Bracket, Mounting Orifice
