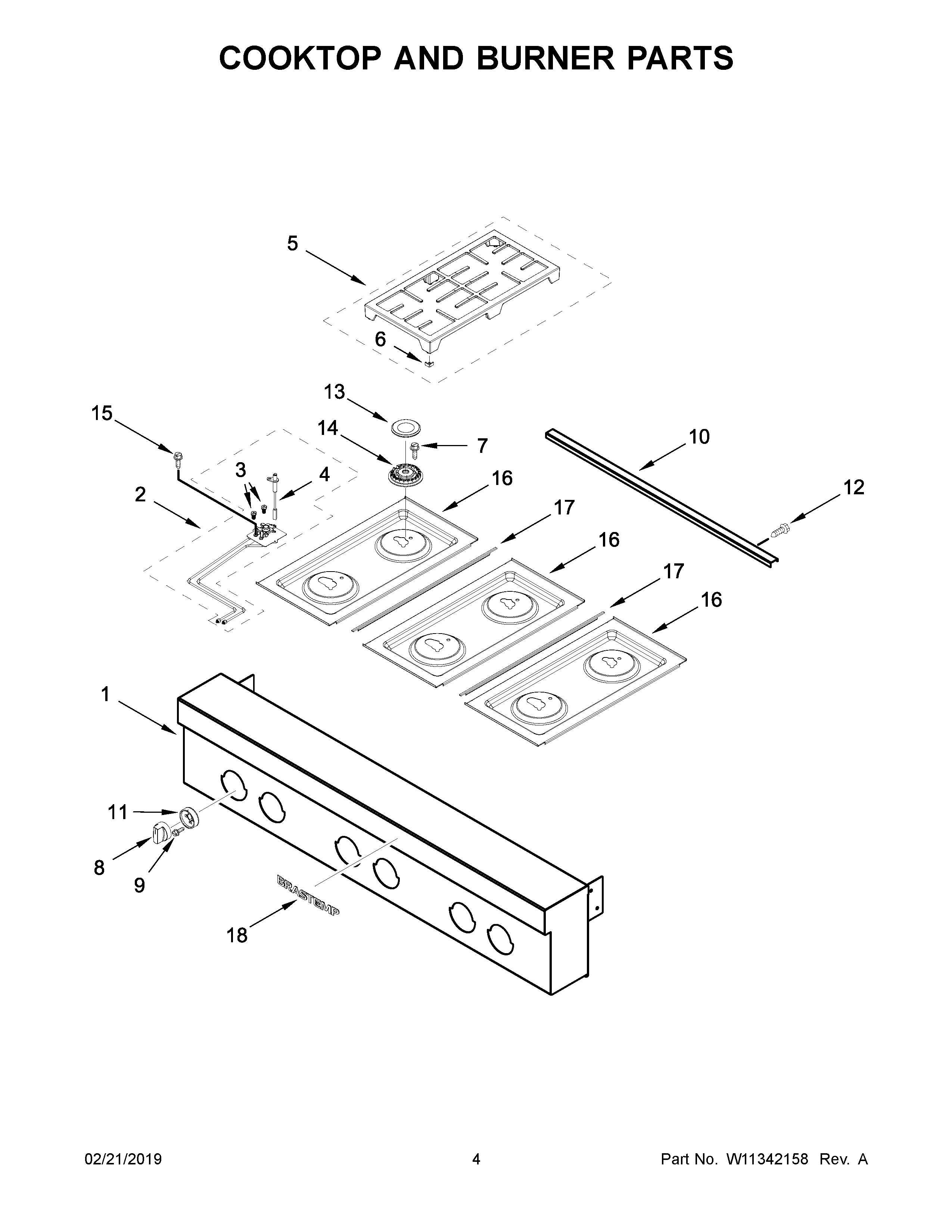

BDR90ARNNA00 03 – COOKTOP AND BURNER PARTS

Products

PositionProduct
1W11444496 Whirlpool Console + Core
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR AND RIGHT REAR)
2BASSEMBLY, ORIFICE HOLDER (CENTER FRONT)
2CASSEMBLY, ORIFICE HOLDER (CENTER REAR)
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT AND RIGHT FRONT)
3AORIFICE, SIMMER (2.5K BTU LP) (LEFT FRONT, CENTER REAR, RIGHT FRONT)
3ORIFICE, MAIN (12.0K BTU LP) (ALL BUT CENTER REAR)
4W11580024 Whirlpool Surface Igniter
4AW11628654 Whirlpool Surface Igniter
5W11344501 Whirlpool Burner Grate
6W11314395 Whirlpool Grate Pad
7AW11227370 Whirlpool Refrigerator Screw
7SCREW (LEFT FRONT AND RIGHT FRONT)
8AKNOB, SINGLE (STAINLESS (LEFT REAR, CENTER FRONT, CENTER REAR, RIGHT REAR))
8KNOB, DUAL (STAINLESS (LEFT FRONT AND RIGHT FRONT))
9W11404293 Whirlpool Screw
10W10269217 Whirlpool Trim Top Assembly
11BEZEL, FRONT (STAINLESS)
11ABEZEL, REAR (STAINLESS)
12SCREW
13W11344538 Whirlpool Surface Burner Cap
14BW11344746 Whirlpool Burner Head
14AW11344742 Whirlpool Burner Head
14W11344539 Whirlpool Burner Head
15SCREW
16BW11344761 Whirlpool Cooktop
16AW11344757 Whirlpool Cooktop
16W11344755 Whirlpool Cooktop
17W10271524 Whirlpool Trim Top
18WPL W11292869
