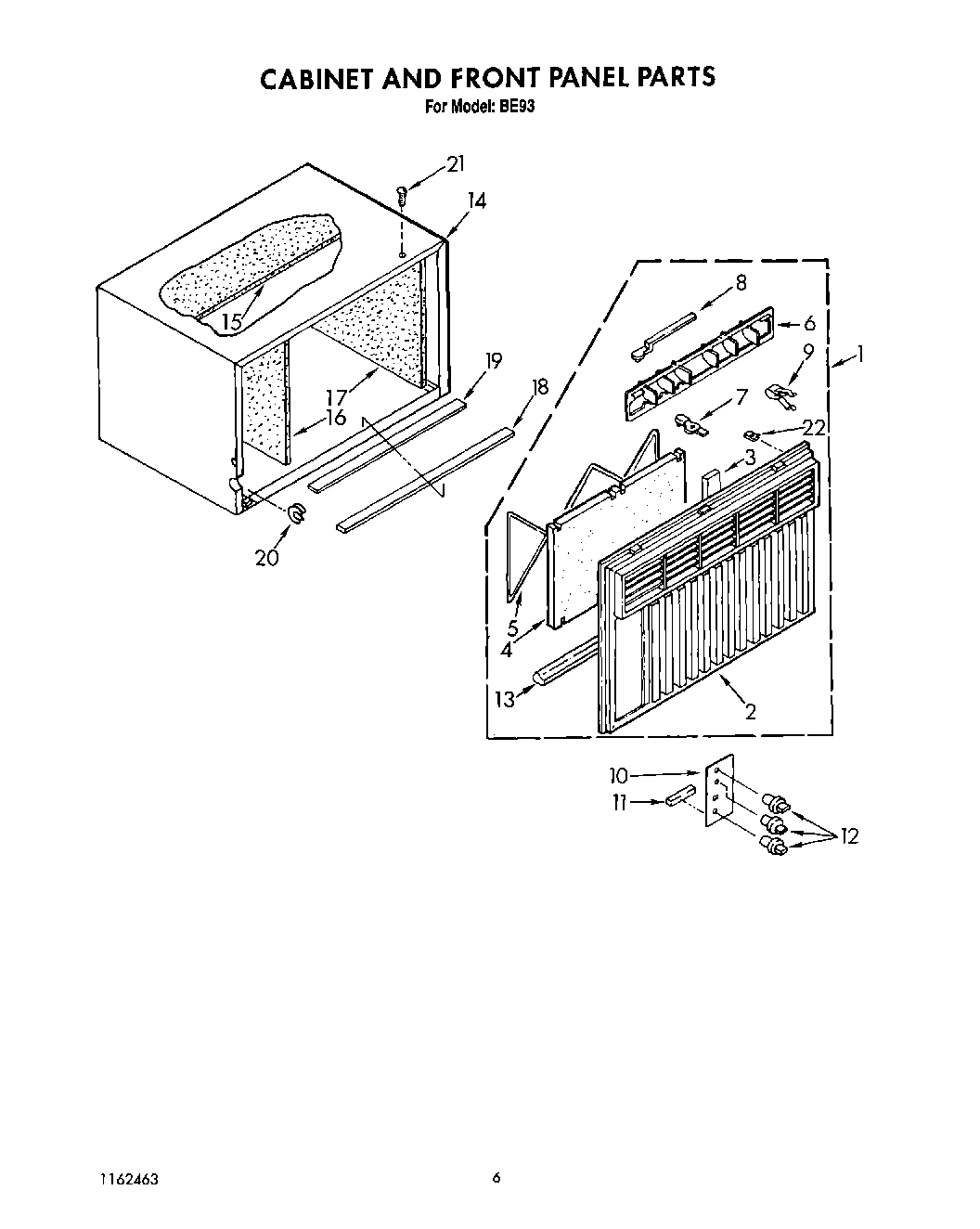

BE93 04 – CABINET AND FRONT PANEL

Products

PositionProduct
1Front Assembly, Cabinet (Complete)
2Front, Cabinet
3WP854334 Whirlpool Air Conditioner Sealing Strip
3Seal
4Filter
5Retainer, Filter
6Louver, Vertical
7Handle, Vertical Louver
8Link, Vert. Louver (2)
9Detent Spring (2)
10Plate, Escutcheon
11Spacer, Escutcheon Plate (3)
12Knob, Control (3)
13Seal
14Cabinet
15xInsulation, Cabinet (Top)
16Insulation, Cabinet (L.S.)
17WPL 647847
19Seal
20Grommet, Appliance Cable
21Screw (2)
22Clip, Cabinet Front (2)
