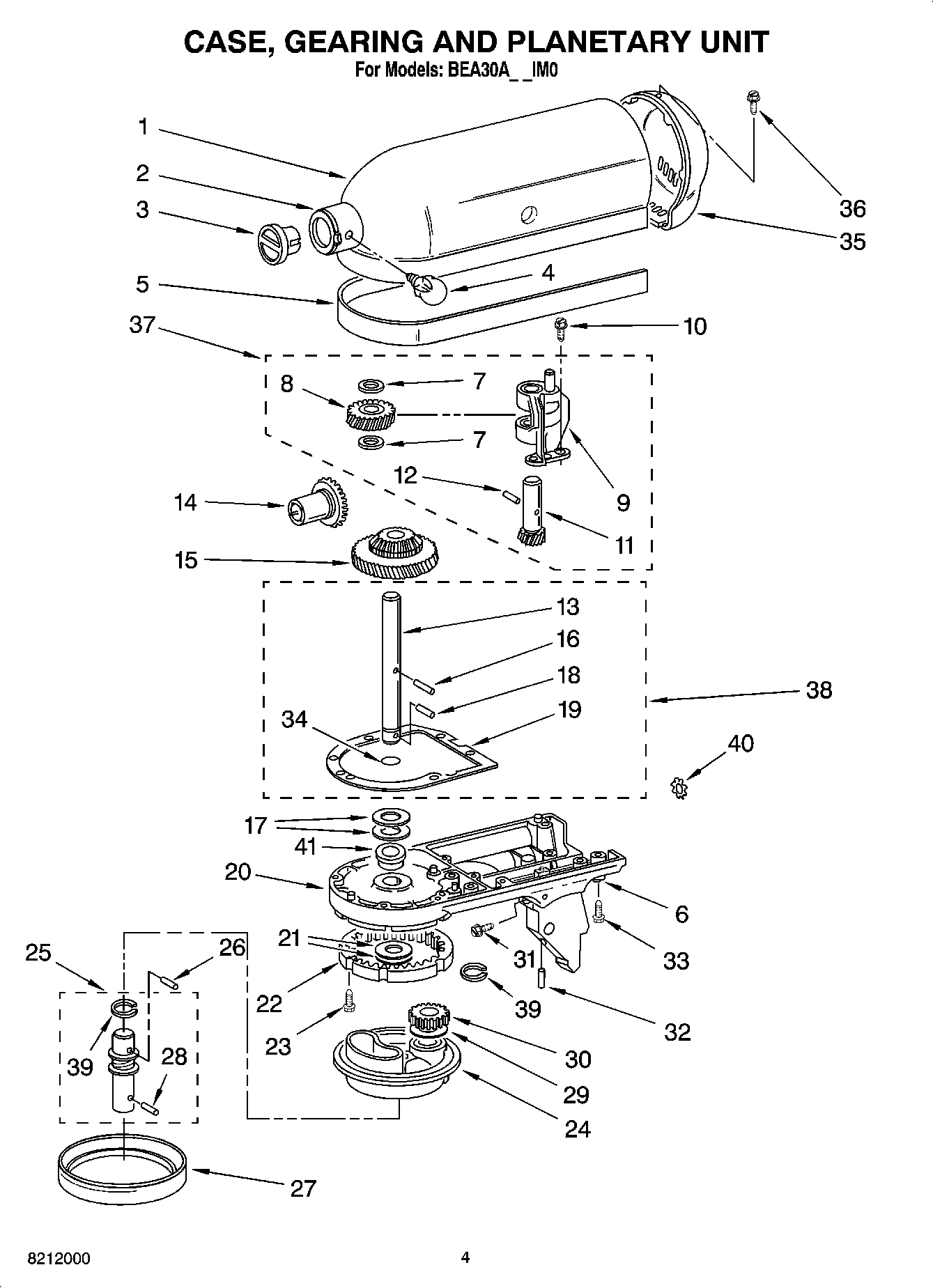

BEA30AEAIM0 03 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
1	Gearcase Motor Housing (Includes Illus 2)
2	4159709 Whirlpool Ring
3	Cap, Attachment Hub
4	WP9709194 Whirlpool Black Thumb Screw
5	Band, Trim
6	WP8533914 Whirlpool Lock
7	WPW10323373 Whirlpool Washer
8	WPW10112253 Whirlpool Gear Assembly
9	W11082541 Whirlpool Bearing
10	W11097298 Whirlpool Dishwasher Screw
11	Shaft & Pinion
12	WP9705444 Whirlpool Pin Groove
13	WP240026 Whirlpool Control Shaft
14	W11192794 Whirlpool HUB Gear
18	WP9705443 Whirlpool Pin Groove
19	WP4162324 Whirlpool Case Gasket
20	Lower Gear Case
21	WPW10323378 Whirlpool Washer
22	W11340106 Whirlpool Gear Assembly
23	Screw, Special (5)
24	Planetary
25	WP243368 Whirlpool Agitator Shaft
26	Pin (Vertical Center Shaft)
27	WP240285 Whirlpool Drip Ring
28	W11664709 Whirlpool Groove Pin
29	Washer, Shim (.015“ Thk.) (.031“ Thk.)
30	W11133645 Whirlpool Pinion Gear
31	W11028216 Whirlpool Screw
32	WP3400203 Whirlpool Screw
33	WP3400025 Whirlpool Screw
34	O RING
35	Cover, End
36	WP241877 Whirlpool Screw
37	GEAR, WORM AND BRACKET
38	4160474 Whirlpool Control Shaft
39	WP9703438 Whirlpool Snap Retaining Ring
40	W11170663 Whirlpool Washer
41	WP16897 Whirlpool Bearing
