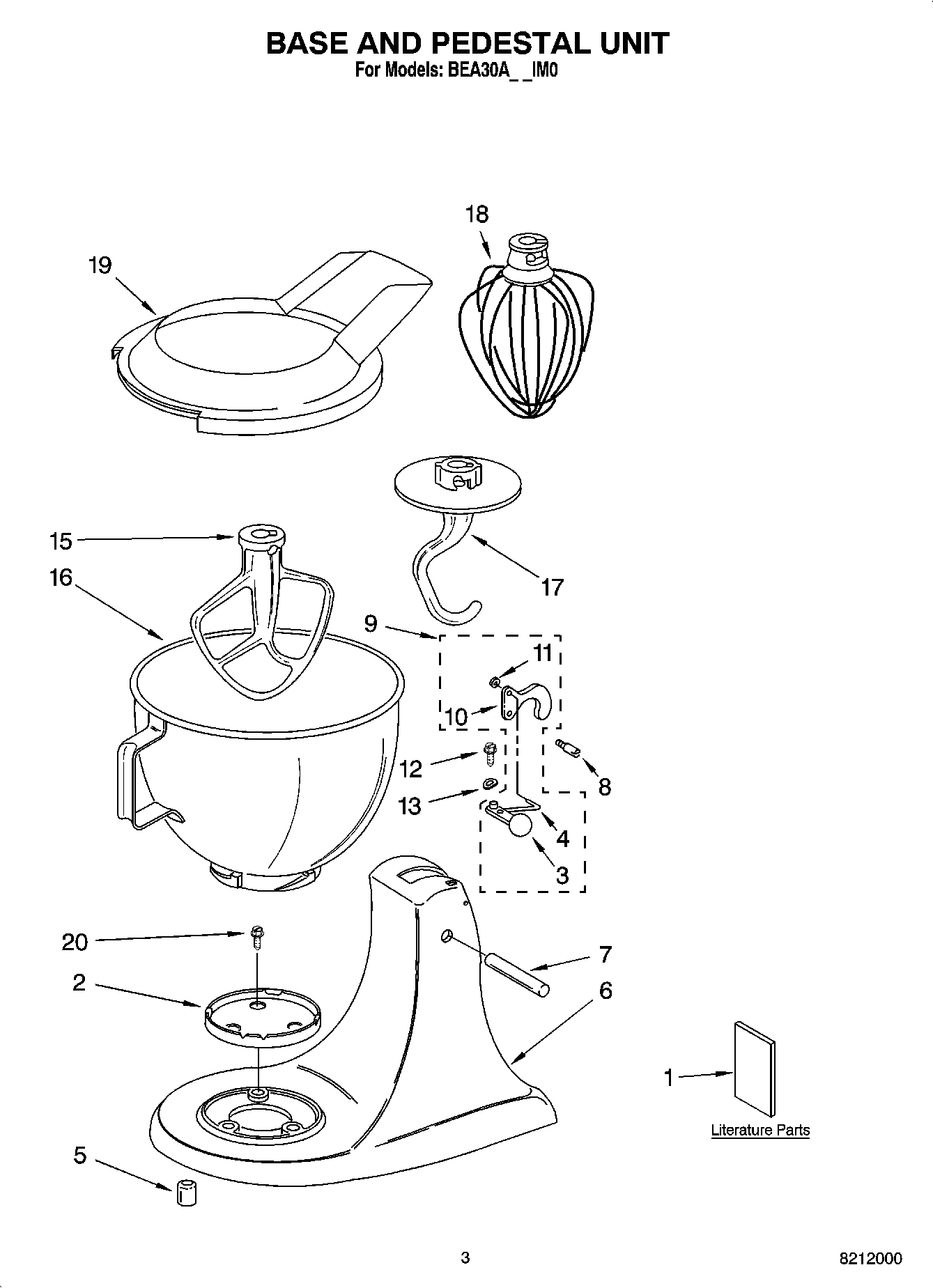

BEA30ATAIM0 02 – BASE AND PEDESTAL UNIT

BEA30ATAIM0 02 – BASE AND PEDESTAL UNIT

Written by

in

BEA30ATAIM0 02 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1Use & Care Guide
2WPW10191926 Whirlpool Cap Screw
3WP9709280 Whirlpool Latch Lever
4W11232016 Whirlpool Latch Link
5Foot, Base
6Pedestal
7WP16910 Whirlpool Dowel Pin
8103993 Whirlpool Screw
9WP24452 Whirlpool Latch Lever
10W11246352 Whirlpool Latch Mechanism
11W11218705 Whirlpool Washer Assembly
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
15WPW10672617 Whirlpool Stand Mixer Flat Beater
16W10802058 Whirlpool Mixer Bowl
17WPW10674618 Whirlpool Dough Hook
18WP9704329 Whirlpool Wire Whip
19W11312468 Whirlpool Pour Shelf
20SCREW
