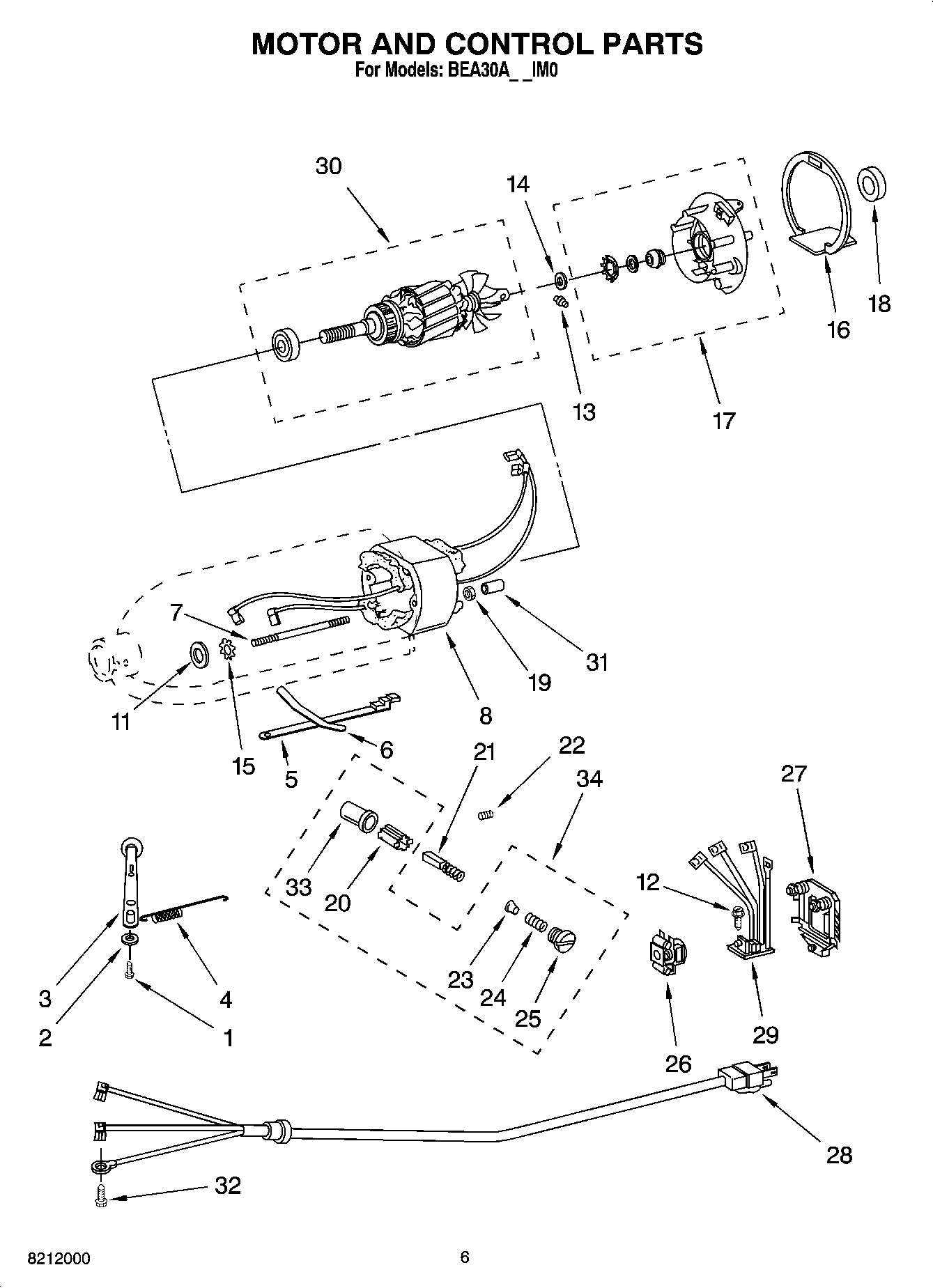

BEA30AVAIM0 04 – MOTOR AND CONTROL PARTS, ACCESSORY PARTS

BEA30AVAIM0 04 – MOTOR AND CONTROL PARTS, ACCESSORY PARTS

Written by

in

BEA30AVAIM0 04 – MOTOR AND CONTROL PARTS, ACCESSORY PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5Speed Link & Cam
6WP240205 Whirlpool Spring
7W10851015 Whirlpool Stat Screw
8W10870869 Whirlpool Field Assembly
11WP9704324 Whirlpool Washer
12W11084238 Whirlpool Screw Assembly
13WP16998 Whirlpool Drive Stud
14W11233557 Whirlpool Washer
15W11170663 Whirlpool Washer
16SEAL, END
17WP3180526 Whirlpool Bearing Bracket
18WASHER
198533905 Whirlpool Nut
20W11656718 Whirlpool Insert
21WPW10380496 Whirlpool Stand Mixer Motor Brush
22W11176201 Whirlpool Screw
23WP116286 Whirlpool Spring Cap
24WP116287 Whirlpool Spring Cap
25WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
26WPW10330804 Whirlpool Speed Governor
27Control Plate Assembly
28Power Cord (Black)
29WPW10325124 Whirlpool Phase Board
30W11133634 Whirlpool Armature
31W11210996 Whirlpool Sleeve
32Screw
33WP3179908 Whirlpool Brush Holder
34MAKER, ICE CREAM (KICA0WH)
34WPL 3180617
34Speed Disc (Service Tool)
34Grain Mill, KGMA
344162546 Whirlpool Brush Holder
34Bowl Cover, Plastic Non-Sealing
34Bowl,
34CAN OPENER (CO)
34Food Tray (FT)
34SAUSAGE STUFFER KIT (SSA)
34FOOD GRINDER (FG-A)
34W10802058 Whirlpool Mixer Bowl
34W11200218 Whirlpool Grease Filter
34PASTA MAKER PLATES (SNPA)
34FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
34FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
34W11312468 Whirlpool Pour Shelf
34PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
34ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
3467500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
34JUICER (JE)
34WPL ARI20752A5
