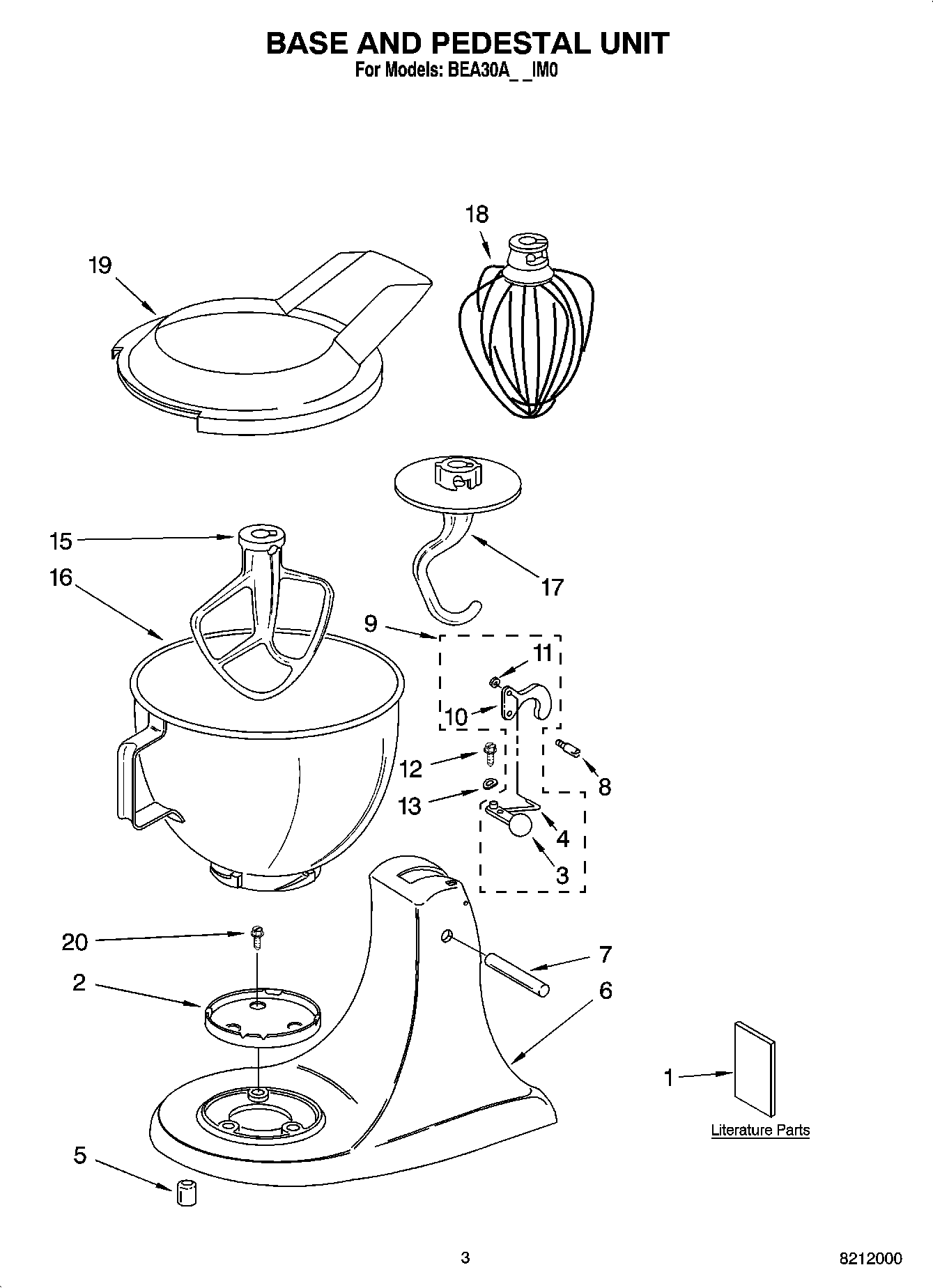

BEA30AZAIM0 02 – BASE AND PEDESTAL UNIT

Products

Position	Product
1	Use & Care Guide
2	WPW10191926 Whirlpool Cap Screw
3	WP9709280 Whirlpool Latch Lever
4	W11232016 Whirlpool Latch Link
5	Foot, Base
6	Pedestal
7	WP16910 Whirlpool Dowel Pin
8	103993 Whirlpool Screw
9	WP24452 Whirlpool Latch Lever
10	W11246352 Whirlpool Latch Mechanism
11	W11218705 Whirlpool Washer Assembly
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
15	WPW10672617 Whirlpool Stand Mixer Flat Beater
16	W10802058 Whirlpool Mixer Bowl
17	WPW10674618 Whirlpool Dough Hook
18	WP9704329 Whirlpool Wire Whip
19	W11312468 Whirlpool Pour Shelf
20	SCREW
