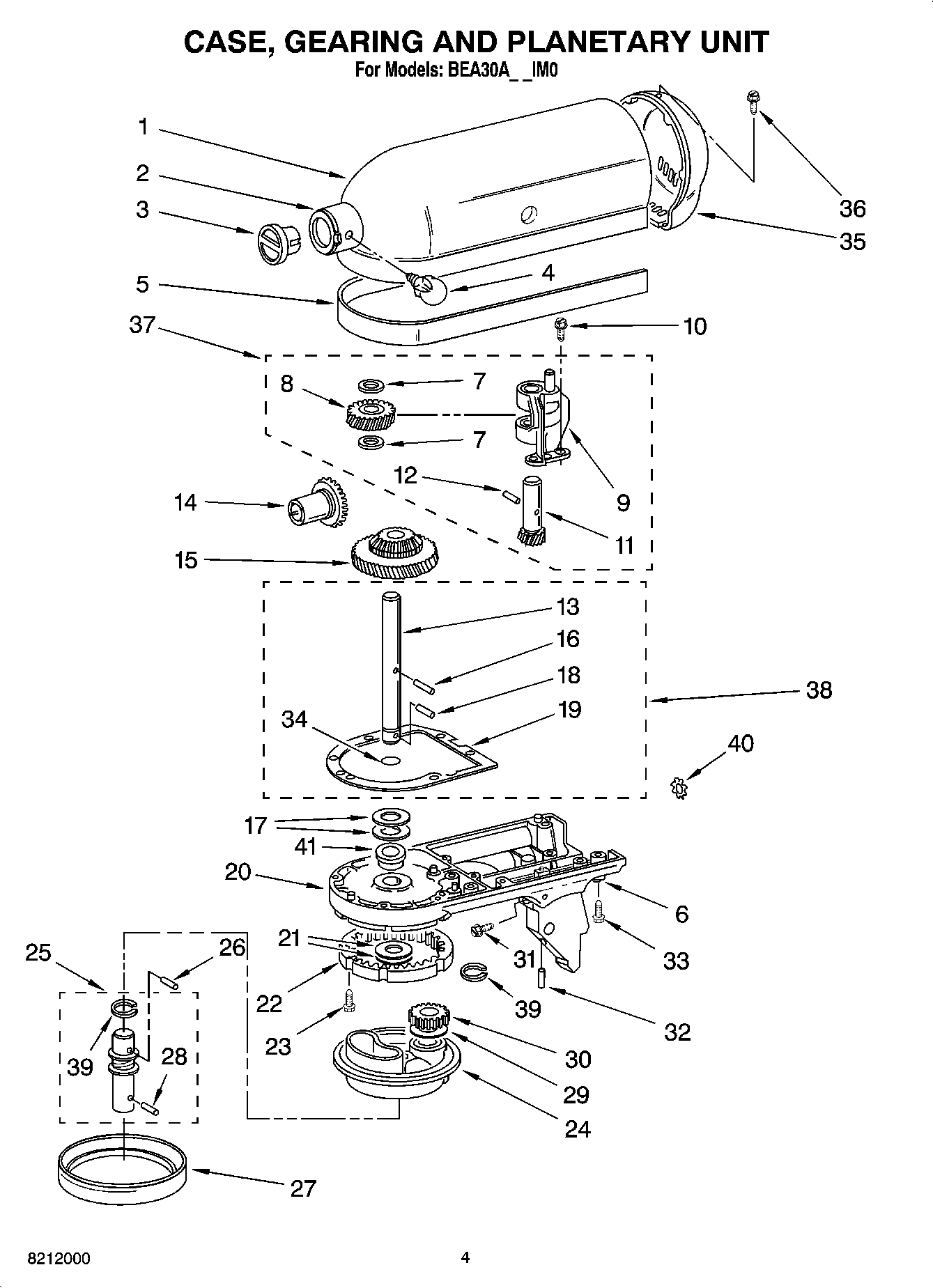

BEA30AZAIM0 03 – CASE, GEARING AND PLANETARY UNIT

BEA30AZAIM0 03 – CASE, GEARING AND PLANETARY UNIT

Written by

in

BEA30AZAIM0 03 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
1Gearcase Motor Housing (Includes Illus 2)
24159709 Whirlpool Ring
3Cap, Attachment Hub
4WP9709194 Whirlpool Black Thumb Screw
5Band, Trim
6WP8533914 Whirlpool Lock
7WPW10323373 Whirlpool Washer
8WPW10112253 Whirlpool Gear Assembly
9W11082541 Whirlpool Bearing
10W11097298 Whirlpool Dishwasher Screw
11Shaft & Pinion
12WP9705444 Whirlpool Pin Groove
13WP240026 Whirlpool Control Shaft
14W11192794 Whirlpool HUB Gear
18WP9705443 Whirlpool Pin Groove
19WP4162324 Whirlpool Case Gasket
20Lower Gear Case
21WPW10323378 Whirlpool Washer
22W11340106 Whirlpool Gear Assembly
23Screw, Special (5)
24Planetary
25WP243368 Whirlpool Agitator Shaft
26Pin (Vertical Center Shaft)
27WP240285 Whirlpool Drip Ring
28W11664709 Whirlpool Groove Pin
29Washer, Shim (.015“ Thk.) (.031“ Thk.)
30W11133645 Whirlpool Pinion Gear
31W11028216 Whirlpool Screw
32WP3400203 Whirlpool Screw
33WP3400025 Whirlpool Screw
34O RING
35Cover, End
36WP241877 Whirlpool Screw
37GEAR, WORM AND BRACKET
384160474 Whirlpool Control Shaft
39WP9703438 Whirlpool Snap Retaining Ring
40W11170663 Whirlpool Washer
41WP16897 Whirlpool Bearing
