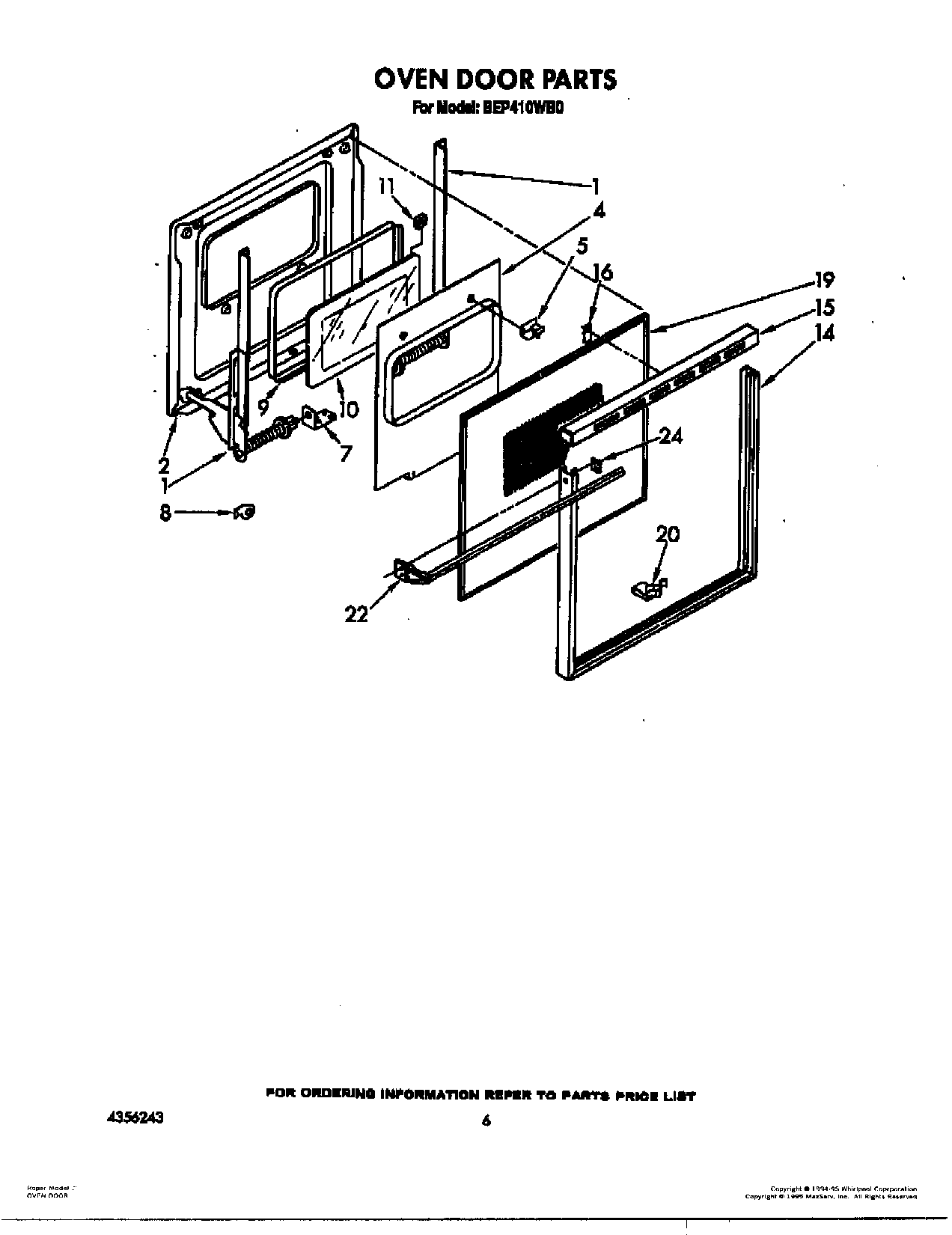

BEP410WB0 04 – OVEN DOOR

Products

Position	Product
1	SCREW
1	Bar, Torsion (Pushnut (2))
1	Bar, Torsion (R.H.)
1	Bar, Torsion (L.H.)
2	Liner, Door 24“
2	panel, top (screw, 10a x 3/8 (3))
2	Nut, Snap-In (2)
4	Baffle
5	Spacer (4)
7	Support, Torsion Bar (2)
8	Stop, Door (L.H.)
8	Stop, Door (Right Hand)
8	Washer, Fiber
8	WP488627 Whirlpool Refrigerator Screw
9	Seal, Window
10	Glass, Inner
11	Channel, Rubber (4)
14	Frame, Door
15	WP90296 Whirlpool Clip
15	Top, Door Frame
16	hold down, glass (2)
19	Glass, Outer
20	clip, glass (10)
20	Screw (3)
22	Handle, Door
22	Screw, Black (4)
24	Screw, 10A x 1/2 (2) (Black)
24	screw (3)
