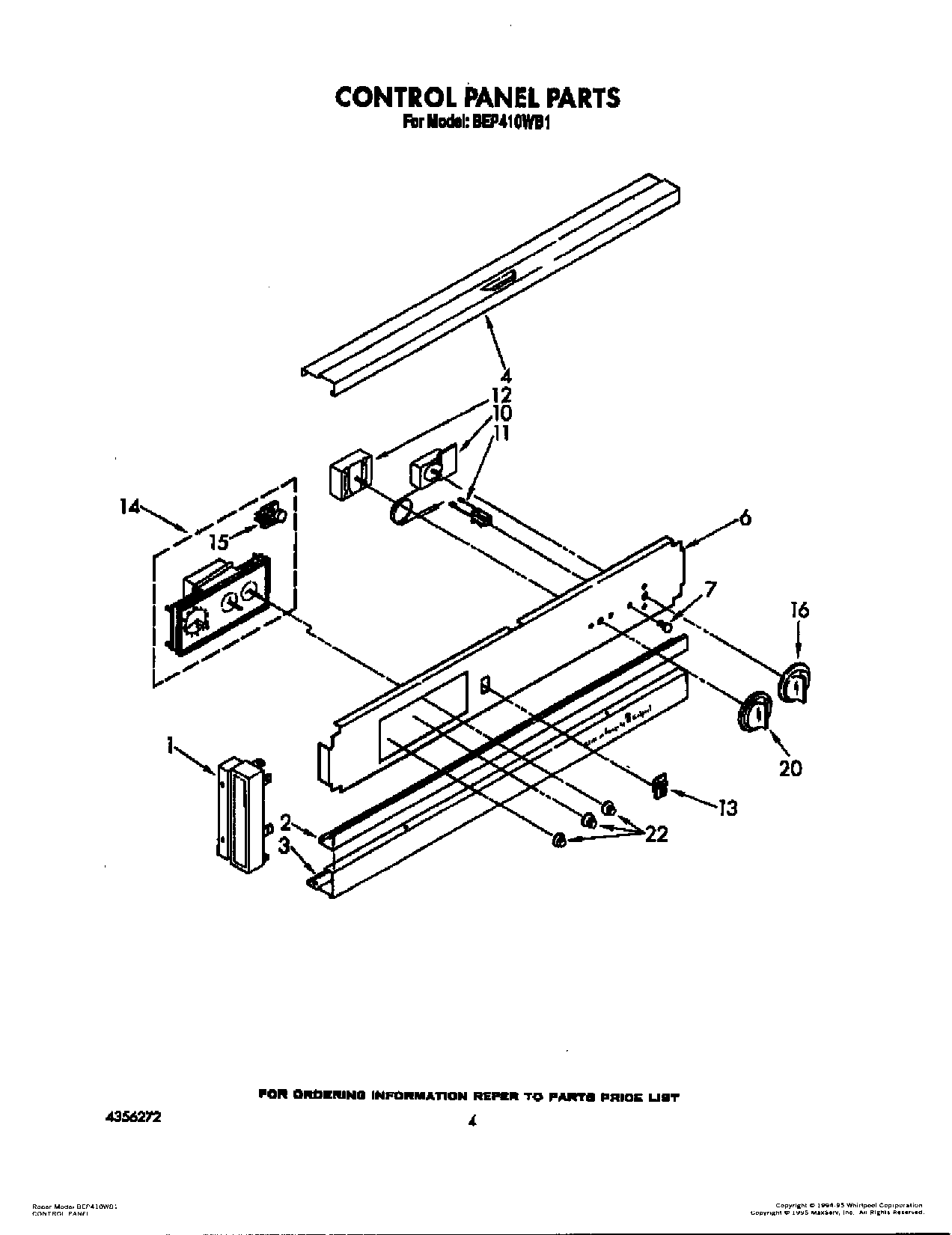

BEP410WB1 03 – CONTROL PANEL

BEP410WB1 03 – CONTROL PANEL

BEP410WB1 03 – CONTROL PANEL

Products

PositionProduct
1End Cap (Right Side)
1End Cap (Left Side)
1Washer
2Trim, Center
3Trim, Bottom
4Trim, Upper
6Panel, Control
7panel, top (screw, 10a x 3/8 (3))
7Lens, Indicator
10screw, 6-32 x 1/4 (2)
10Thermostat
11Light, Indicator (250V)
12WP486579 Whirlpool Air Conditioner Screw
12Switch, Selector (4 Position)
13WP4314961 Whirlpool Lite Switch
14WP965173 Whirlpool Dishwasher Screw
14Timer, Automatic (Includes Illus. 15)
15Motor, Timer
16Knob, Thermostat
20Knob, Selector
22Wire (14 Ga. 200 c Brown)
22Wire (12 Ga. 150 c Black)
2218 Ga. 80~c Rating (Red)
221
22Enamel, Coffee (1 Qt. Uncut)
22Leveler (Thinner) (2oz.)
22Grease
22Knob, Bit Generator (Black)
22Golden Harvest
22Wire (14 Ga. 150 c Orange)
22Wire (14 Ga. 150 c Green)
22WPW10208653 Whirlpool Insulation
22WPL 799832
22511873 Whirlpool Refrigerator Paint
22350942 Whirlpool Spray Paint
22Golden Harvest (Uncut)
2272110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22Almond (Uncut)
22WP72107 Whirlpool Touchup
22799344 Whirlpool Refrigerator Paint
2272017 Whirlpool Appliance Touch-Up Paint White
22350956 Whirlpool Spray Assembly
22FOIL, ALUMINUM OVEN (18“ X 25 )
22Wire, 25` Roll (Black 14 Ga.)
22Wire (14 Ga. 150 c Brown)
22Wire (14 Ga. 150 c Blue)
22242831 Whirlpool Oven Wire
22Touch-Up Oven (1 Oz.)
22Paint, Spray 13 Oz. (Avocado)
22paint, spray 13 oz. (coffee)
22Paint, Touch-Up 1/2 Oz. (Coffee)
2272109 Whirlpool Dacor Avocado Touch-Up Paint
22285006 Whirlpool Spray
22Wire, 25“ Roll (White 14 GA.)
22Wire, 25` Roll (Red 14 Ga.)
22350930 Whirlpool White Spray Paint
