BES430WB0 03 – OVEN DOOR

BES430WB0 03 – OVEN DOOR

Written by

in

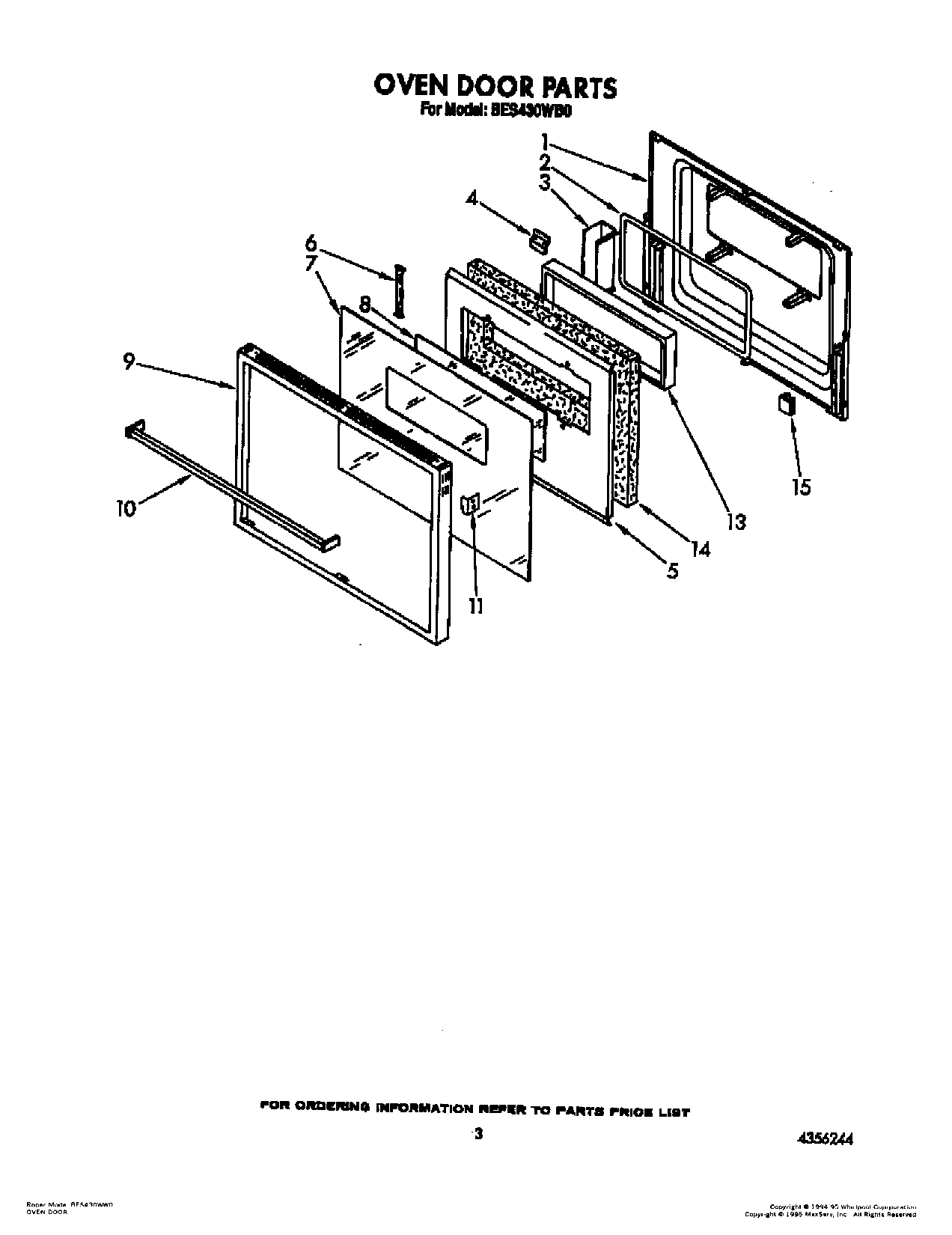

BES430WB0 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Retainer, Insulation
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door (White)
7	Glass, Door (Black)
7	clip, glass (10)
7	Screw, 10A x 1/2 (2) (Black)
8	Glass, Reflective
9	Frame, Door (White)
9	Frame, Door (Black)
10	Handle, Door
10	White
11	Clip, Handle (2)
11	Screw (4)
12	Retainer, Glass
13	Window Package
14	Insulation, Door
15	Bumper, Door Glass
